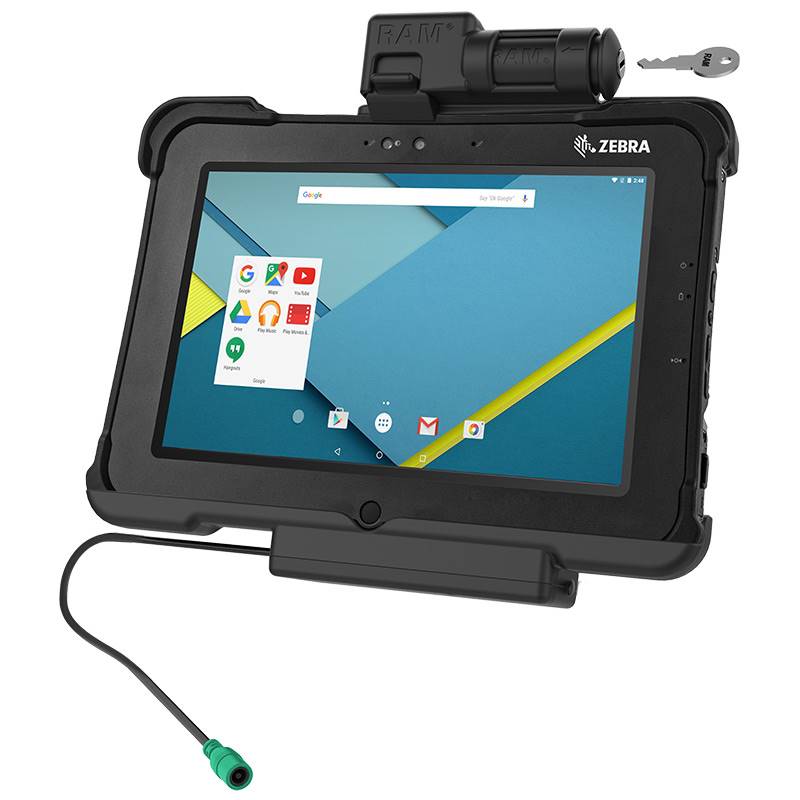

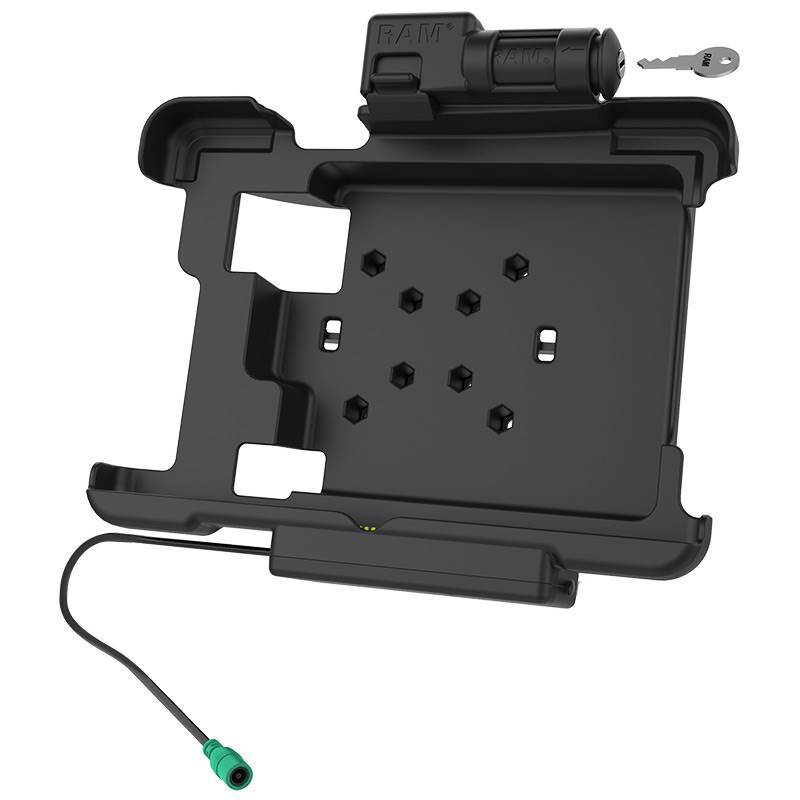

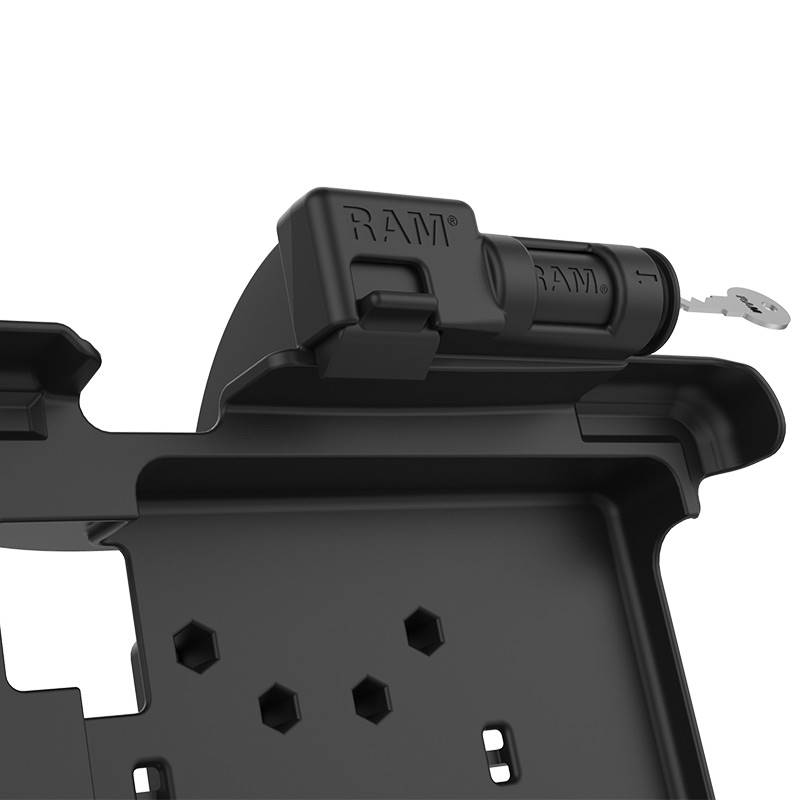

GDS Key Locking Powered Dock for Zebra

Featuring GDS Technology for charging
capabilities, the GDS Vehicle Dock for Zebra XSLATE L10 allows you to keep the device charged
through the pogo pin contacts when the device is docked—power is provided by connecting to the dock's
5.5mm DC power jack. The dock also allows the tablets scanning function to work through the cutout on
the back which also accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery. This
vehicle dock is compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern
bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a
step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM
2-hole diamond base for additional device mounting such as a phone, or other handheld device. An
included optional accessory bracket will allow you to connect RAM 2-hole diamond bases for
device mounting and features a cable management system.

FEATURES

Spring-loaded powered dock provides charging capabilities for the Zebra XSLATE L10 via DC 5.5mm power jack

When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as scanner, hand strap, kickstand and extended battery bracket; tablet scanning works while tablet is docked

Compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability

Backed by a 3-year warranty

Hardware Included
(1) Side bracket for accessory mounting and strain relief (4) #8-32 x 5/8” Machine
Screws (2) #8-32 x 1/2” Machine Screws (6) #8-32 Nylock Nuts (4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts (4) Small Cable Ties

Hole Pattern
75 x 75mm VESA 4-Hole AMPS: 1.181 INCHES x 1.496 INCHES

Materials
High strength composite

Packaging Type
Poly Bag

Input Connector
5.5mm DC Connector

Warranty Status
3 year warranty
