RAM Form-Fit Powered Dock for Zebra TC7

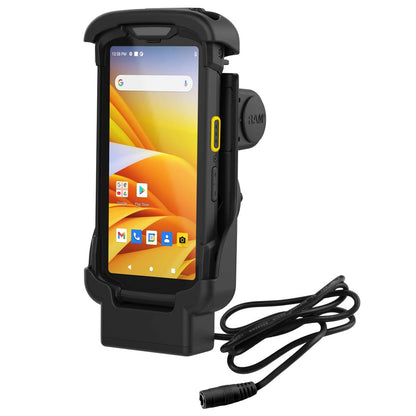

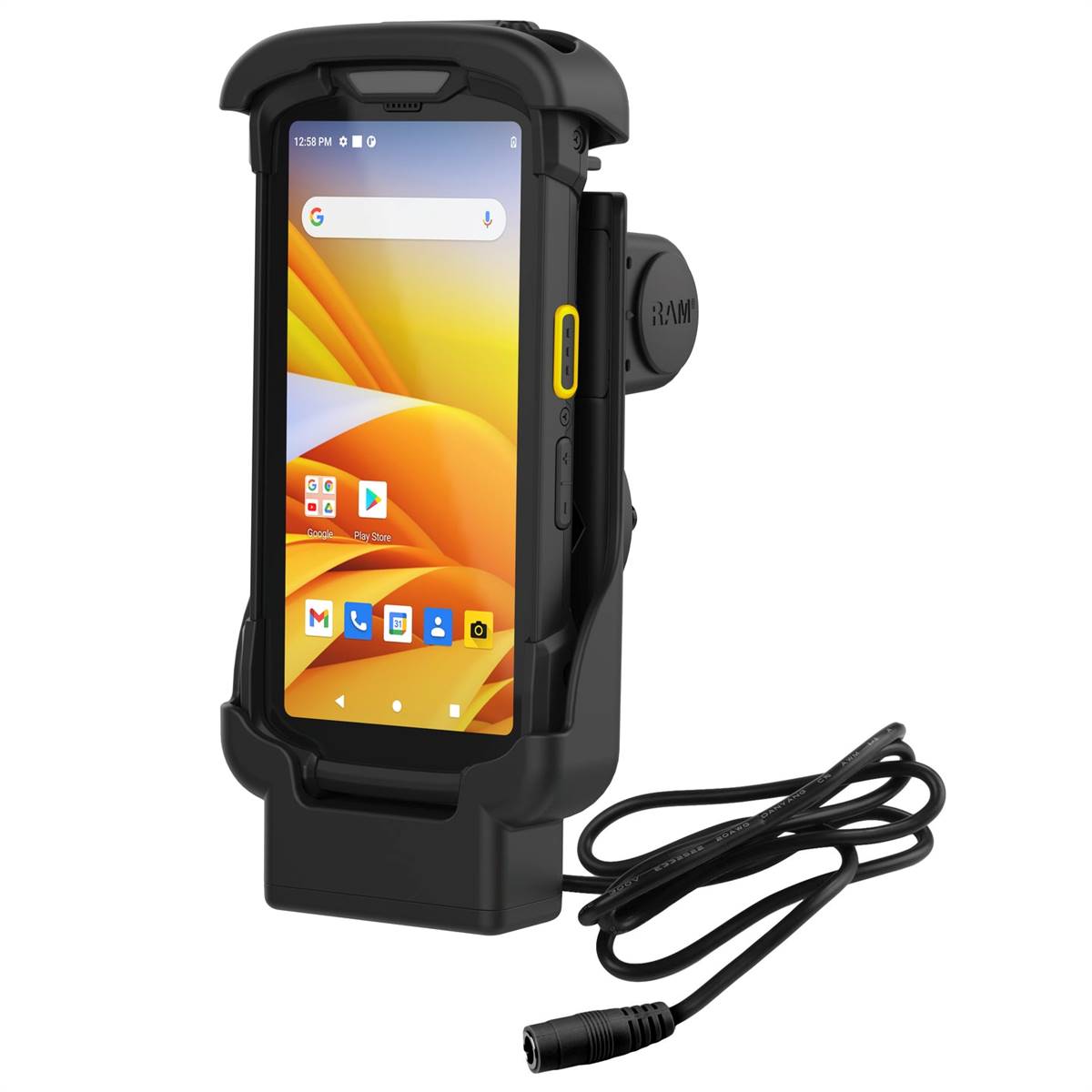

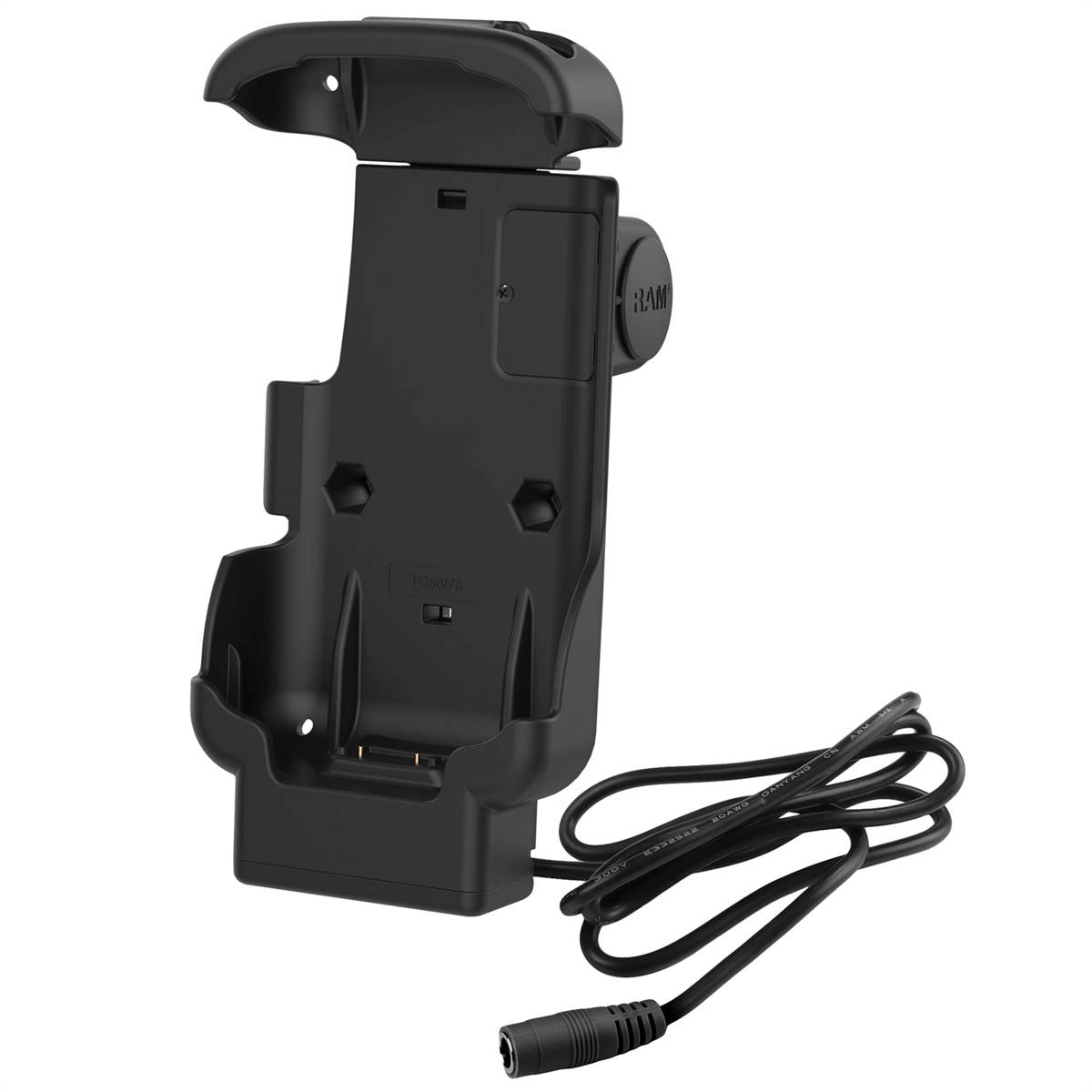

This spring-loaded, form-fit, powered dock (RAM-HOL-ZE17-1U) allows you to secure the Zebra TC73 and the TC78 rugged handheld PC. Power to the device is delivered via a 1.2m long female 5.5mm DC barrel connector. This dock includes an integrated stylus holder that snaps your stylus into place while not in use, and will accommodate the Zebra hand strap. Complete your solution by adding a compatible RAM two-hole AMPS pattern diamond bases and a B or C size ball mount, allowing for a wide variety of mounting options (hardware included).

FEATURES

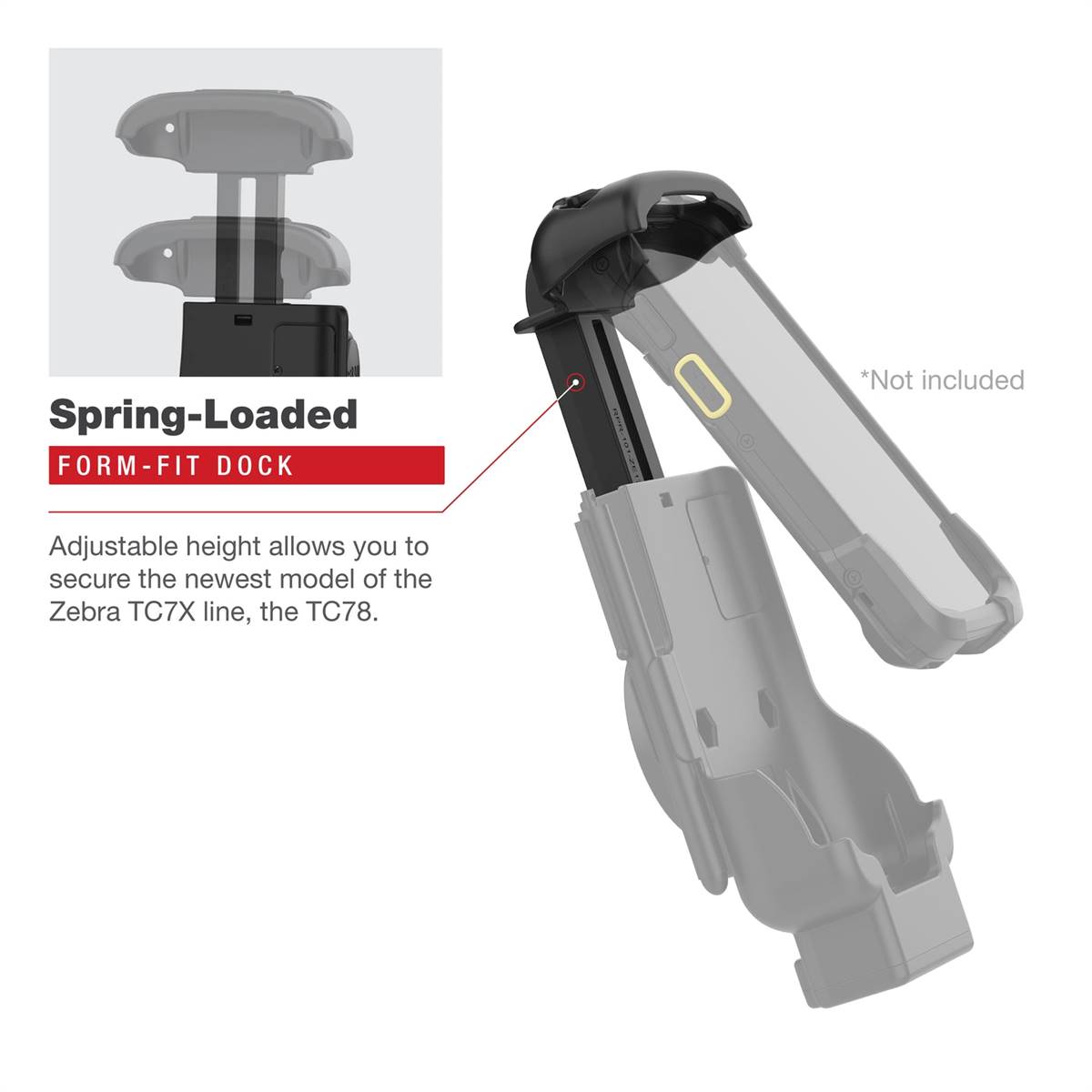

Spring-loaded form-fit dock perfectly secures the Zebra TC73 and TC78 handheld PC; provides power through 1.25-meter long DC connector

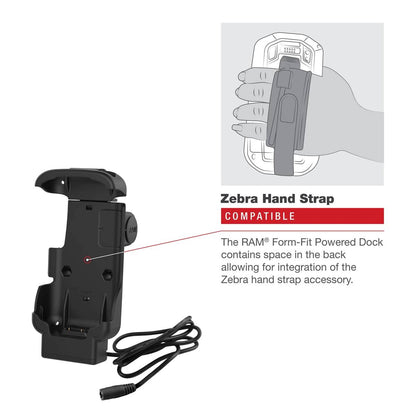

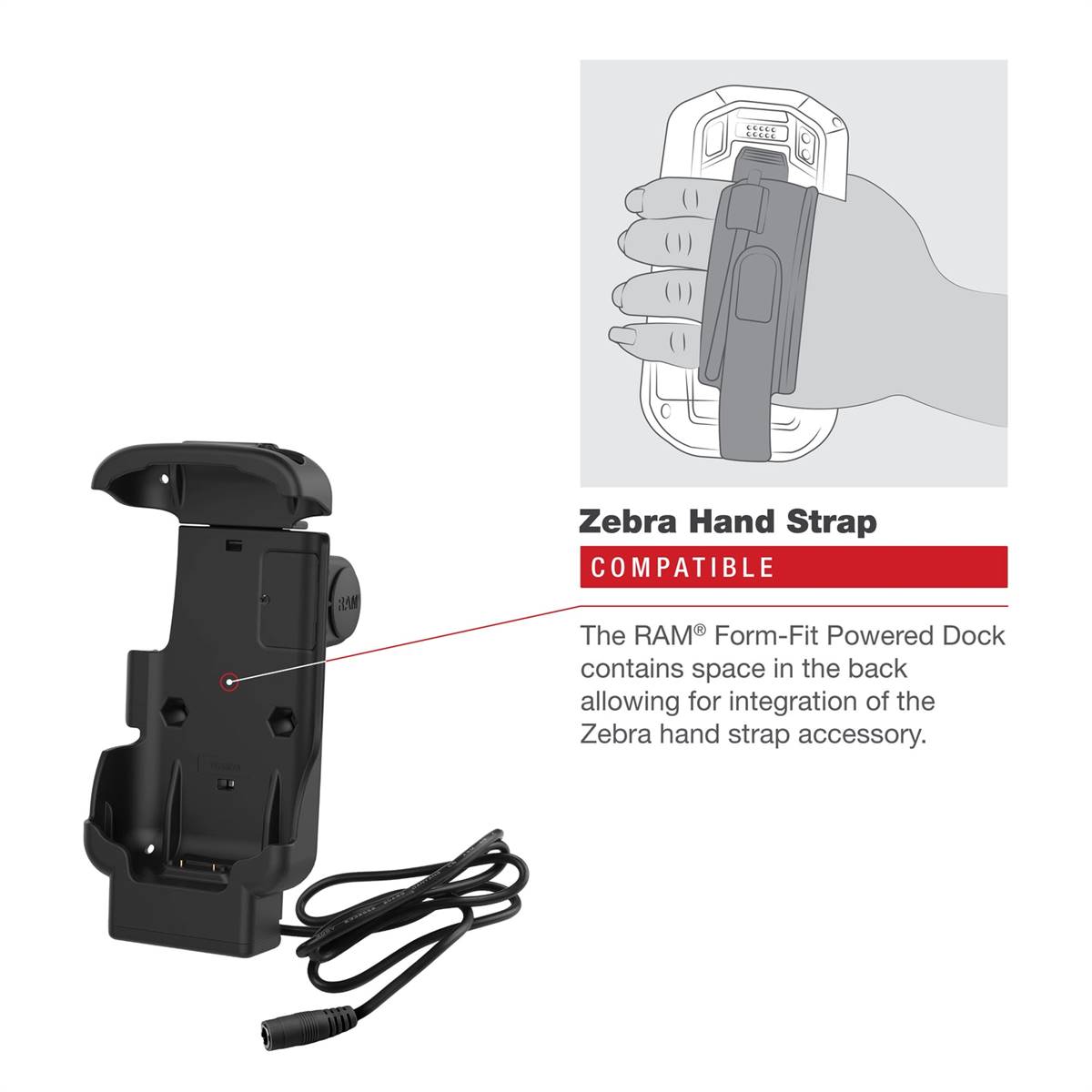

Compatible with the Zebra hand strap accessory

Compatible with B and C size RAM 2-hole diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability

Made of high-strength composites for durability and reliability in the most demanding environments

Backed by a 3-year warranty

hardware included
(2) #8-32 x 3/4" Machine Screws(2) #8-32 x 5/8" Machine Screws(2) #8-32 Nylock Nuts

hole pattern
2-Hole AMPS: 1.912"

materials
High strength composite

packaging type
Poly Bag

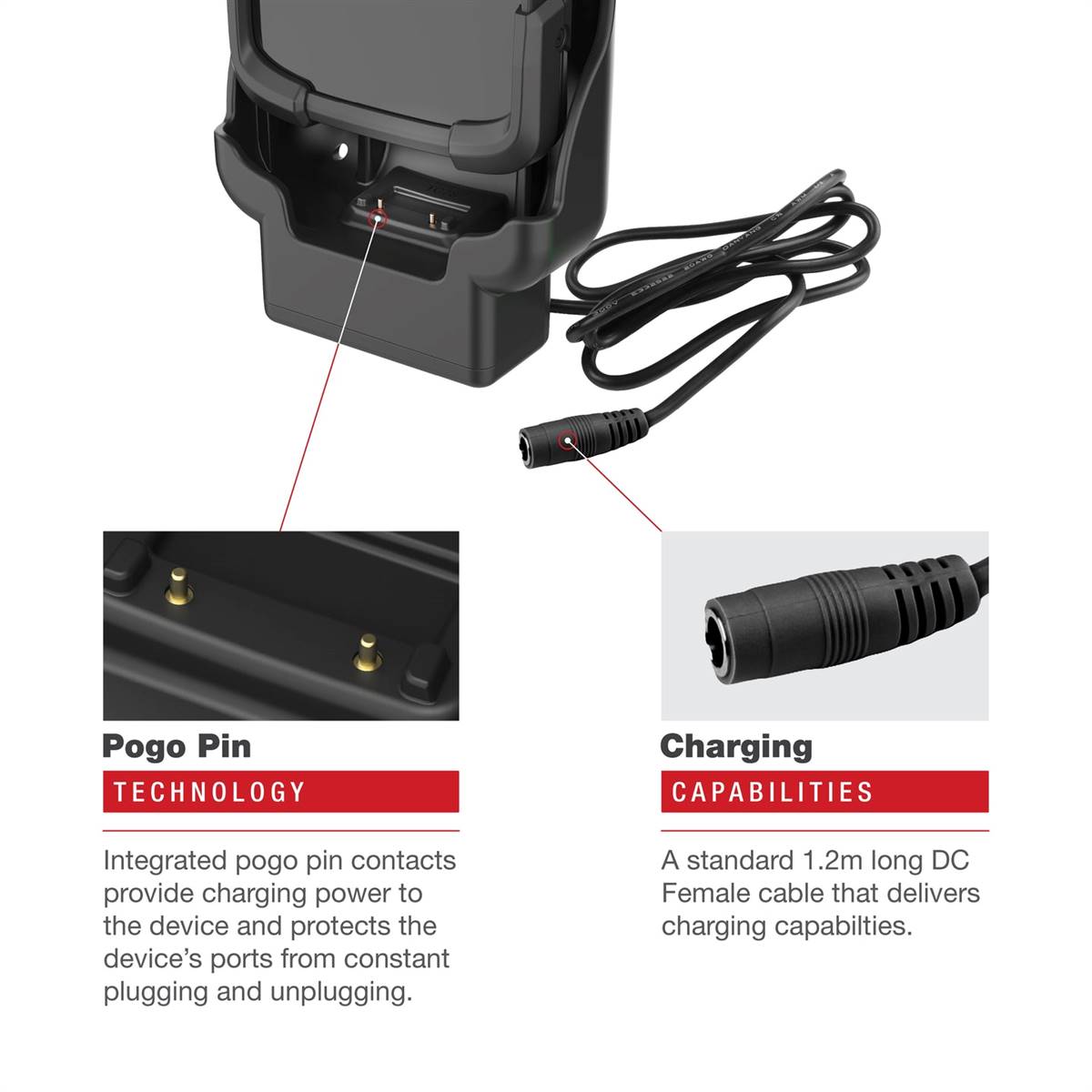

input connector
5.5mm DC Connector

input cable length
1.25 Meters

Warranty
3 year warranty

Weight
0.67 lb
