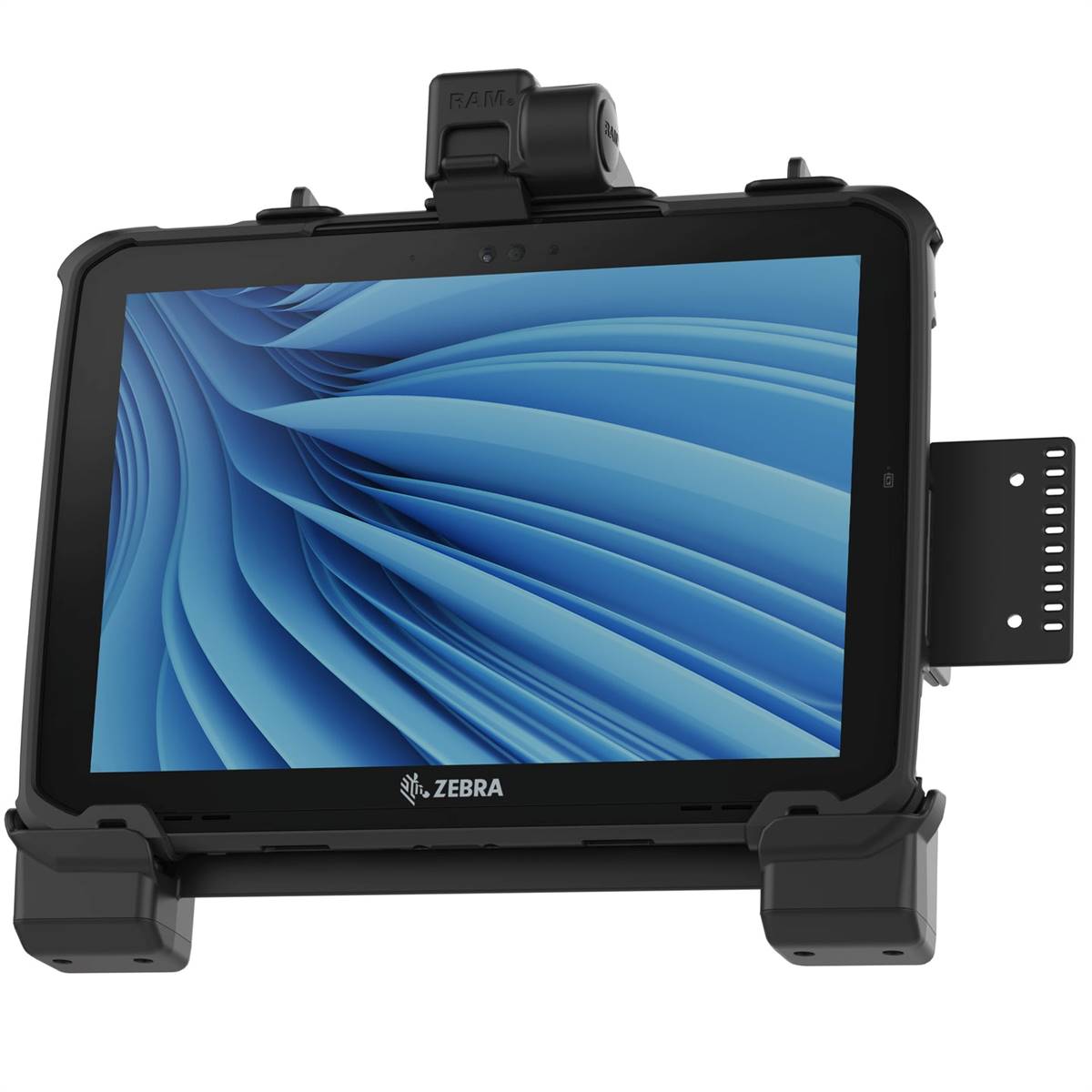

RAM Form-Fit Holder for Zebra ET8x 2-in-1

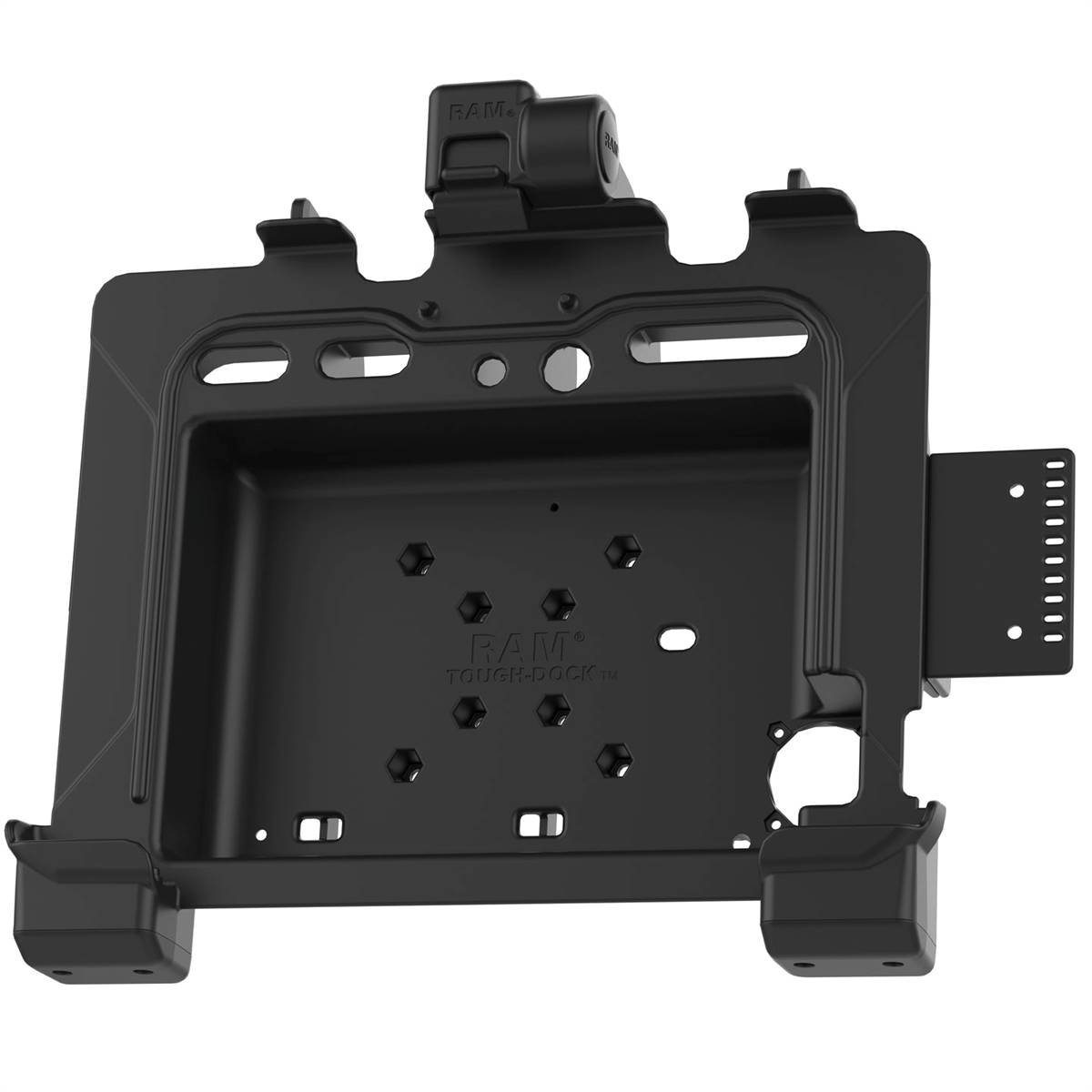

This RAM Dock (RAM-HOL-ZE22U) features a non-powered, non-locking form-fit design specifically for the Zebra ET8x tablets. Made for versatility out in the field, this dock supports the device with or without the Rugged Frame, and accommodates the optional Friction Hinge Rugged Keyboard. Thoughtfully designed, this dock also allows space for tablet add-ons such as the Zebra Expansion Back, GDS Roto-Mag, and GDS Hand-Stand ergonomic accessories. Embrace the weather with options to upgrade your dock with temperature modules. The RAM Temp-Right can be added to regulate heat in extremely cold environments while the RAM Vent-Temp utilizes the vehicle's A/C vents to direct hot or cold air to the ET8x. Take the solution a step further by upgrading to an add-on NFC Repeater module that extends the device's internal NFC reader. Pair this with the docks built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for mounting the NFC Repeater, or any other additional device such as a phone, scanner, or printer.

FEATURES

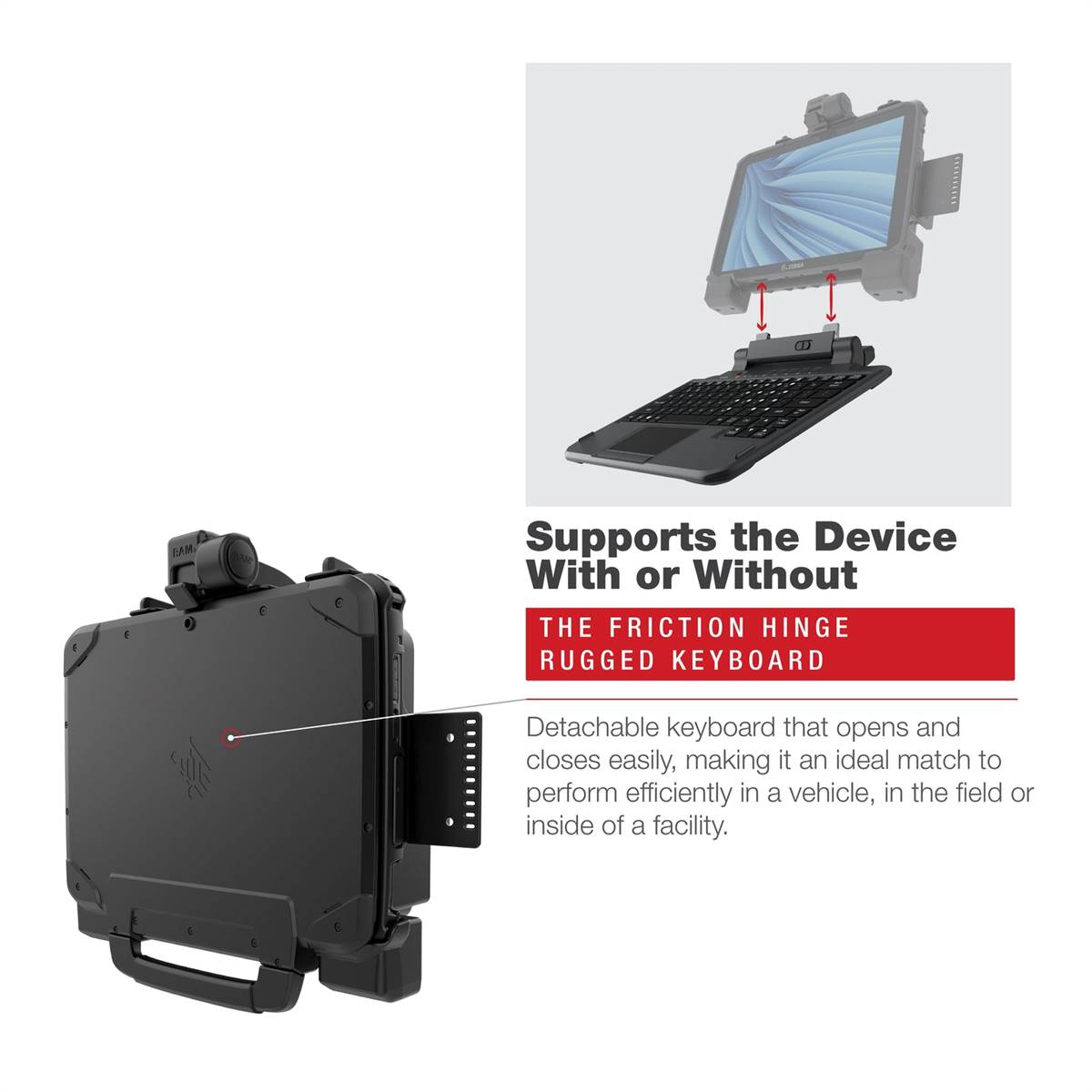

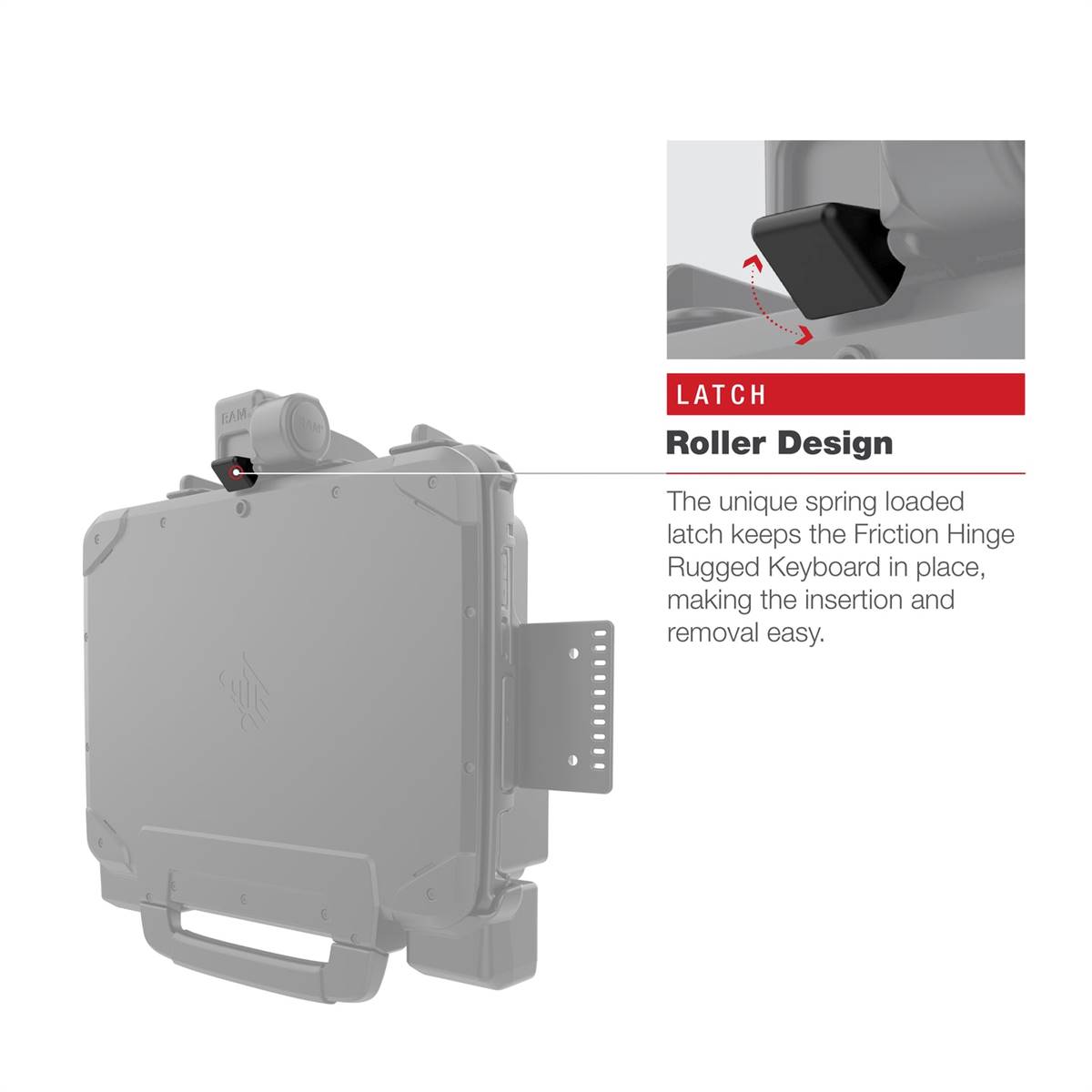

Spring-loaded form-fit holder perfectly secures the Zebra ET8x tablets, with or without Rugged Frame and Friction Hinge Rugged Keyboard

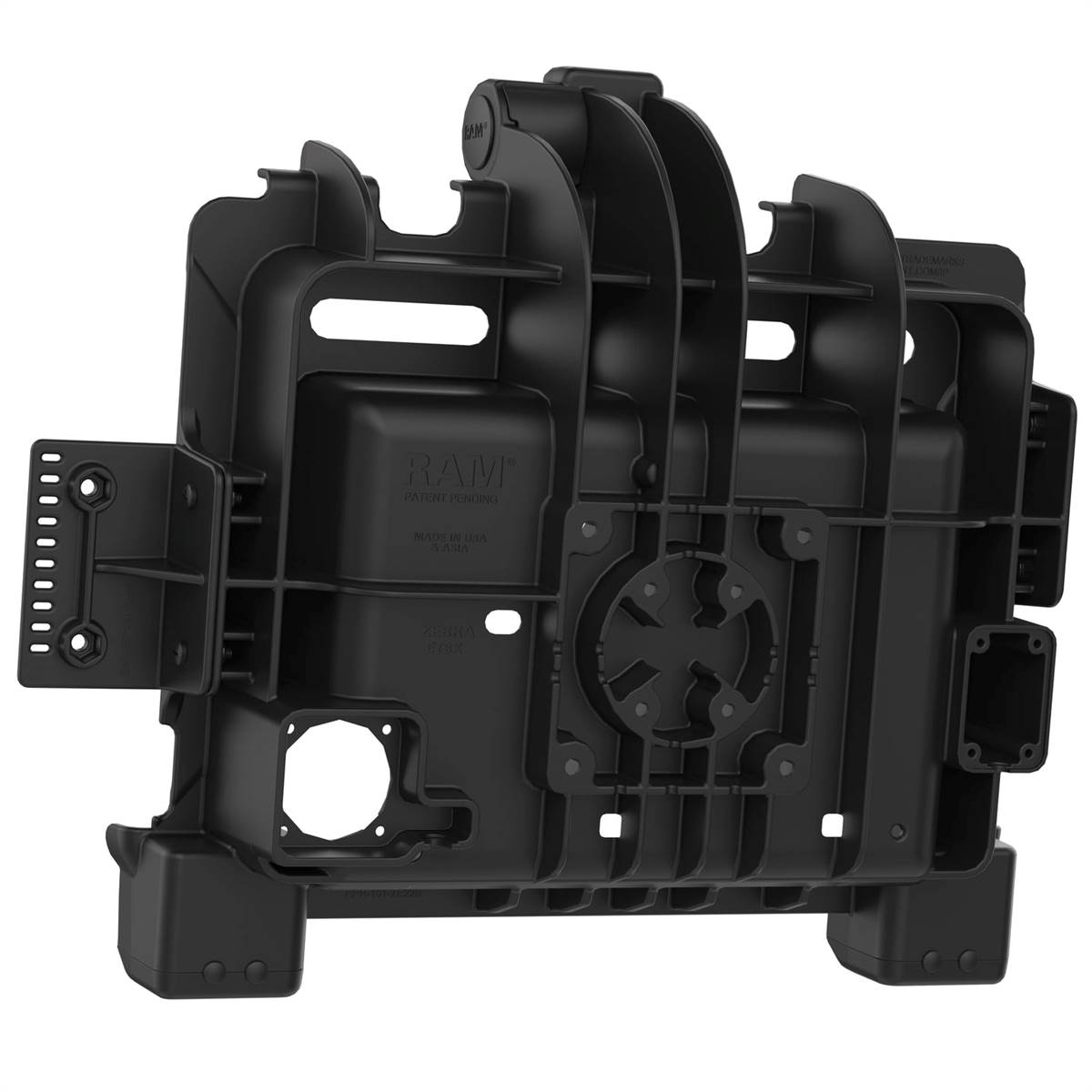

Two separate housings on the back of the dock allow for add-on modules such as the NFC Repeater, and temperature modules RAM Vent-Temp and RAM Temp-Right

Built-in 2-hole accessory mounting plate for additional device mounting such as a phone, scanner, or NFC Repeater

Dock accommodates tablet add-ons such as the Zebra Expansion Back, GDS Roto-Mag, and GDS Hand-Stand accessories

Backed by a lifetime warranty

hardware included
(1) Side bracket for accessory mounting(4) #8-32 x 5/8" Machine Screws(2) #8-32 x 1/2" Machine Screws(6) #8-32 Nylock Nuts(4) #10-24 x 5/8" Machine Screws(4) #10-24 Nylock Nuts(8) 4" Zip Ties(2) 7" Zip Ties

product dimensions
Overall Height: 11.85"Overall Width: 12.75"Overall Depth: 4.36"

hole pattern
75 x 75mm VESA4-Hole AMPS: 1.181" x 1.496"

materials
High strength composite

packaging type
Poly Bag

Weight
2.28 lb
