RAM Pin-Lock Marine Electronic Mount - C Siz
RAM Pin-Lock Marine Electronic Mount - C Siz
Regular price
$68.99 USD
Regular price
Sale price
$68.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
UPC:
793442945229
Mfg Part #:
RAM-S-111U
Availability:
In Stock
Part Number:
RAM-S-111U
Quantity
Couldn't load pickup availability
Share
- Description
- Components

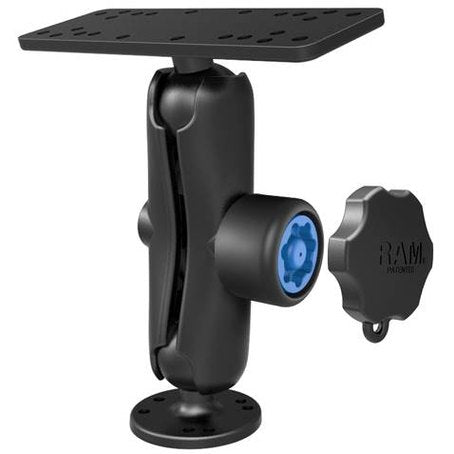

The RAM-S-111U consists of a 2.5" diameter round base, STANDARD LENGTH double socket arm, 6.25" x 2"
rectangle base, RAM mixed combination Pin-Lock security nut and key knob. The 6.25" x 2" rectangle
base is a universal mounting bracket with a selection of mounting hole locations. In certain
applications additional holes may need to be drilled for proper fit with your electronic device.
HARDWARE INCLUDED
(1) RAM Pin-Lock Security Key
PRODUCT DIMENSIONS
Overall Height: 7.35"
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
PLATE SIZE
Top Plate: 6.25" x 2"
Bottom Plate: 2.5"
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
1.45 lbs.
rectangle base, RAM mixed combination Pin-Lock security nut and key knob. The 6.25" x 2" rectangle
base is a universal mounting bracket with a selection of mounting hole locations. In certain
applications additional holes may need to be drilled for proper fit with your electronic device.
HARDWARE INCLUDED
(1) RAM Pin-Lock Security Key
PRODUCT DIMENSIONS
Overall Height: 7.35"
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
PLATE SIZE
Top Plate: 6.25" x 2"
Bottom Plate: 2.5"
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
1.45 lbs.
RAM-202U
RAM-111BU
RAM-201-SU
