RAM Pin-Lock Marine Electronic Mount - D S

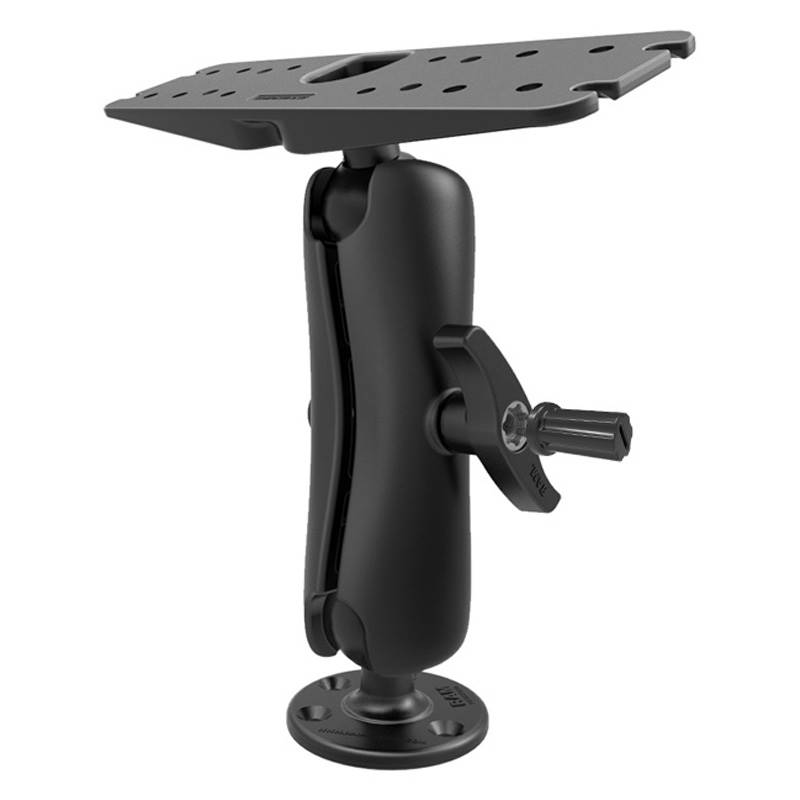

The RAM-S-D-111U consists of a 3.68" diameter round base, STANDARD LENGTH double socket arm, 11" x
3" rectangular base, RAM mixed combination Pin-Lock security nut and key knob. The round base
contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The
rectangle base contains different combinations of pre-drilled holes which will match up to many
electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and
more. RAM Pin-Lock security solutions are designed to withstand the harshest environments where
RAM Mounts are commonly used. With an emphasis on aesthetics and function, RAM security nuts/knobs
are low profile and only add a small amount of additional bulk to your system when compared to the
standard knob included. At a fraction of the cost of currently available keyed locking knobs, the
additional peace of mind and tamper resistance comes at a very affordable price.

HARDWARE INCLUDED
(1) RAM Pin-Lock Security Key
(4) .312" x .187" Shoulder Washers

PRODUCT DIMENSIONS
Overall Height: 11.5"

SOCKET-TO-SOCKET LENGTH
6.88"

HOLE PATTERN
See Drawings

PLATE SIZE
Top Plate: 3" x 11"
Bottom Plate: 3.68" Diameter

BALL/SOCKET SIZE
D Size (2.25")

WEIGHT CAPACITY
6 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

ADDITIONAL INFORMATION
Note: The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole
locations. In certain applications additional holes may need to be drilled for proper fit with your
electronic device.

WEIGHT
4.47 lbs.
