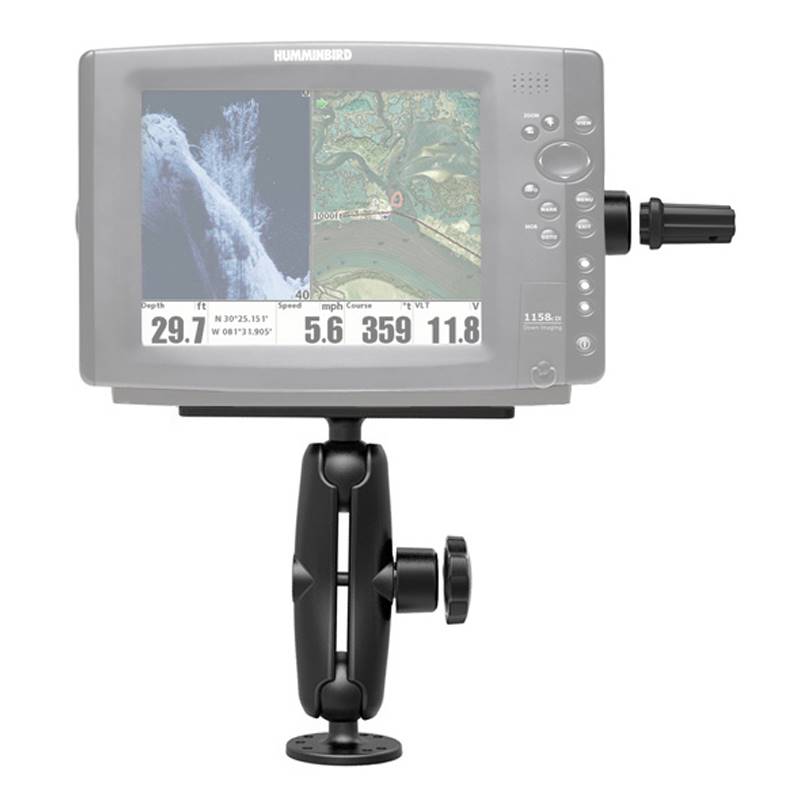

RAM Pin-Lock Marine Electronic Mount with G

The RAM-SG-111U consists of a 2.5" diameter round base, STANDARD LENGTH double socket arm, 6.25" x
2" rectangle base, RAM mixed combination Pin-Lock security nut/knob and key knobs for Gimbal
Brackets. The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting
hole locations. In certain applications additional holes may need to be drilled for proper fit with
your electronic device.

HARDWARE INCLUDED
(2) RAM Pin-Lock Security Keys

PRODUCT DIMENSIONS
Overall Height: 7.35"

SOCKET-TO-SOCKET LENGTH
4.66"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing

PLATE SIZE
Top Plate: 6.25" x 2"
Bottom Plate: 2.5"

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
1.65 lbs.
