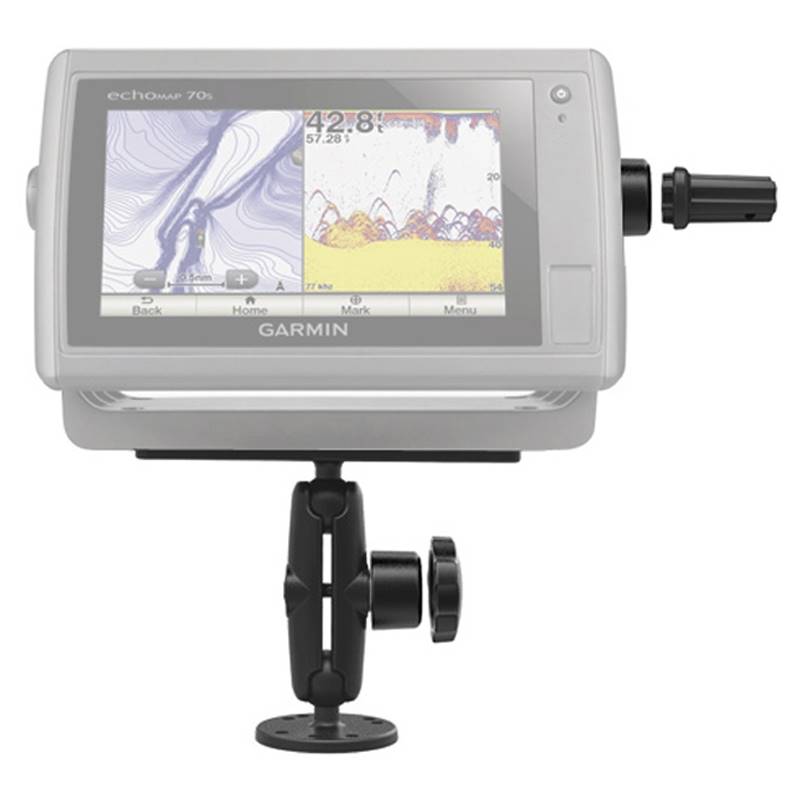

RAM Pin-Lock Marine Electronic Mount with

The RAM-SG-B-111U consists of a 2.5" diameter round base, STANDARD LENGTH double socket arm, 6.25" x
2" rectangle plate, RAM mixed combination Pin-Lock security nut/knob and key knobs for Gimbal
Brackets. The 6.25" x 2" rectangle plate is a universal mounting bracket with a selection of
mounting hole locations. In certain applications additional holes may need to be drilled for proper
fit with your electronic device.

HARDWARE INCLUDED
(2) RAM Pin-Lock Security Keys

PRODUCT DIMENSIONS
Overall Height: 5"

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing

PLATE SIZE
Top Plate: 6.25" x 2"
Bottom Plate: 2.5"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.71 lbs.
