RAM Pin-Lock Marine Electronic Mount with

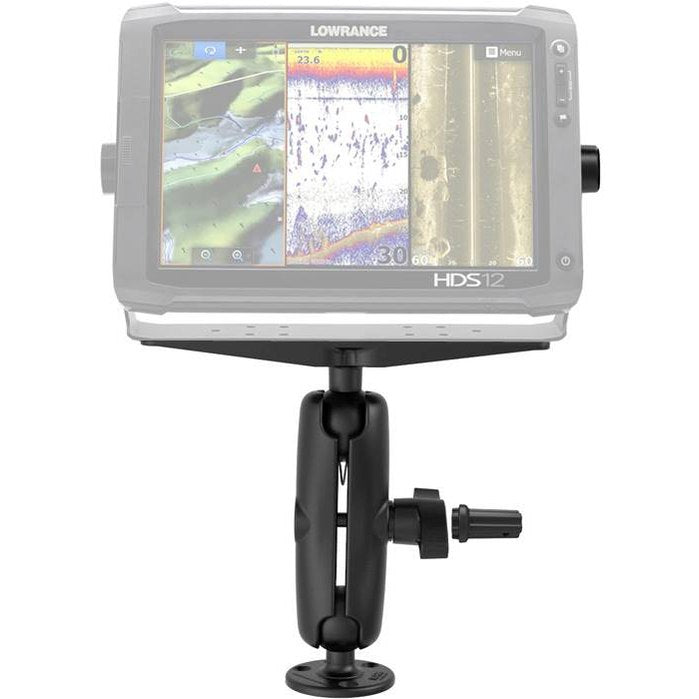

The RAM-SG-D-111U consists of a 3.68" diameter round base, STANDARD LENGTH double socket arm, 11" x
3" rectangular base, RAM mixed combination Pin-Lock security nut/knob and key knob for Gimbal
Brackets. The round base contains pre-drilled holes, including two holes at 180 degrees and three
holes at 120 degrees. The rectangle base contains different combinations of pre-drilled holes which
will match up to many electronic devices and mounts.

HARDWARE INCLUDED
(2) RAM Pin-Lock Security Keys
(4) .312" x .187" Shoulder Washers

PRODUCT DIMENSIONS
Overall Height: 11.5"

SOCKET-TO-SOCKET LENGTH
6.88"

HOLE PATTERN
See Drawings

PLATE SIZE
Top Plate: 3" x 11"
Bottom Plate: 3.68" Diameter

BALL/SOCKET SIZE
D Size (2.25")

WEIGHT CAPACITY
6 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

ADDITIONAL INFORMATION
Note: The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole
locations. In certain applications additional holes may need to be drilled for proper fit with your
electronic device.

WEIGHT
4.47 lbs.
