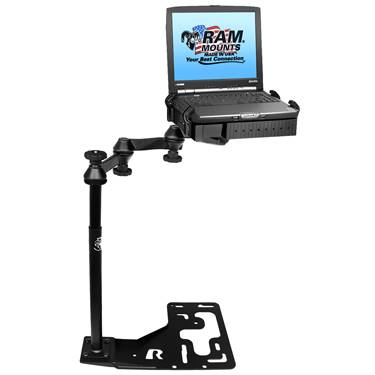

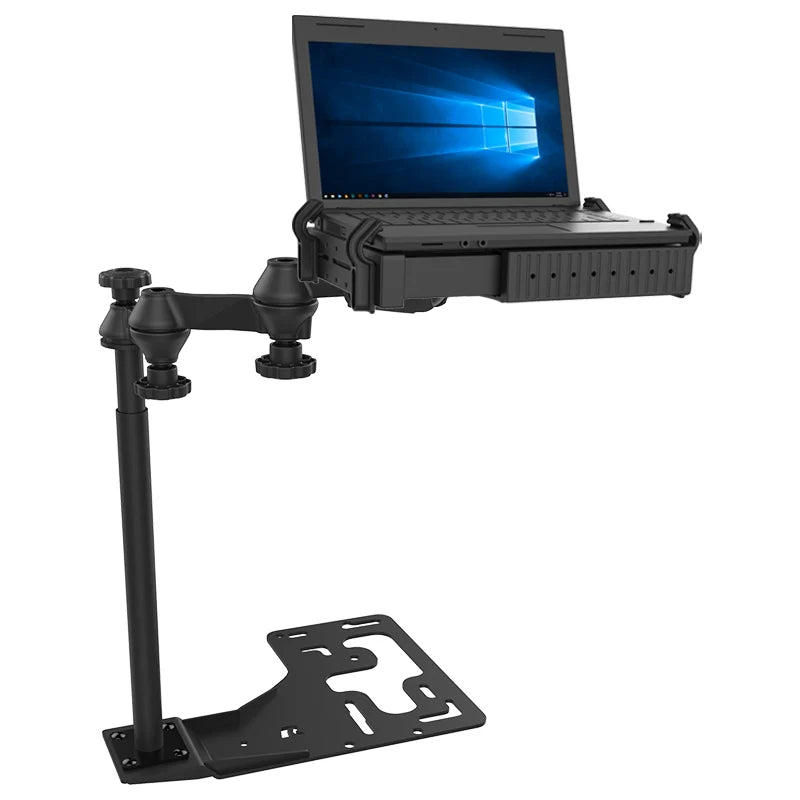

RAM-VB-168-SW1_RAM No-Drill Universal Laptop Mount for

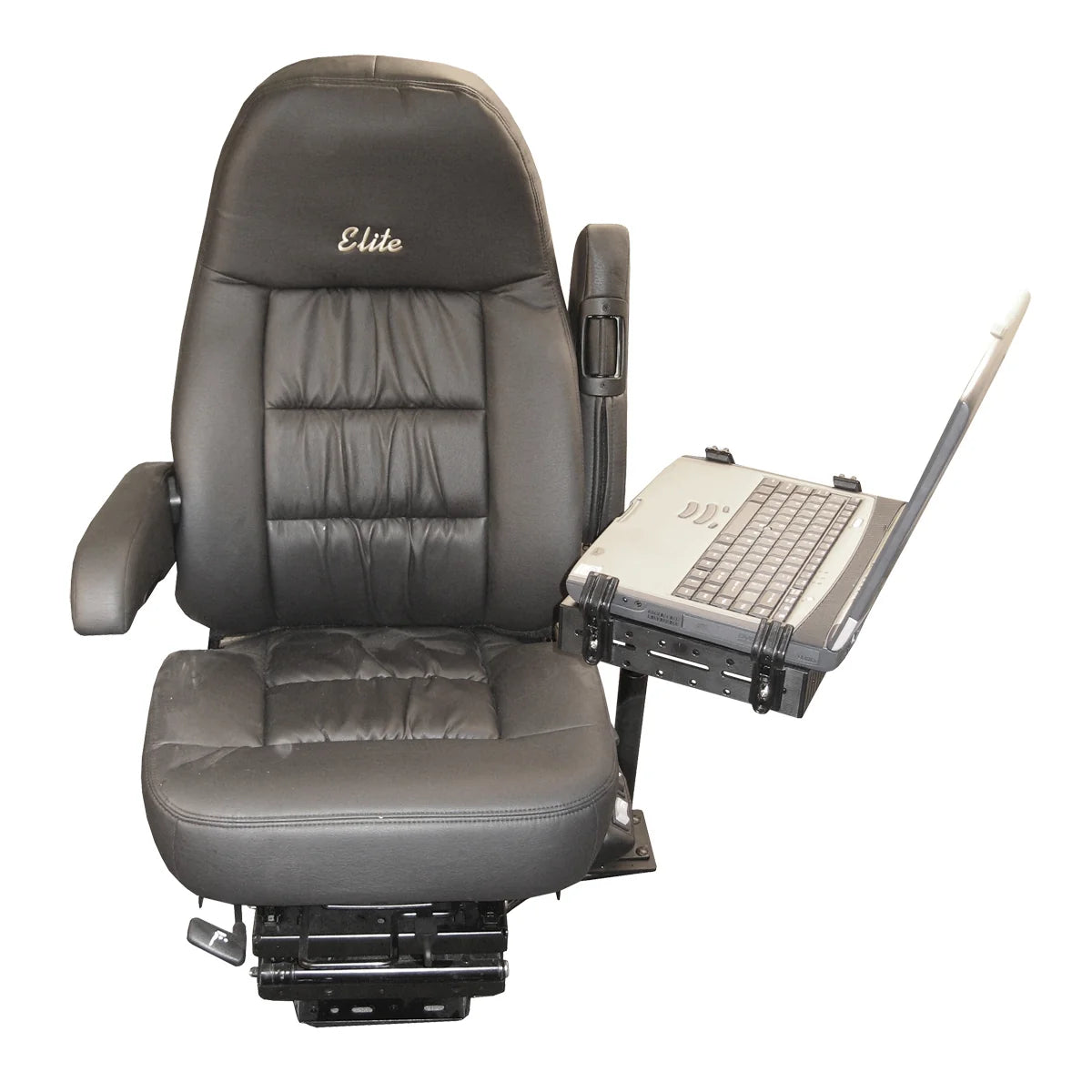

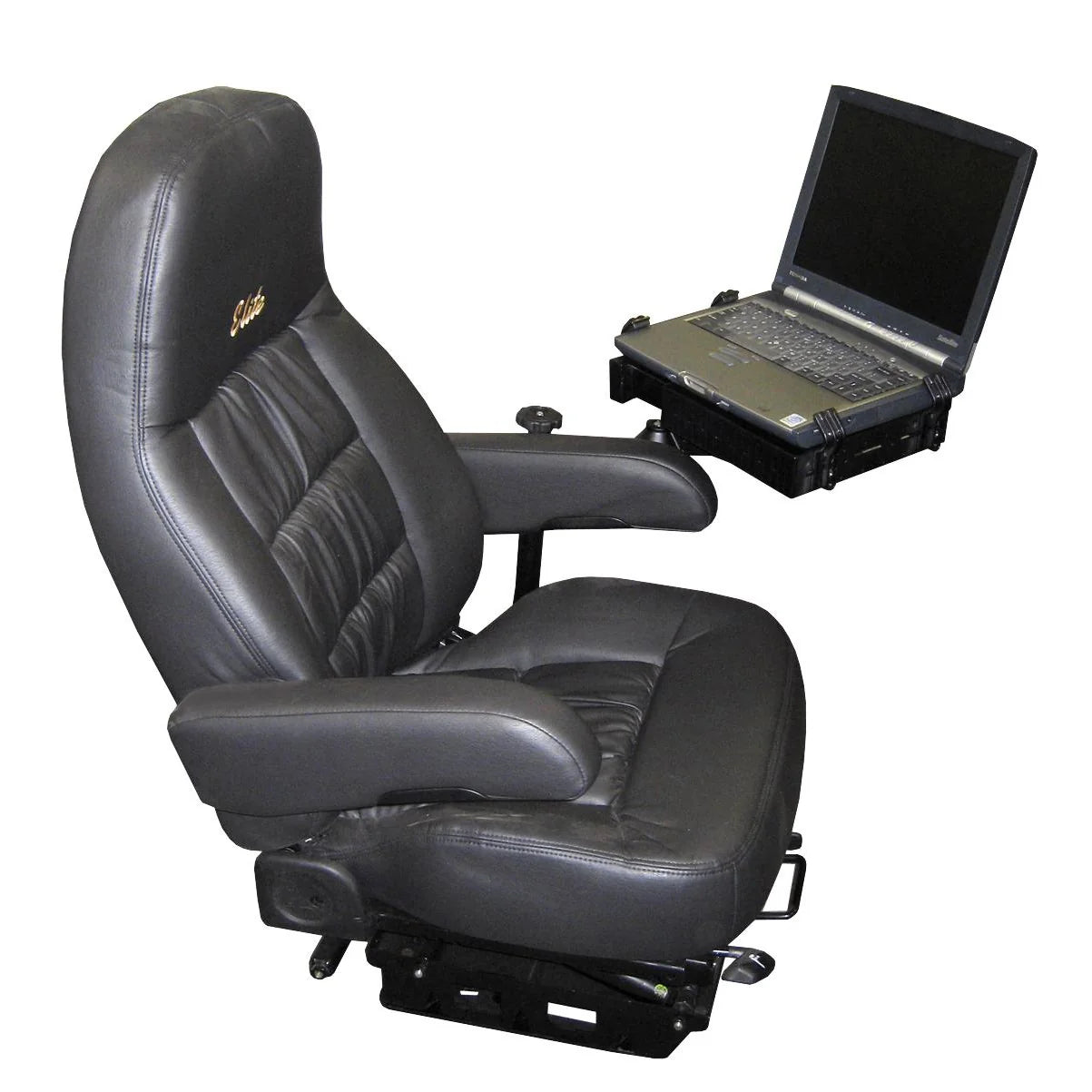

This No-Drill Laptop Stand System installs quickly and easily into the specified vehicles using the
existing hardware of the passenger side seat rails. This configuration provides a telescoping
feature that ranges from 12 to 18 inches. The triple swing arm provides articulation and 18 inches
of reach for passenger and driver access to the mounted device. Patented rubber ball and socket

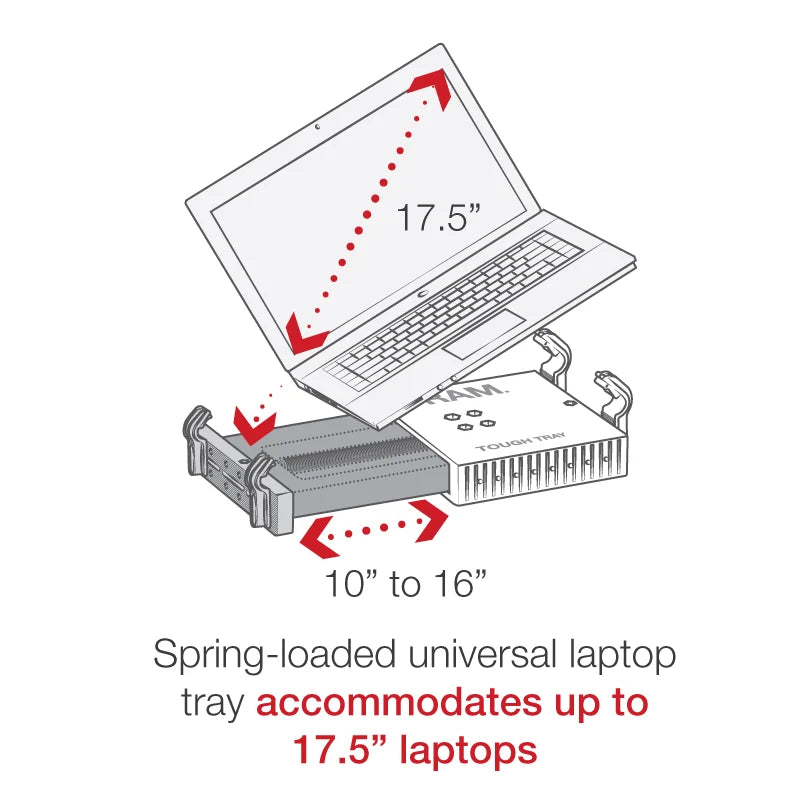

joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray
is spring loaded to accommodate 10" to 16" wide laptops. The tray features four adjustable retaining
arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows
for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives.
A screen support and USB light are also available to accessorize the tray. Hole patterns on
perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other
electronics.

HARDWARE INCLUDED
Assembly Hardware

TRAY DIMENSIONS
Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"

HOLE PATTERN
See Drawing

BALL/SOCKET SIZE
C Size (1.5")

MATERIALS
Powder coated steel
Marine grade-aluminum
High strength composite

PACKAGING TYPE
Box

ADDITIONAL INFORMATION
If the heater box is under the seat, the installer may need to drill holes in the base to
accommodate vehicle mounting holes or studs. Also, the heater box may cause the system to sit higher
than normal. Pole may be cut down by installer to lower kit. This will not void the warranty. May
not work with swivel style seats for big rigs.

FEATURES:

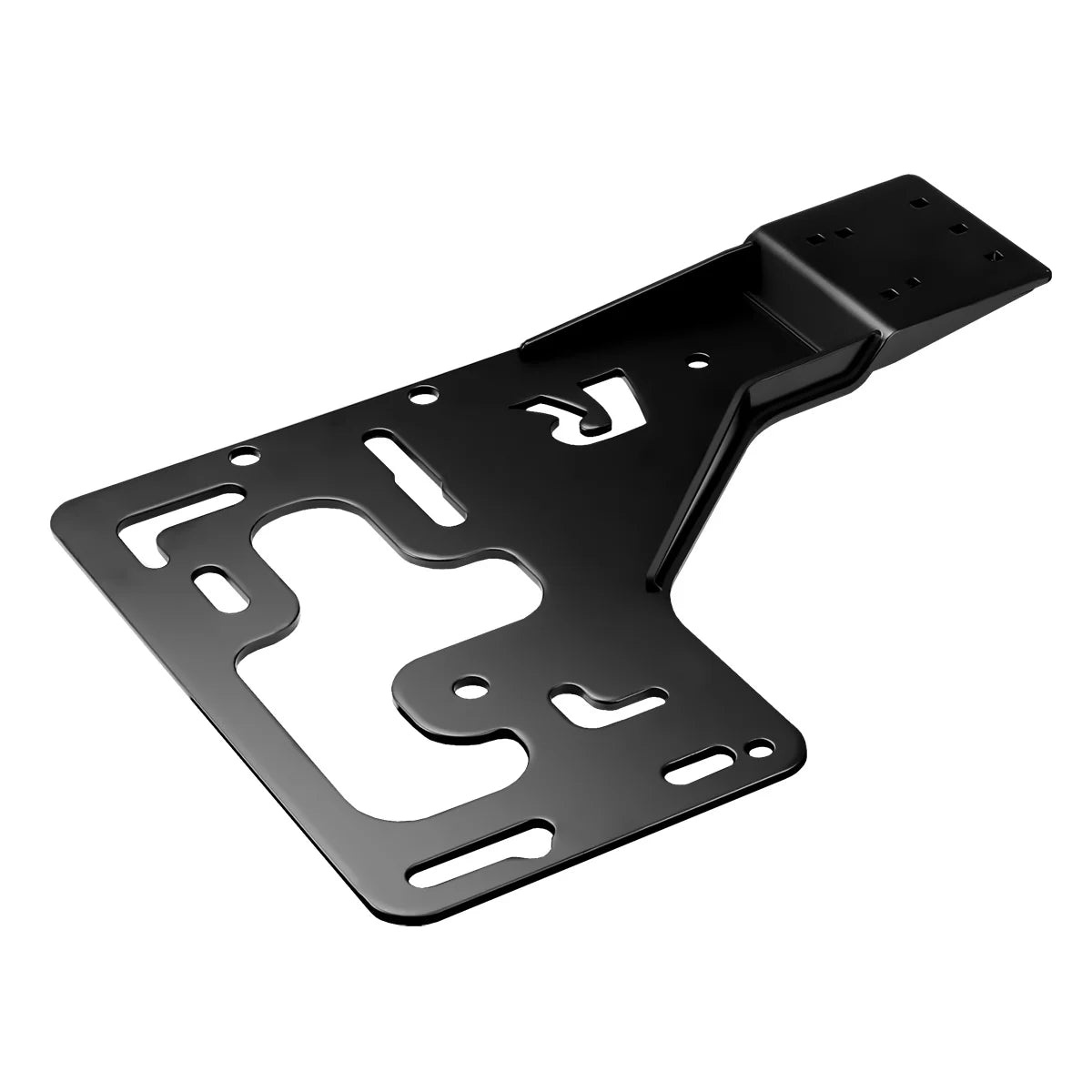

RAM No-Drill base offers low-profile mounting; telescoping pole allows for height adjustments

Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most
laptops

Made of powder-coated steel and marine-grade aluminum

Backed by a lifetime warranty


WEIGHT
24.0 lbs.
