RAM-VB-168-SW2_RAM No-Drill Universal Mount for Heavy D

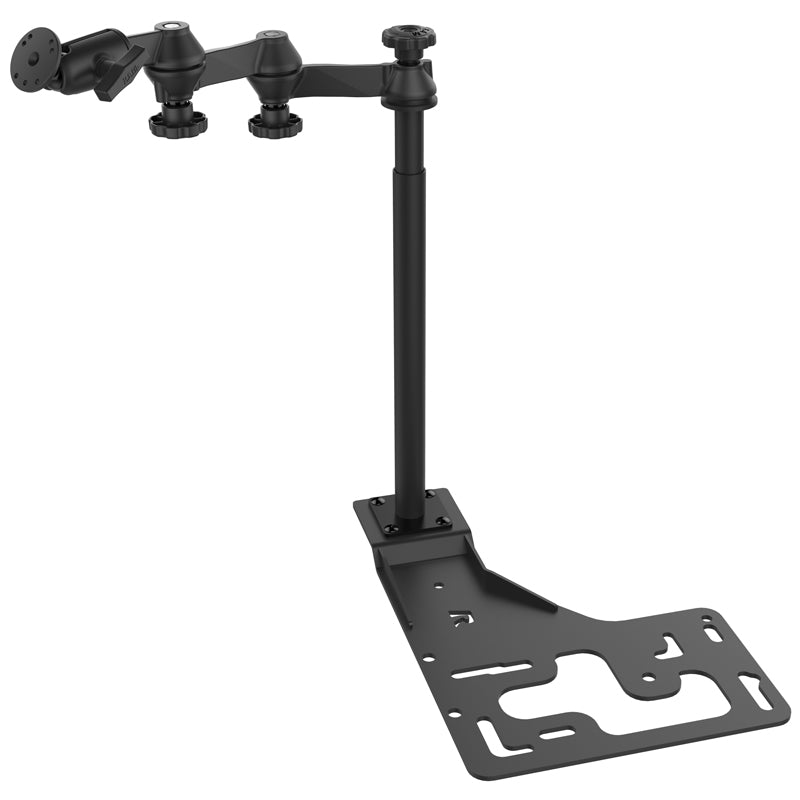

This RAM No-Drill mounting system installs quickly and easily into a range of vehicles using the
existing hardware of the passenger side seat rails. This configuration provides a telescoping
feature that ranges from 12� to 18�. Triple swing arms provide articulation and 18� of reach for
passenger and driver access to the mounted device. The round ball base attached to the end of the
swing arm supports a variety of tablet and laptop holders, while RAM rubber ball and socket
technology provides additional adjustability as well as shock and vibration isolation.

HARDWARE INCLUDED
Assembly Hardware

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Base: See Drawing

PLATE SIZE
2.5" Diameter

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Powder coated steel
Marine grade-aluminum

PACKAGING TYPE
Box

ADDITIONAL INFORMATION
If the heater box is under the seat, the installer may need to drill holes in the base to
accommodate vehicle mounting holes or studs. Also, the heater box may cause the system to sit higher
than normal. Pole may be cut down by installer to lower kit. This will not void the warranty. May
not work with swivel style seats for big rigs.

FEATURES:
RAM No-Drill base offers low-profile mounting; telescoping pole allows for height adjustments

Dual articulating swing arm allows for ideal device placement; compatible with a variety of tablet
and laptop holders

Made of powder-coated steel and marine-grade aluminum

Backed by a lifetime warranty
