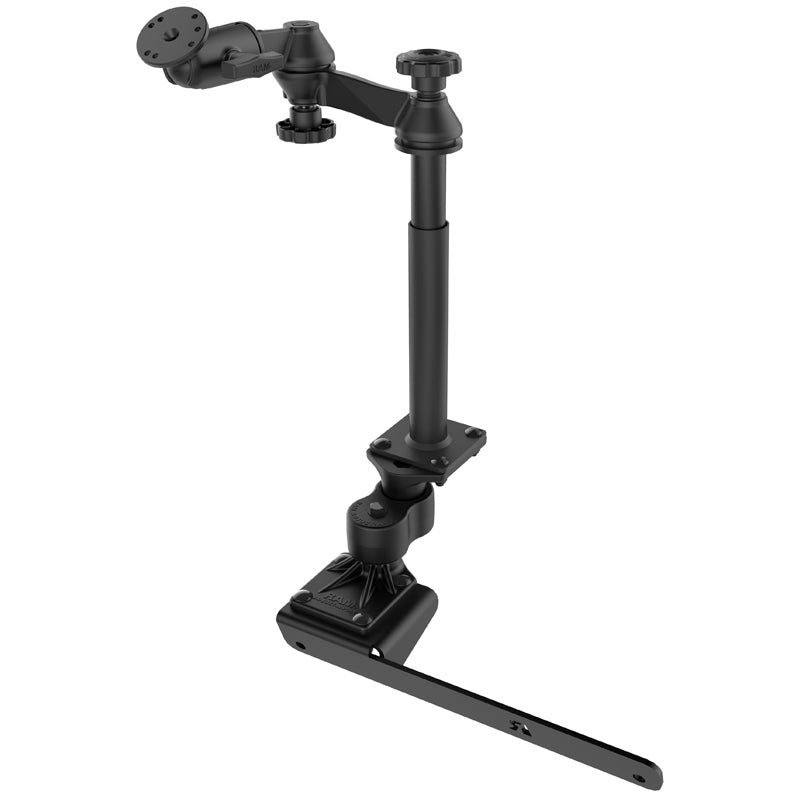

RAM No-Drill Mount for '12-24 RAM 2500-

This RAM No-Drill mounting system installs quickly and easily into a range of Ram 1500 and Ram
2500 trucks using the existing hardware of the passenger side seat rails. This configuration
provides a telescoping feature that ranges from 12� to 18�. Dual swing arms provide articulation and
12� of reach for passenger and driver access to the mounted device. The round ball base attached to
the end of the swing arm supports a variety of tablet and laptop holders, while RAM rubber ball and
socket technology provides additional adjustability as well as shock and vibration isolation.

HARDWARE INCLUDED
Assembly Hardware
(2) M8-1.25 x 60mm Hex Bolts
(2) 3/4" Stand-Offs
(2) 5/16" Flat Washers

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Seat Bolt Distance: 13.25" center to center

PLATE SIZE
2.5" Diameter

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Powder coated steel
Marine grade-aluminum

PACKAGING TYPE
Box

ADDITIONAL INFORMATION
Low profile design limits intrusion on passenger side leg space. Base will not interfere with levers
or factory installed console or 4WD lever. Base designed to accommodate trucks with power take-off
(PTO.)
