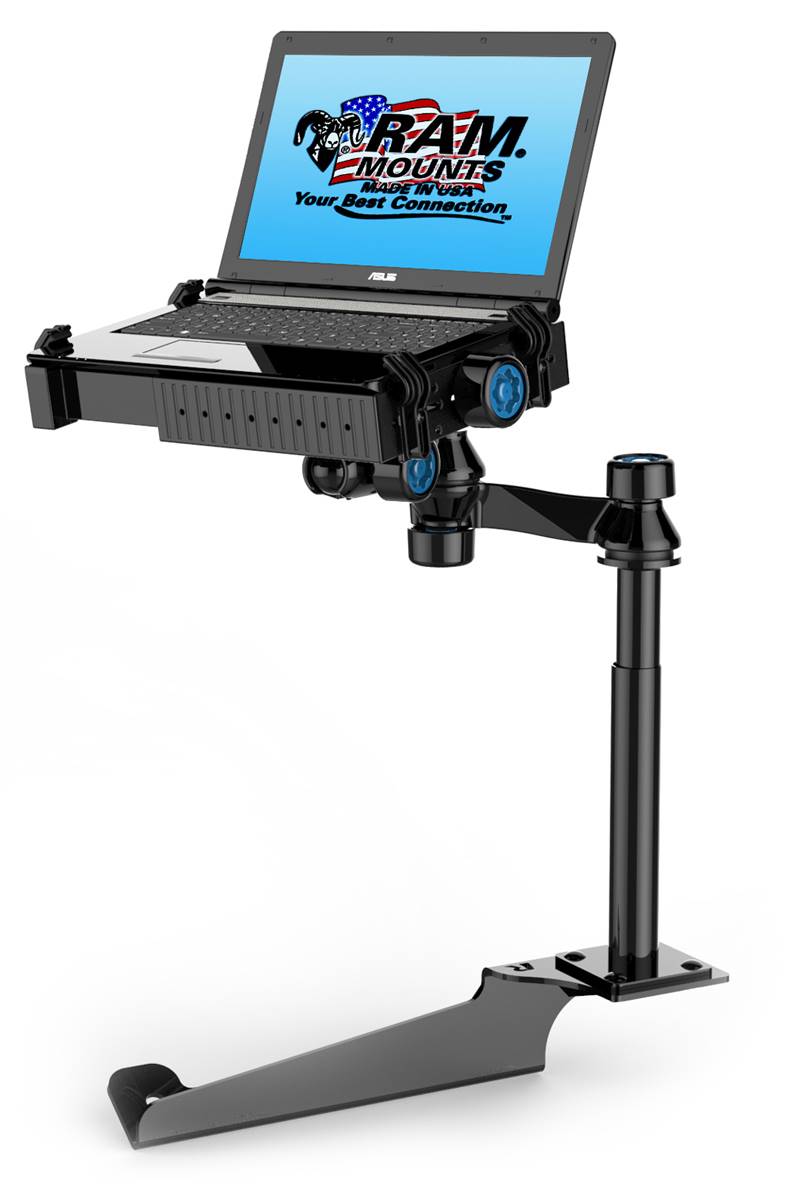

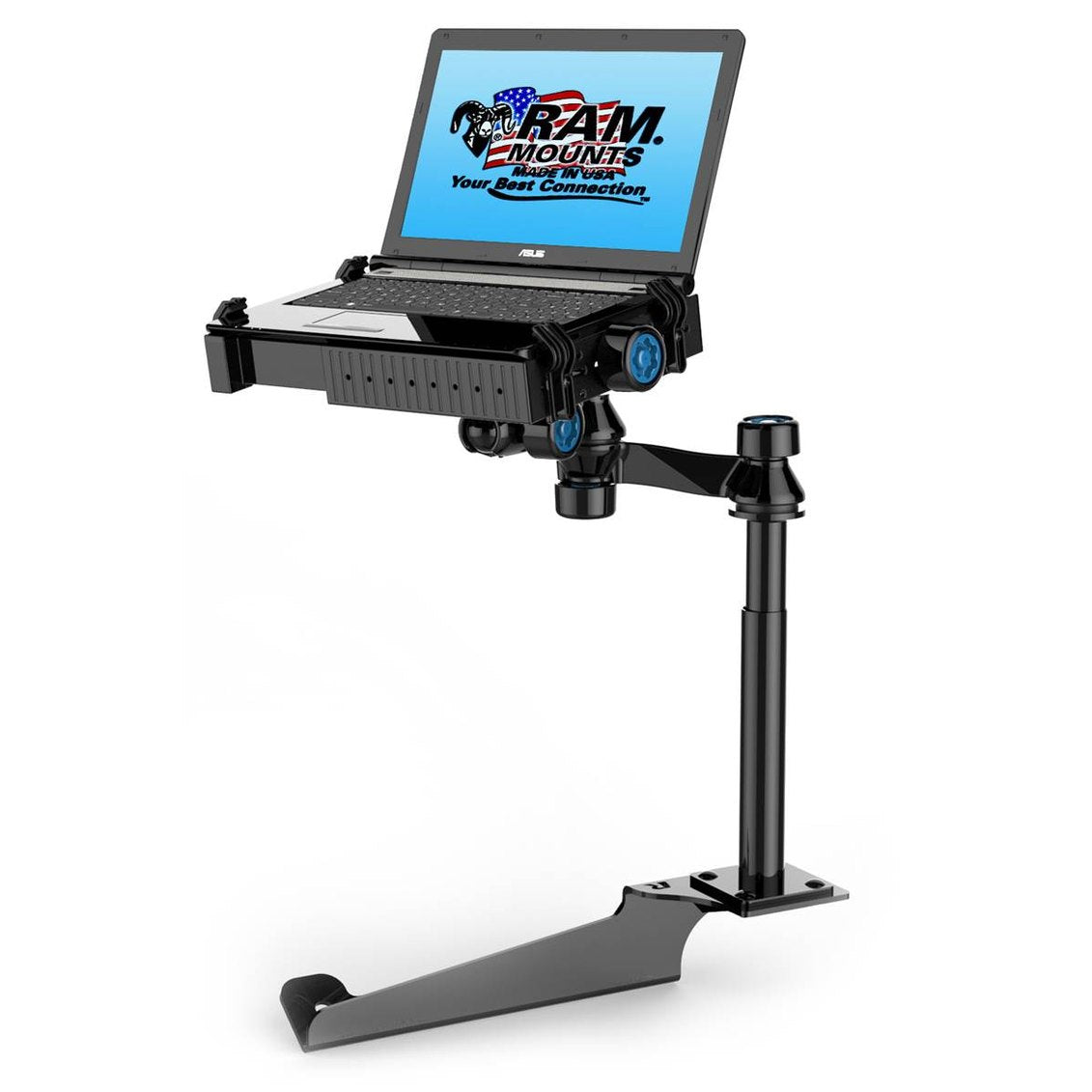

RAM No-Drill Locking Mount for '99-16

This No-Drill Laptop Stand System installs quickly and easily into the specified vehicles using the
existing hardware of the passenger side seat rails. This configuration provides a telescoping
feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of
reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint
provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray is
spring loaded to accommodate 10" to 16" wide laptops & (17" wide screens). The tray features four
adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and
horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not
blocking ports or drives. A screen support and USB light are also available to accessorize the tray.
Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS
or other electronics. The included Pin-Lock security locking system is designed to prevent
tampering and theft of your laptop. With an emphasis on aesthetics and function, the security knobs
are low profile and only add a small amount of additional bulk to your system when compared to the
standard knob included. At a fraction of the cost of currently available keyed locking knobs, the
additional peace of mind and tamper resistance comes at a very affordable price.

HARDWARE INCLUDED
Assembly Hardware
(2) M12-1.75 x 100mm Hex Bolts
(2) M12-1.75 x 60mm Hex Bolts
(2) M12 Lock Washers
(2) 3/8" Stand-Offs
(2) 1" Stand-Offs

TRAY DIMENSIONS
Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"

HOLE PATTERN
Seat Bolt Distance: 11.5" center to center

BALL/SOCKET SIZE
C Size (1.5")

MATERIALS
Powder coated steel
Marine grade-aluminum
High strength composite

PACKAGING TYPE
Box

WEIGHT
17.0 lbs.
