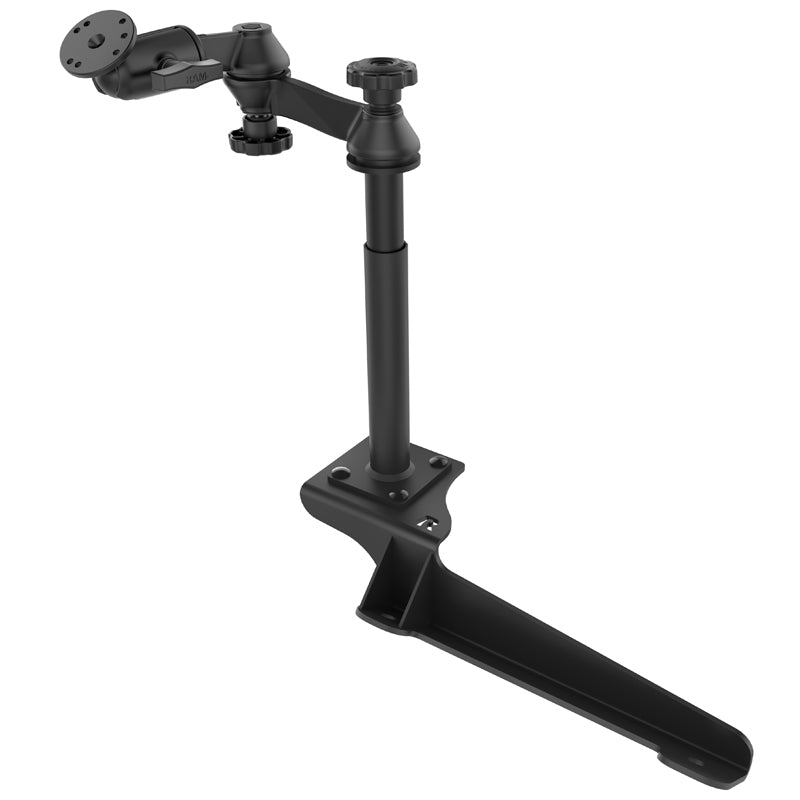

RAM No-Drill Mount for '99-16 Ford F-250

This RAM No-Drill mounting system installs quickly and easily into a range of Ford F-Series and
Ford Excursion vehicles using the existing hardware of the passenger side seat rails. This
configuration provides a telescoping feature that ranges from 12� to 18�. Dual swing arms provide
articulation and 12� of reach for passenger and driver access to the mounted device. The round ball
base attached to the end of the swing arm supports a variety of tablet and laptop holders, while
RAM rubber ball and socket technology provides additional adjustability as well as shock and
vibration isolation.

HARDWARE INCLUDED
Assembly Hardware
(2) M12-1.75 x 100mm Hex Bolts
(2) M12-1.75 x 60mm Hex Bolts
(2) M12 Lock Washers
(2) 3/8" Stand-Offs
(2) 1" Stand-Offs

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Seat Bolt Distance: 11.5" center to center

PLATE SIZE
2.5" Diameter

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Powder coated steel
Marine grade-aluminum

PACKAGING TYPE
Box

FEATURES:
RAM No-Drill base offers low-profile mounting; telescoping pole allows for height adjustments

Dual articulating swing arm allows for ideal device placement; compatible with a variety of tablet
and laptop holders

Made of powder-coated steel and marine-grade aluminum

Backed by a lifetime warranty
