RAM No-Drill iPad 1-4 Mount for '99-16

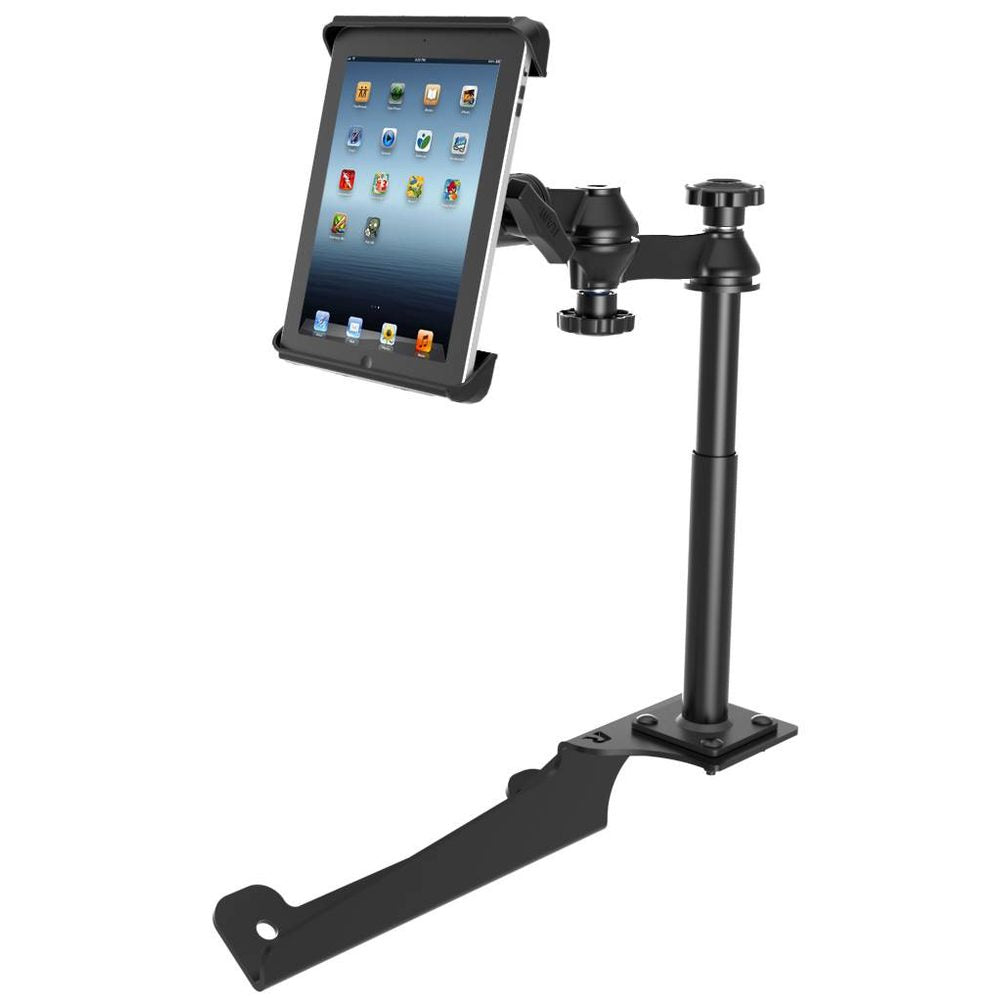

RAM-VB-185-TAB3 is a No-Drill vehicle mount with spring loaded Tab-Tite cradle. The No-Drill base
installs quickly and easily into the specified vehicles using the existing hardware of the passenger
side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18 inches.
Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the
mounted device. Patented rubber ball and socket joint provides additional adjustment as well as
shock and vibration isolation. The Tab-Tite cradle makes it easy to load and unload your tablet,
along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the
functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your
tablet can be used just as it was intended. The included backplate is interchangeable with various
size support cups, making it compatible with numerous tablet models.

HARDWARE INCLUDED
Assembly Hardware
(2) M12-1.75 x 100mm Hex Bolts
(2) M12-1.75 x 60mm Hex Bolts
(2) M12 Lock Washers
(2) 3/8" Stand-Offs
(2) 1" Stand-Offs

HOLDER DIMENSIONS
Height Range: 8.5" - 11.125"
Width Range: 6.38" - 7.75"
Depth Range: .13" - .56"

HOLE PATTERN
Seat Bolt Distance: 11.5" center to center

BALL/SOCKET SIZE
C Size (1.5")

MATERIALS
Powder coated steel
Marine grade-aluminum
High strength composite

PACKAGING TYPE
Box

WEIGHT
15.0 lbs.
