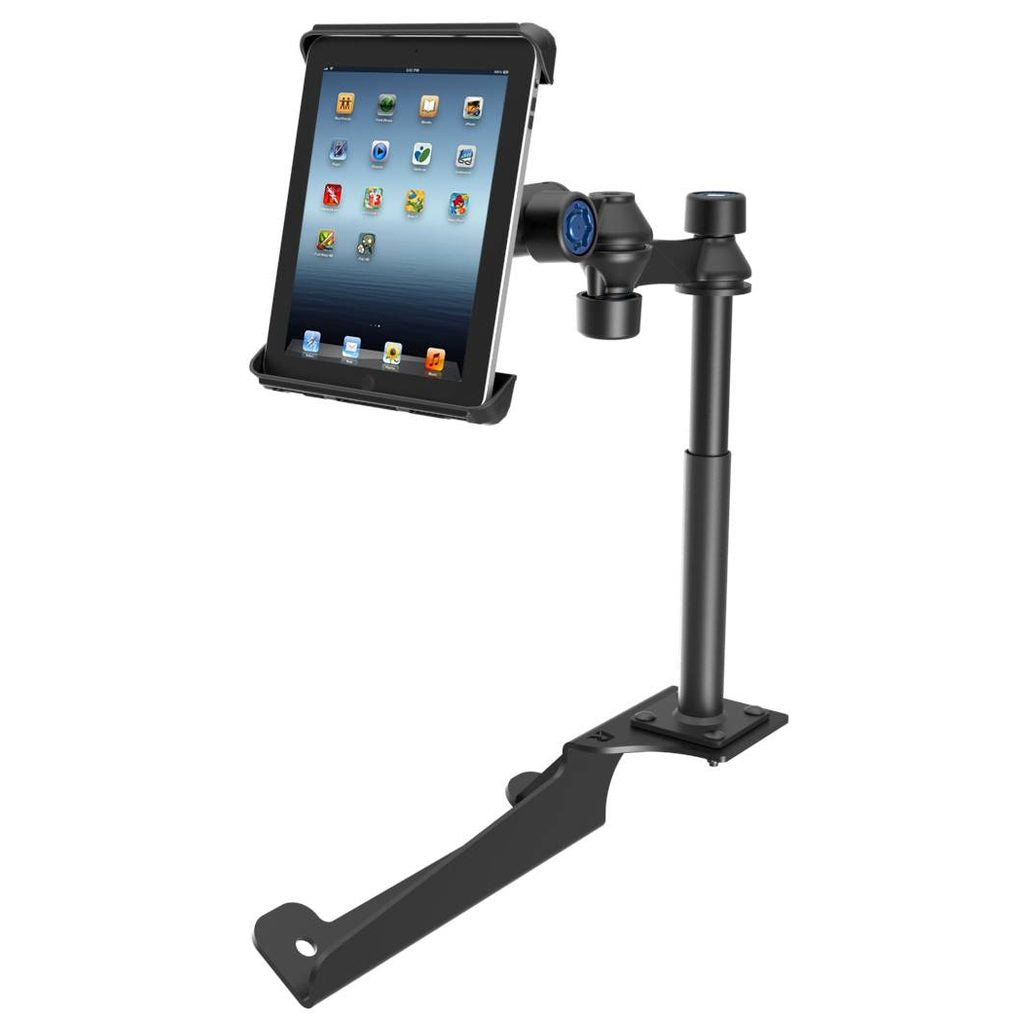

RAM iPad 1-4 Locking Mount for '99-

RAM-VB-185-TABL3-SK is a No-Drill vehicle mount with Tab-Lock cradle and locking security knobs.
The No-Drill base installs quickly and easily into the specified vehicles using the existing
hardware of the passenger side seat rails. This configuration provides a telescoping feature that
ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for
passenger and driver access to the mounted device. Patented rubber ball and socket joint provides
additional adjustment as well as shock and vibration isolation. The Tab-Lock cradle includes a
spring loaded design makes it easy to load and unload your iPad, along with keeping it secure while
on the go. Cup ends are designed to optimize the functionality of your iPad, allowing access to
audio jacks, usb, power, and other ports, your iPad can be used just as it was intended. Quickly
lock the cradle, keeping your iPad secure and safe from theft. With an emphasis on aesthetics and
function, the security knobs are low in profile and only adds a small amount of additional bulk to
your system when compared to the standard knob included. The knobs are the perfect accessory for
keeping your mounted electronic device safe from theft and tampering.

HARDWARE INCLUDED
Assembly Hardware
(2) Keys
(2) M12-1.75 x 100mm Hex Bolts
(2) M12-1.75 x 60mm Hex Bolts
(2) M12 Lock Washers
(2) 3/8" Stand-Offs
(2) 1" Stand-Offs

HOLDER DIMENSIONS
Height Range: 8.5" - 11.125"
Width Range: 6.38" - 7.75"
Depth Range: .13" - .56"

HOLE PATTERN
Seat Bolt Distance: 11.5" center to center

BALL/SOCKET SIZE
C Size (1.5")

MATERIALS
Powder coated steel
Marine grade-aluminum
High strength composite

PACKAGING TYPE
Box

WEIGHT
15.1 lbs.
