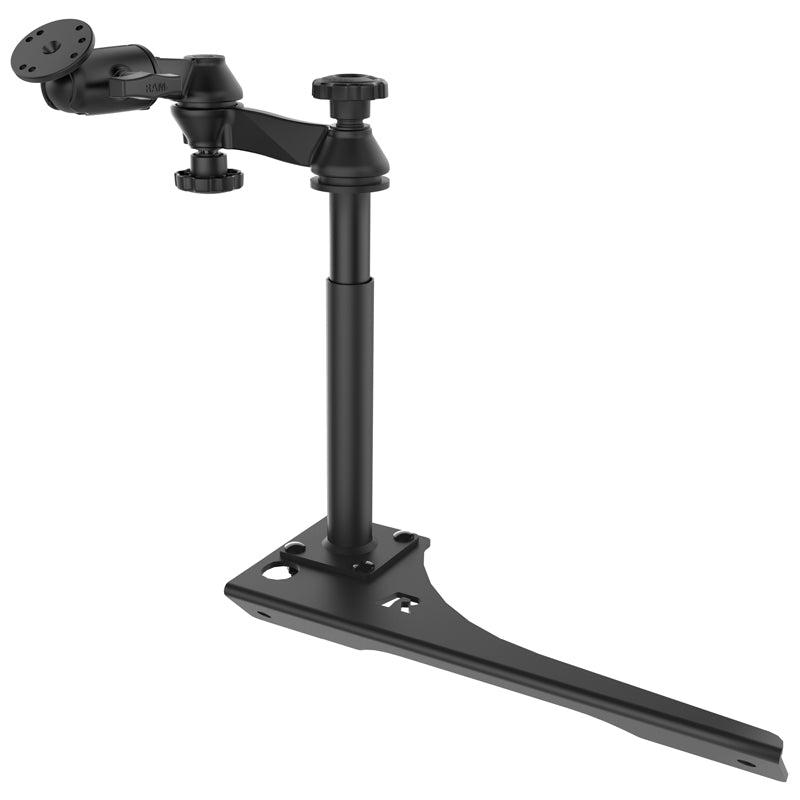

RAM No-Drill Mount for '19-24 Ram 150

This RAM No-Drill mounting system installs quickly and easily into the 2019 Dodge RAM 1500 using
the existing hardware of the passenger side seat rails. This configuration provides a telescoping
feature that ranges from 12� to 18�. Dual swing arms provide articulation and 12� of reach for
passenger and driver access to the mounted device. The round ball base attached to the end of the
swing arm supports a variety of tablet and laptop holders, while RAM rubber ball and socket
technology provides additional adjustability as well as shock and vibration isolation.

HARDWARE INCLUDED
Assembly Hardware
(2) M10-1.5 x 70mm Hex Bolts
(2) 1.68" Stand-Offs
(2) 3/8" Fender Washers

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Seat Bolt Distance: 15.125" center to center

PLATE SIZE
2.5" Diameter

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Powder coated steel
Marine grade-aluminum

PACKAGING TYPE
Box

ADDITIONAL INFORMATION
This mount is not compatible with any RAM "Classic" trucks. For the Classic vehicles, please see
RAM-VB-178A-SW2.

FEATURES:
RAM No-Drill base offers low-profile mounting; telescoping pole allows for height adjustments

Dual articulating swing arm allows for ideal device placement; compatible with a variety of tablet
and laptop holders

Made of powder-coated steel and marine-grade aluminum

Backed by a lifetime warranty
