RAM No-Drill Mount for '15-24 Chevrolet

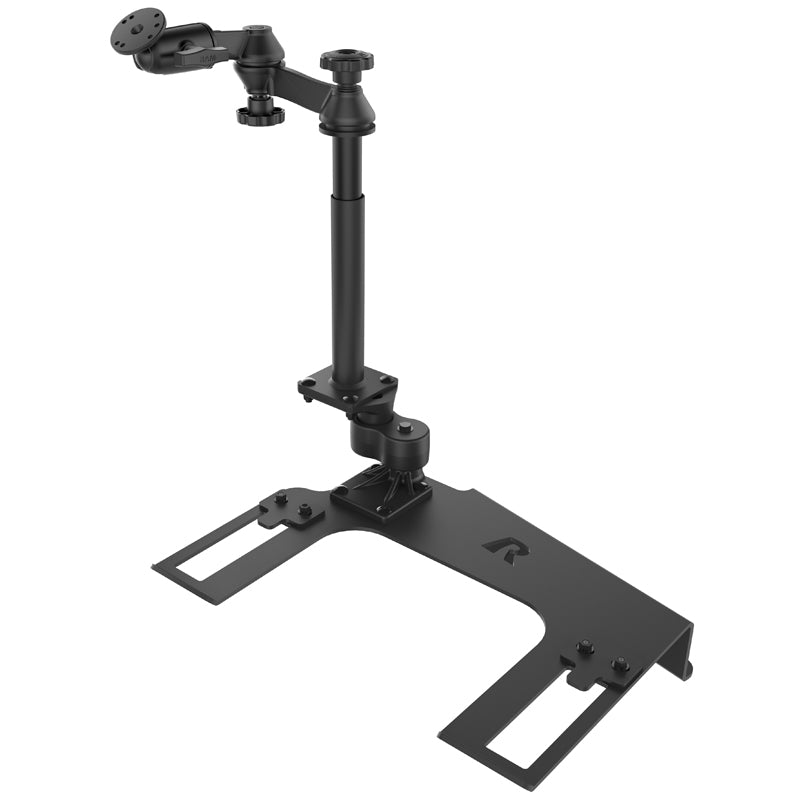

This RAM No-Drill mounting system installs quickly and easily into a range of Chevrolet and GMC
vehicles using the existing hardware of the passenger side seat rails. This configuration provides a
telescoping feature that ranges from 12� to 18�. Dual swing arms provide articulation and 12� of
reach for passenger and driver access to the mounted device. The round ball base attached to the end
of the swing arm supports a variety of tablet and laptop holders, while RAM rubber ball and socket
technology provides additional adjustability as well as shock and vibration isolation.

HARDWARE INCLUDED
Assembly Hardware
(2) Leg Clamps
(2) 1/4"-20 Hex Nuts
(2) 1/4" Flat Washers
(2) 1/4" Lock Washers

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE
2.5" Diameter

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Powder coated steel
Marine grade-aluminum

PACKAGING TYPE
Box

ADDITIONAL INFORMATION
This base is best used in bucket seat vehicles with a full center console. For 2014 and 2015 trucks
with a 40/20/40 bench seat, the RAM-VB-191 is also an option. To install this base, the plastic trim
nearest to the passenger door may need to be cut or modified to accommodate the RAM No-Drill
base once installed. If this cannot be done in your vehicle, or you are not comfortable with this,
you should not purchase this product. Note that the RAM-VB-191 will not work with the 4x4 lever on
the center hump of the vehicle. The RAM-VB-191 is for 4x2 trucks only.

FEATURES:
RAM No-Drill base offers low-profile mounting; telescoping pole allows for height adjustments

Dual articulating swing arm allows for ideal device placement; compatible with a variety of tablet
and laptop holders

Made of powder-coated steel and high-strength composite

Backed by a lifetime warranty
