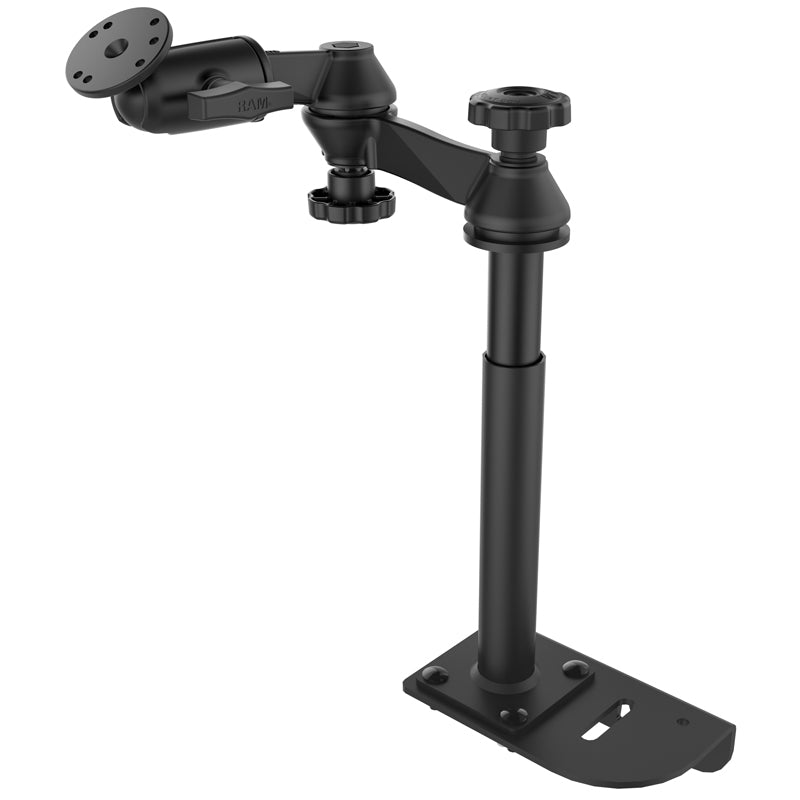

RAM No-Drill Mount for '14-23 Ford Trans

This RAM No-Drill mounting system installs quickly and easily into the Ford Transit full size van
using the existing hardware of the passenger side seat rails. This configuration provides a
telescoping feature that ranges from 12� to 18�. Dual swing arms provide articulation and 12� of
reach for passenger and driver access to the mounted device. The round ball base attached to the end
of the swing arm supports a variety of tablet and laptop holders, while RAM rubber ball and socket
technology provides additional adjustability as well as shock and vibration isolation.

HARDWARE INCLUDED
Assembly Hardware
(1) 1.75" Washer

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE
2.5" Diameter

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Powder coated steel
Marine grade-aluminum

PACKAGING TYPE
Box

FEATURES:
RAM No-Drill base offers low-profile mounting; telescoping pole allows for height adjustments

Dual articulating swing arm allows for ideal device placement; compatible with a variety of tablet
and laptop holders

Made of powder-coated steel and marine-grade aluminum

Backed by a lifetime warranty
