GDS Ecosystem Vehicle Bundle with M

All the benefits of the GDS Ecosystem in one mounting system to create your very own mobile workstation. Centralized around the GDS View 13.3" touch screen monitor, the GDS Ecosystem Vehicle Bundle is mounted on the universal RAM No-Drill vehicle base and tele-pole swing arm system, accompanied by the GDS Keyboard with trackpad, display bracket, RAM Quick-Grip XL phone mount, the GDS Tough-Hub, charging accessories and USB Type-C extension cable. This all-in-one mobile workstation is highly adjustable and supports add-on peripherals for a more customized workstation. Take advantage of this vehicle mount bundle to enable Samsung DeX In-Vehicle by placing your DeX compatible phone into the RAM Quick-Grip XL and plugging your DeX Cable directly into the GDS View Monitor.

FEATURES

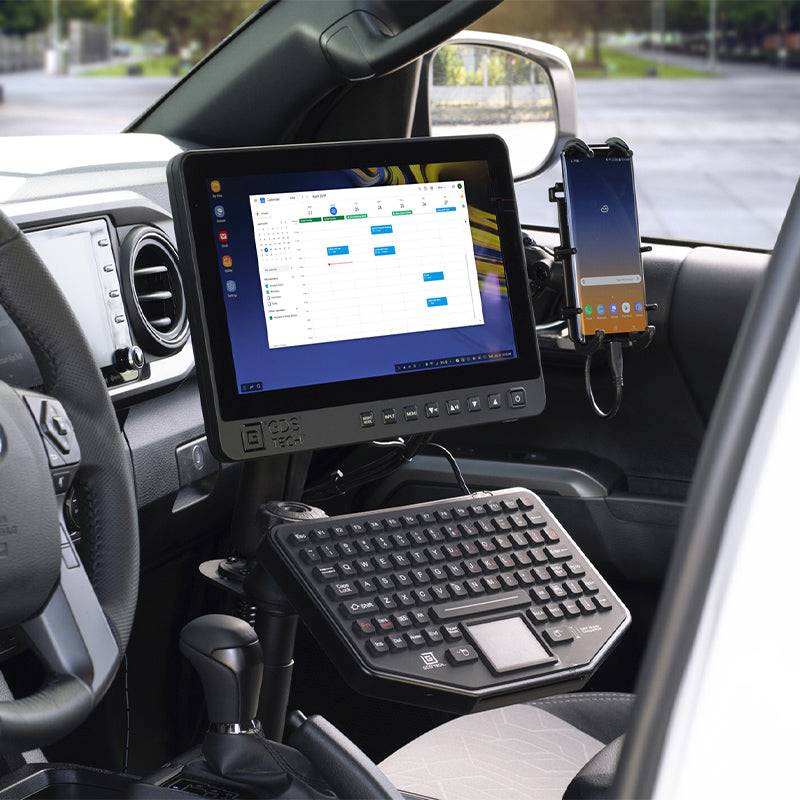

Transforms your vehicle into a mobile workstation with highly adjustable RAM components and enabled by GDS Tech peripherals

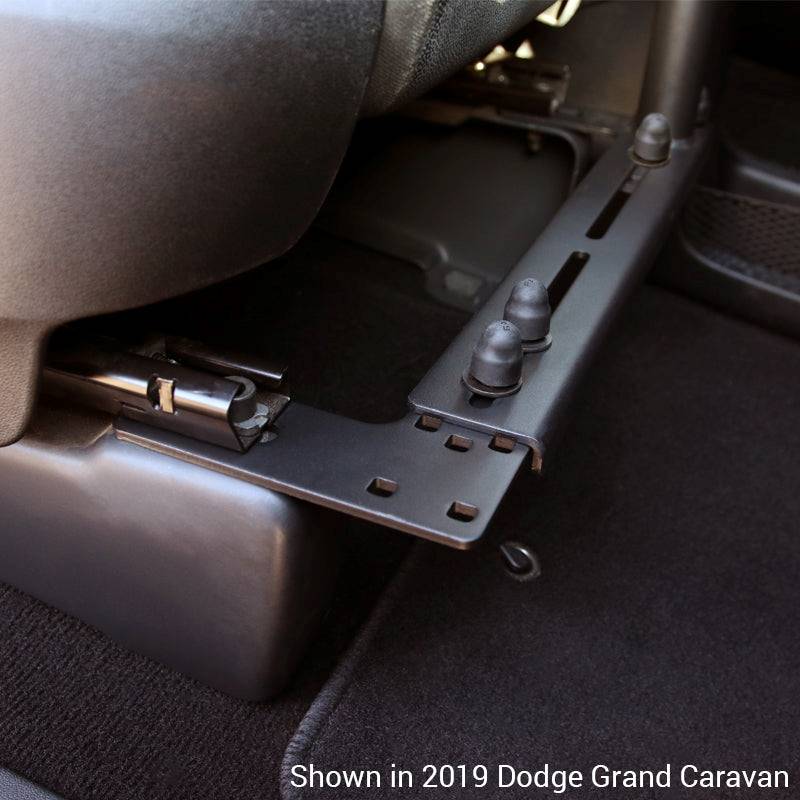

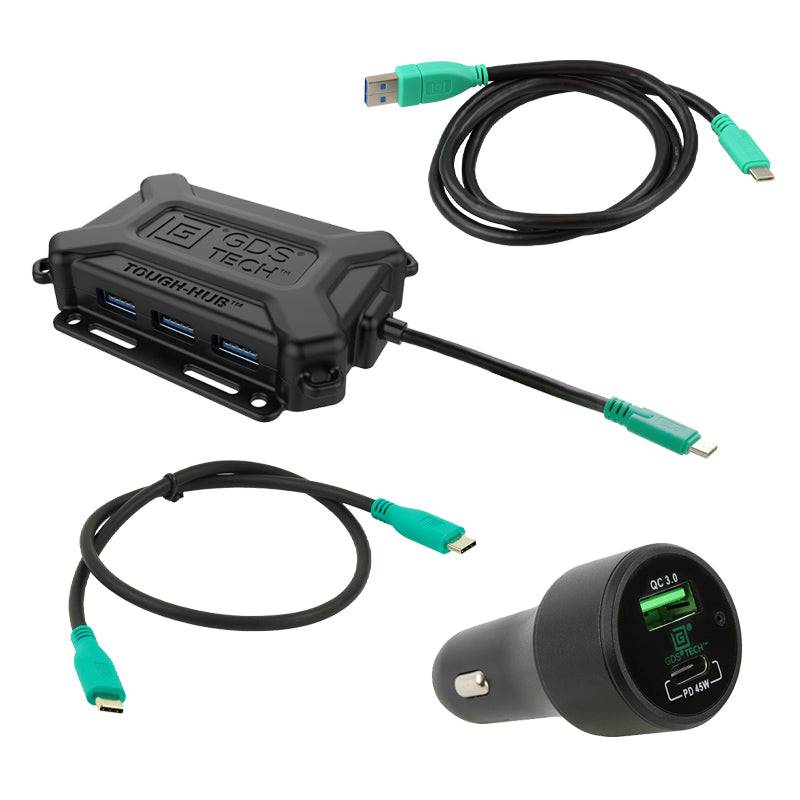

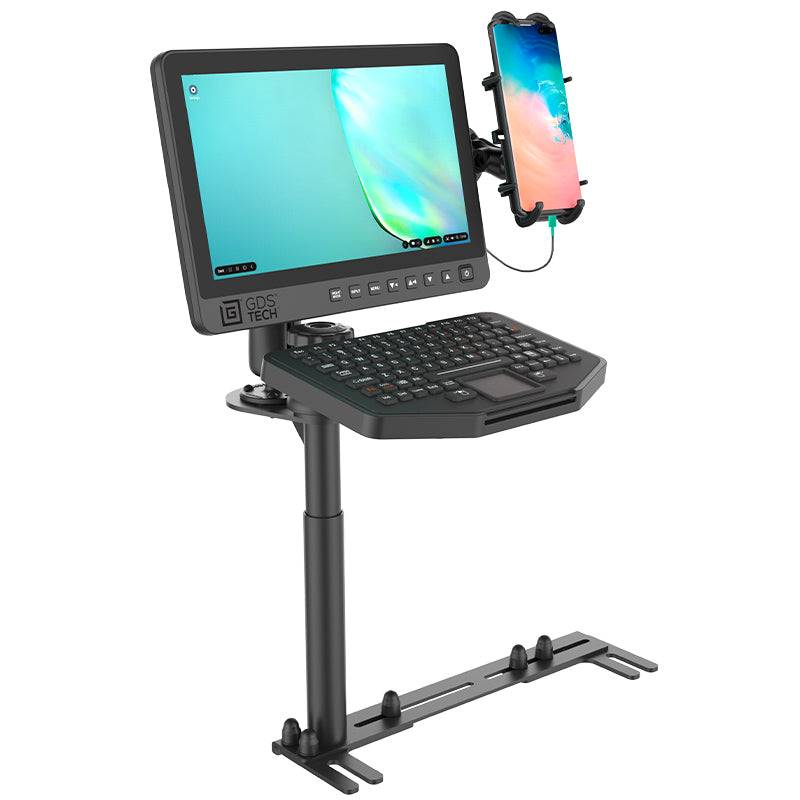

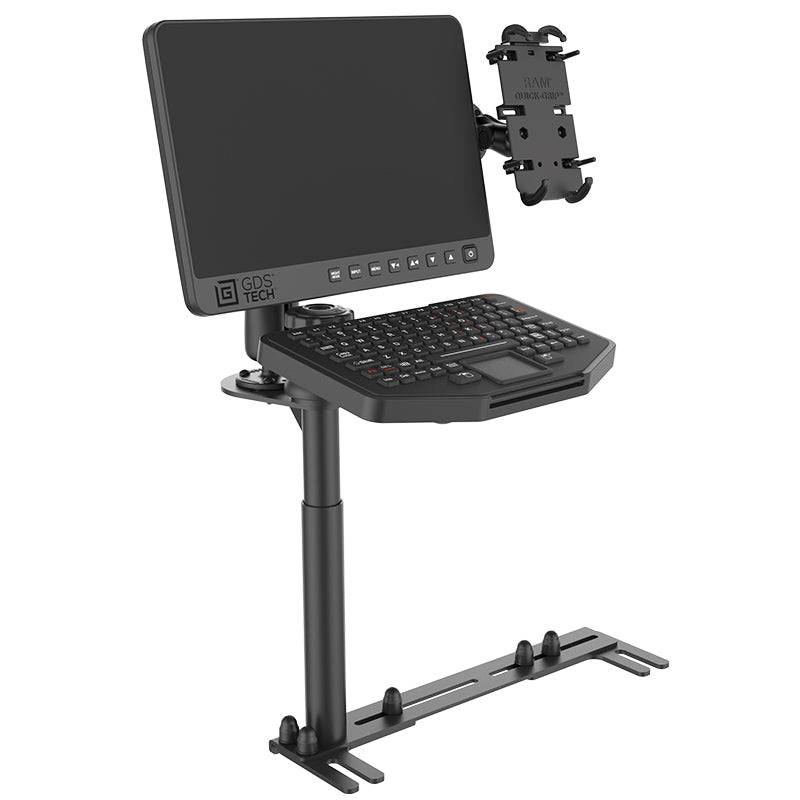

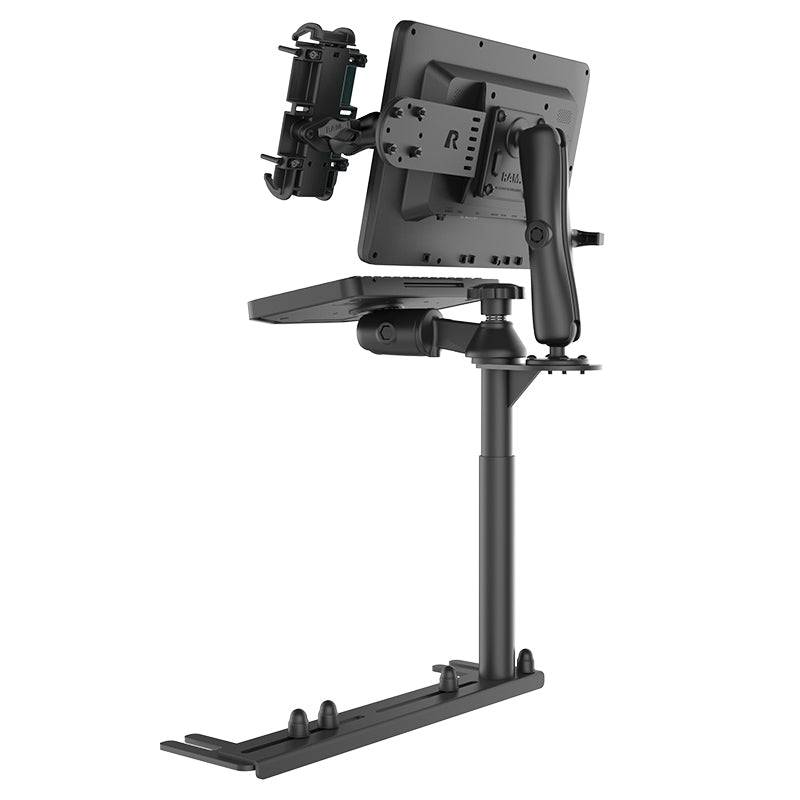

Includes RAM No-Drill Universal Vehicle Base and tele-pole swing arm system, GDS View 13.3" touch screen monitor, GDS Keyboard, RAM Quick-Grip Phone Mount, display bracket, GDS Tough-Hub, CLA charger, and USB Type-C Cables

Compatible with Samsung DeX

hardware included
Assembly Hardware(1) HDMI Cable(1) VGA Cable(1) USB Type-B to USB Type-A CableHardwire & CLA chargers for monitorUSB Type-C cable & CLA charger for hub & phone

holder dimensions
For Phone Holder:Height Range: 5.75" - 8.25"Width Range: 2.625" - 3.625"Max Depth: .72"

monitor specifications
Screen Size: 13.3"Anti-glare and Anti-fingerprint treatment applied on LCDMax Resolution: 1920 x 1080 high resolutionAspect ratio: 16:9Tough Panel: 2-point capacitive touchAudio: (2) 2W SpeakersBrightness: 800nitsContrast ratio: 1000:1Red monochrome night mode to reduce eye strain for night viewingControl buttons on front of monitor for easy accessZip tie attachment loops for cable management

materials
Powder coated steelMarine grade-aluminumHigh strength composite

packaging type
Box

input voltage
Monitor: 10-30V DCCLA Charger for Hub: 12-24V DC

power output
63W Total (45W for Type-C & 18W for Type-A)

output current
6A max

operating temperature
-10°C to +50°C

storage temperature
0°C to +45°C

ports
CLA Charger:(1) Type-C Female (PD) (1) Type-A Female (QC 3.0)GDS Tough-Hub:(4) USB Type A Ports - One supports BC 1.2 with power up to 7.5W (5V/1.5A)(1) RJ45 Port - Supports 10/100/1000Mbps bandwidth(1) HDMI Port - Resolution up to 4Kx2K@30Hz(1) USB Type-C Port - Supports data and PD charging 100W (20V/5A))GDS View Monitor:(1) Power Input(1) HDMI(1) VGA(1) 3.5mm Audio Output(1) USB Type-B (Host Input)(3) USB Type-A (Peripheral Outputs)

compliance
Meets SAE J-1113Integrated Short Circuit Protection (SCP)

certifications
MIL-STD-810G 514.5 Vibration TestedFCC, CE, IC, RCM, WEEE, e-Mark, ISO 7637-2, and RoHS

Weight
27.0 lb
