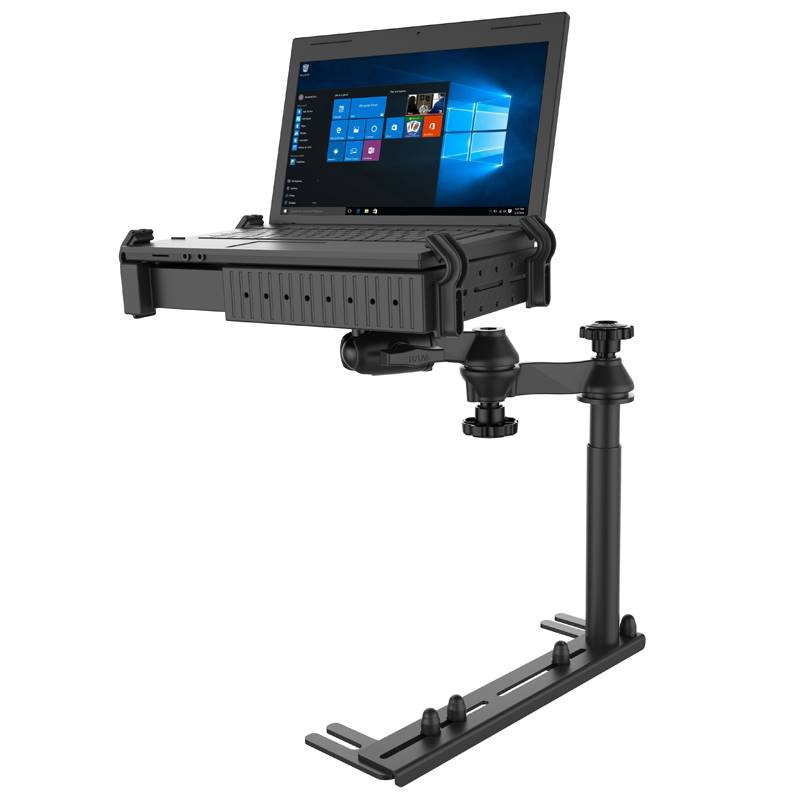

RAM-VB-196-SW1_RAM No-Drill Universal Laptop Mount

The RAM Universal No-Drill Laptop features a heavy-duty steel mounting base designed to fit a
variety of vehicles. Using the front bench or passenger side seat rail bolts as attachment points,
existing hardware is used to secure the laptop mount base in the vehicle. The included RAM Tough-
Tray is spring loaded to accommodate 10" to 17" laptops. The tray features four adjustable
retaining arms with rubber grips. These arms can be moved both vertically and horizontally, enabling
a custom fit for varying thicknesses of laptops and access to ports or drives. A screen support and
USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate
the mounting of additional RAM systems to support phones or other electronics.

HARDWARE INCLUDED
Assembly Hardware
Stabilizer Foot

PRODUCT DIMENSIONS
Height Range: 18.25" - 24"

TRAY DIMENSIONS
Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"

HOLE PATTERN
Seat Bolt Distance: 9"-18.875" center to center

BALL/SOCKET SIZE
C Size (1.5")

MATERIALS
Powder coated steel
Marine grade-aluminum
High strength composite

PACKAGING TYPE
Box

ADDITIONAL INFORMATION
Will this mount install in your vehicle? Learn more by following the steps in this document:
Universal Vehicle Laptop Mount Compatibility Guide Depending on your vehicle, some
installations may limit the adjustability of the passenger seat.

FEATURES:
Custom, RAM No-Drill mounting base offers lowest profile in the industry

Universal adjustable base accomodates a wide range of vehicles (see Additional Information)

Patented ball and socket mounting system offers shock and vibration damping

Dual articulating swing arm offers the simplest and most comfortable adjustment points in the
industry

Backed by a lifetime warranty


WEIGHT
14.0 lbs.
