RAM Tilt-N-Turn 90-Degree Bracket with S

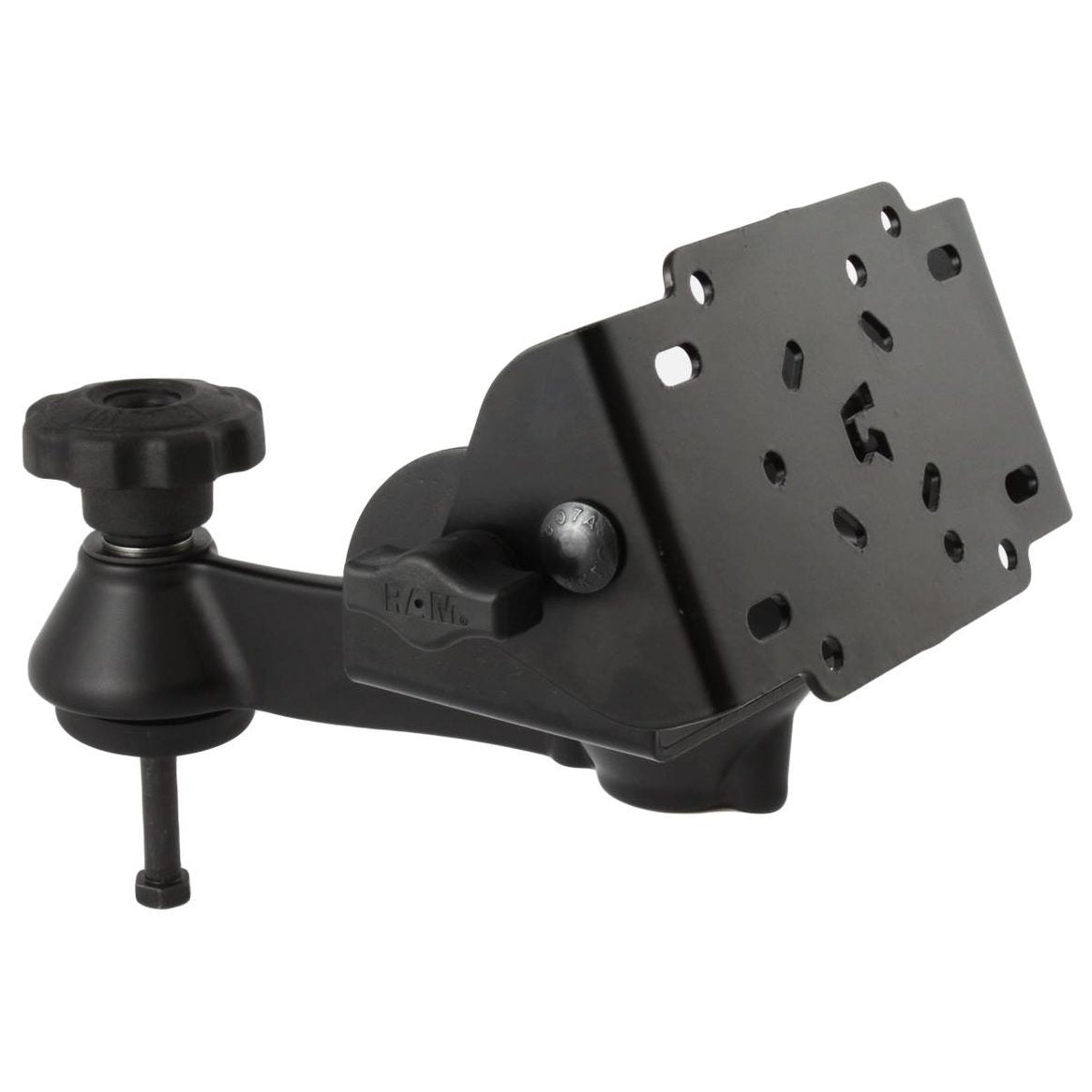

The RAM-VB-TNT90-1, Tilt-N-Turn 90 degree motion attachment swing arm, consists of a steel plate on
a single swing arm that has a tilt range of 90 degrees forward and back from the vertical position.
The small range of tilt is designed to angle a connected RAM laptop cradle forward giving you a
comfortable typing and viewing angle. The Tilt-N-Turn plate can spin in 360 degrees around on the
swing arm end, and with a twist of the side lock knob, the attachment will tilt forward and back.
Knowing that this product has countless applications, numerous hole patterns are built right in
making the Tilt-N-Turn exceptionally versatile. The AMPS, 90 degree AMPS, 75 x 75MM VESA, 2” x 4”,
and RAM’s own three hole at 120 degrees take the guess work out of whether this product will work
for you. Whether you have and existing RAM system and want to integrate this product, or simply need
the best mounting system available, consider RAM and yet another ergonomic product; this time with
the Tilt-and-Turn feature.

HARDWARE INCLUDED
Assembly Hardware
(1) 3/8"-16 x 1.5" Carriage Bolt
(1) 3/8"-18 Lock Nut
(1) 2" Rubber Washer
(2) 5/16" Flat Washer

MATERIALS
Powder coated steel
Marine grade-aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
3.0 lbs.
