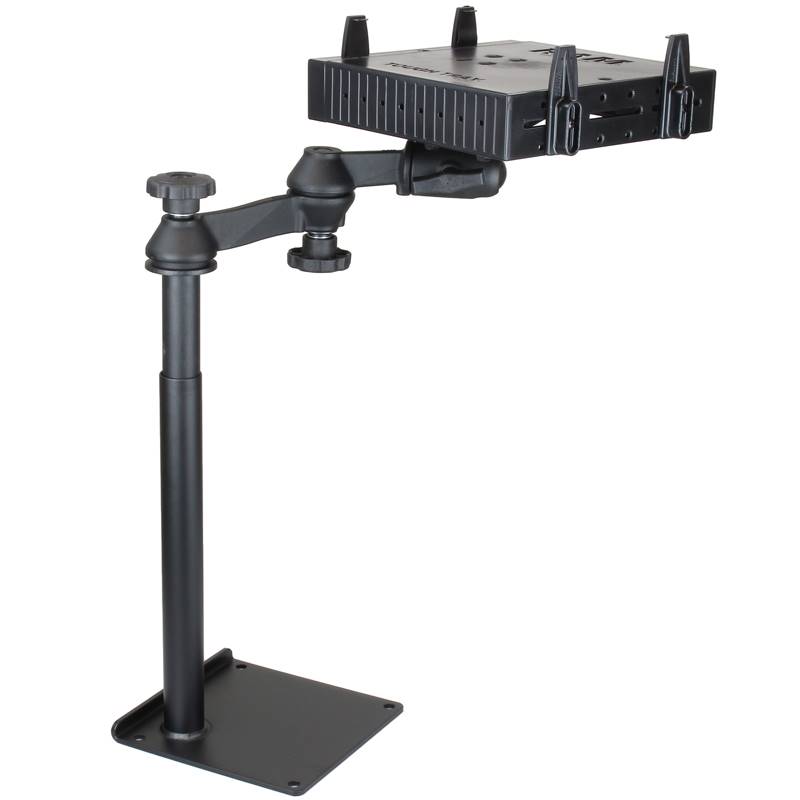

RAM-VBD-125-SW1-FL RAM Universal Drill-Down Horizontal

This universal drill type Laptop Stand System installs quickly and easily into most vehicles by
using self tapping screws, or by drilling and then bolting down the mount base to the vehicle. This
configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms
provide articulation and 12 inches of reach for passenger and driver access to the mounted device.
Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration
isolation. The RAM Tough-Tray is spring loaded to accommodate 10" to 16" wide laptops & (17" wide
screens). The tray features four adjustable retaining arms with 90-degree flat edges, allowing you
to close your laptop down all the way while secured in the tray. These arms can be moved both
vertically and horizontally, providing a custom fit for varying thicknesses of laptops and the
freedom of not blocking ports or drives. A screen support and USB light are also available to
accessorize the tray.

HARDWARE INCLUDED
Assembly Hardware
(4) 3/8"-16 x 2" Hex Bolts
(4) 3/8"-16 Nylock Nuts
(4) 3/8" Fender Washers
(4) 3/8" Lock Washers

TRAY DIMENSIONS
Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"

HOLE PATTERN
Base: See Drawing

PLATE SIZE
8" x 8"

BALL/SOCKET SIZE
C Size (1.5")

MATERIALS
Powder coated steel
Marine grade-aluminum
High strength composite

PACKAGING TYPE
Box

WEIGHT
15.0 lbs.
