Custom Mounts-RAM DBL SWING ARM 12" MALE WITH 240

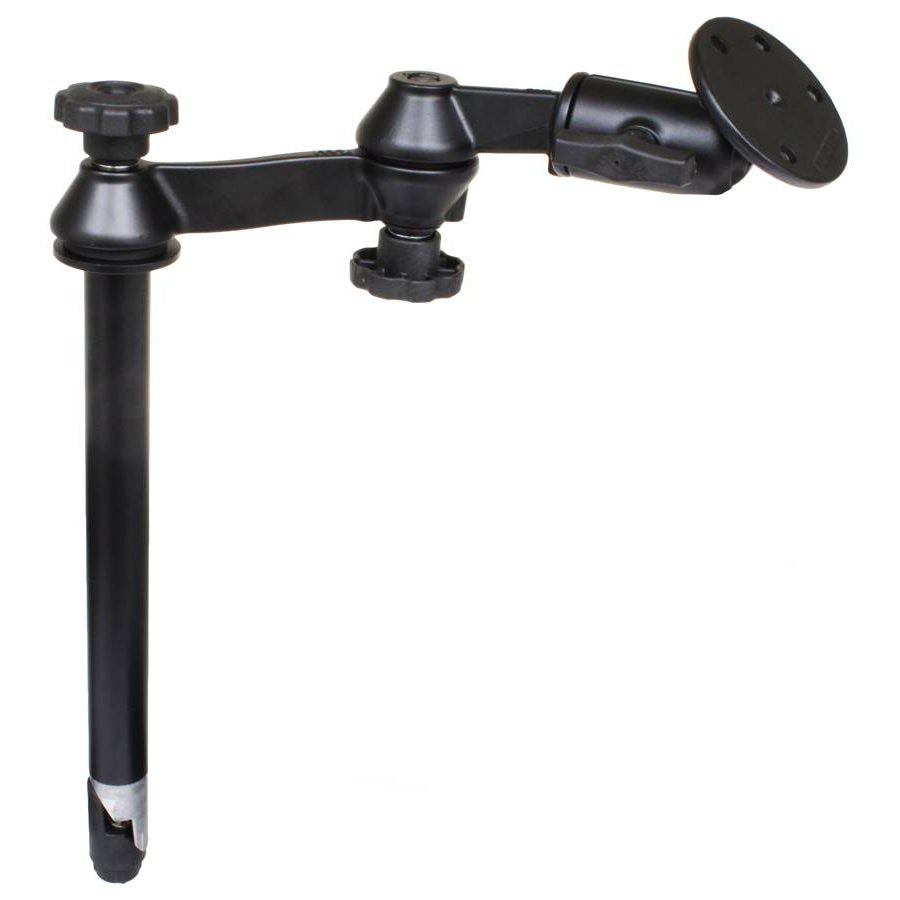

The RAM-VP-SW1-12-240 consists of a 12" upper male Tele-Pole, double swing arm and 3.68" round
base. The Tele-Pole can be easily adjusted by turning the knob at the top of the post. Once the
knob has been tightened, the Tele-Pole becomes a rigid support for connecting devices or cradles.
The Tele-Pole will connect to any RAM vehicle base with a welded female Tele-Pole. The double
swing arm with rotating plate, allows you to twist and tilt the viewing angle of your connected
electronic device, when mounted on your RAM Vehicle Mount. The rotating swivel arm gives you even
more viewing positions for your mounted electronic device while holding everything firmly in place.
The length of the double swing arm is 12". The 3.68" round base contains pre-drilled holes that
connects to RAM Tough-Dock Powered Docking Stations.

HARDWARE INCLUDED
Assembly Hardware

HOLE PATTERN
Tele-Pole: 2.625" x 2.625"
Round Plate: See Drawing

PLATE SIZE
3.68" Diameter

BALL/SOCKET SIZE
C Size (1.5")

MATERIALS
Powder coated steel
Marine-grade aluminum

PACKAGING TYPE
Box

WEIGHT
6.77 lbs.
