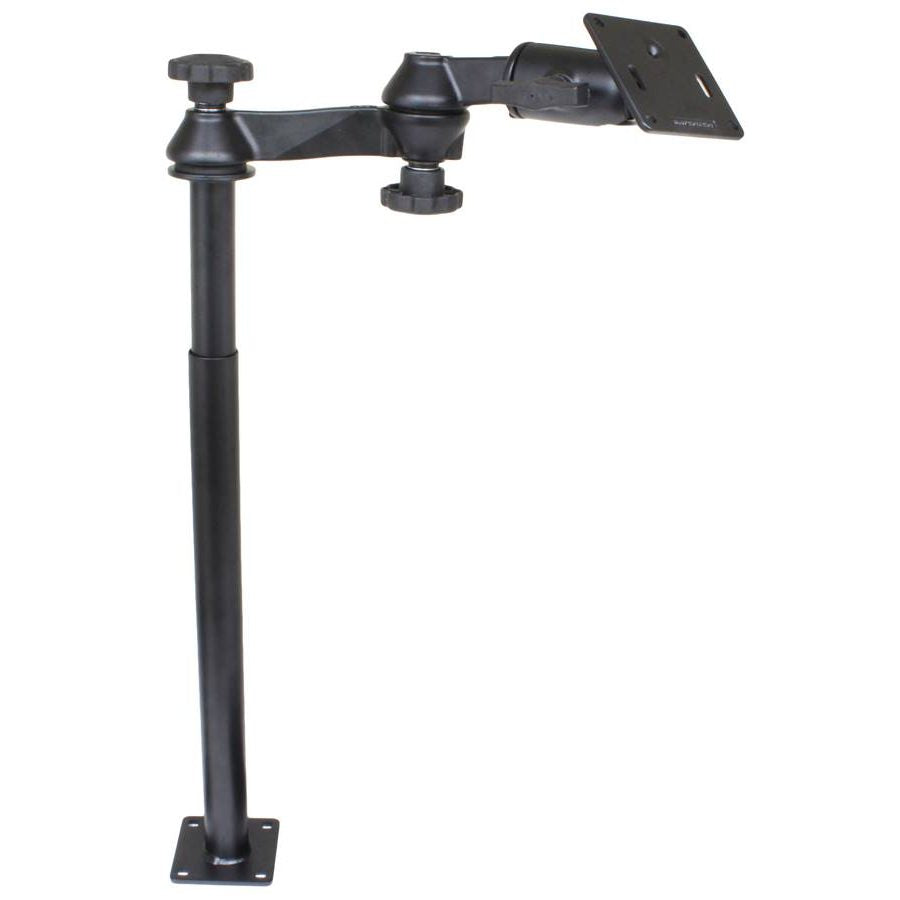

RAM-VP-SW1-1218-2461 RAM Tele-Pole with 12" & 18" Poles

The RAM-VP-SW1-1218-2461 consists of a 18" lower female Tele-Pole, 12" upper male Tele-Pole,
double swing arm and 3.625" square base that contains the VESA hole pattern. The lower female Tele-
Pole will attach to all RAM vehicles bases that do not contain a welded female Tele-Pole. The
height of the Tele-Poles, combinded, can easily be adjusted by turning the knob at the top of the
post. Once the knob has been tightened, the Tele-Pole becomes a rigid support for connecting
devices or cradles. The double swing arm allows you to twist and tilt the viewing angle of your
connected electronic device, when mounted on your RAM Vehicle Mount. The rotating swivel arm gives
you even more viewing positions for your mounted electronic device while holding everything firmly
in place. The length of the double swing arm is 12". The 3.625" square base includes a 75mm X 75mm
VESA hole pattern with 1.5" rubber ball positioned 0.88" from the center of one edge.

HARDWARE INCLUDED
Assembly Hardware
(4) 5/16"-18 x 1" Carriage Bolts
(4) 5/16"-18 Hex Nuts
(4) 5/16" Flat Washers
(4) 5/16" Split Lock Washers
(4) Rubber Caps

PRODUCT DIMENSIONS
Minimum Height: 22.3"
Maximum Height: 34.3"

HOLE PATTERN
Tele-Pole: 2.625" x 2.625"
VESA Plate: See Drawing

PLATE SIZE
VESA Plate: 3.625" x 3.625"
Lower Pole: 3.5" x 3.5"

BALL/SOCKET SIZE
C Size (1.5")

MATERIALS
Powder coated steel
Marine-grade aluminum

PACKAGING TYPE
Box

WEIGHT
7.55 lbs.
