RAM-VP-SW1-4-2461_RAM 4" Upper Pole with Double Swing A

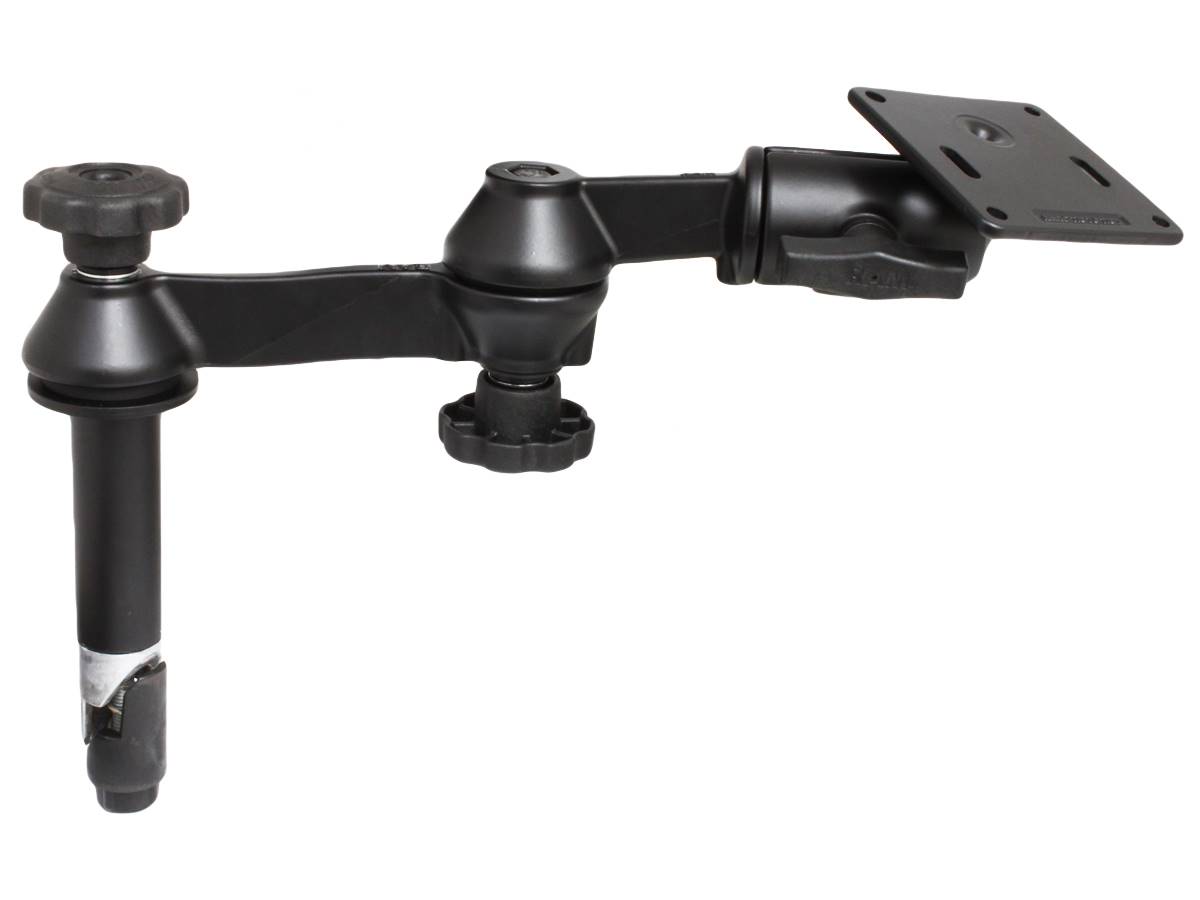

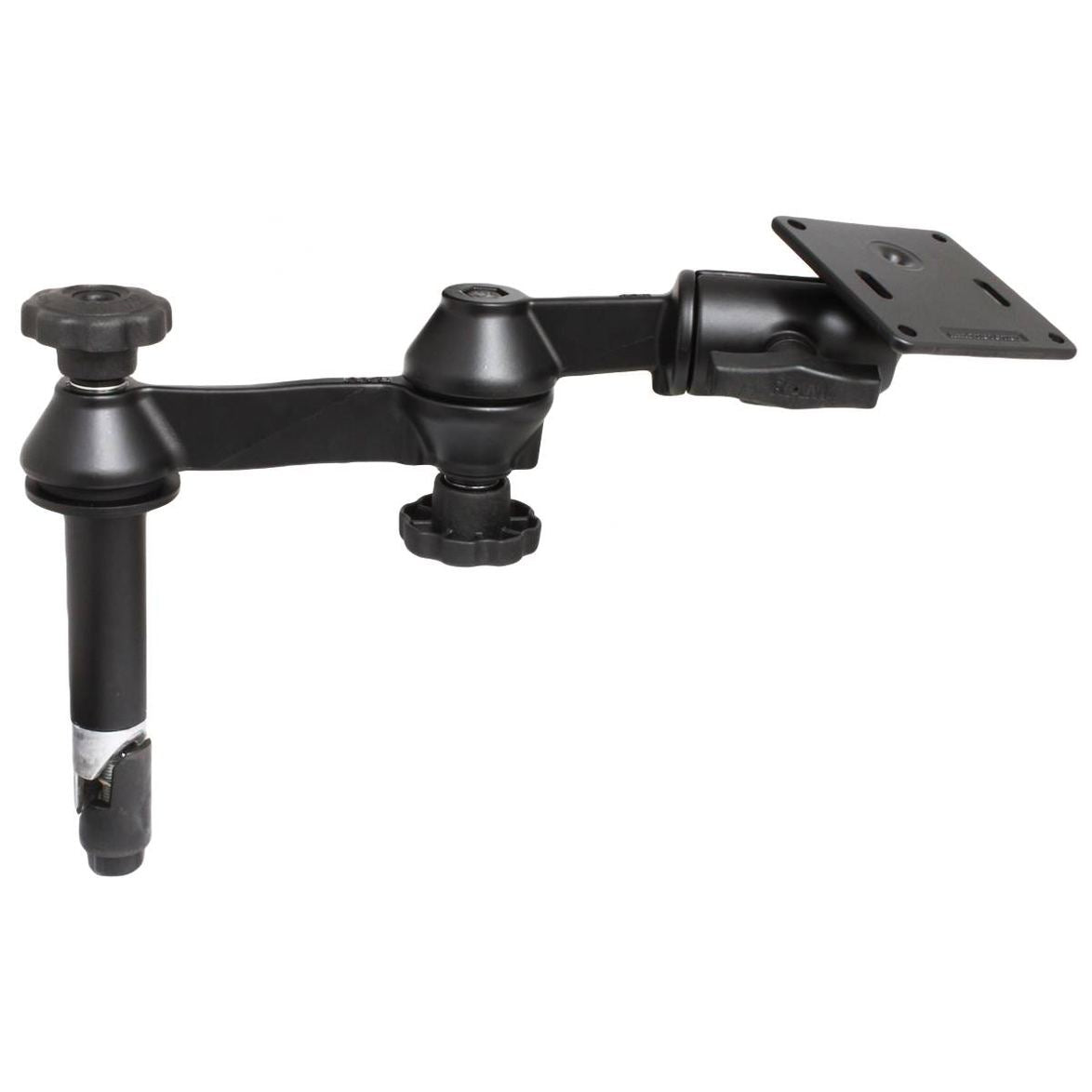

The RAM-VP-SW1-4-2461 consists of a 4" upper male Tele-Pole, double swing arm and 3.625" square
base that contains the VESA hole pattern. The Tele-Pole can be easily adjusted by turning the knob
at the top of the post. Once the knob has been tightened, the Tele-Pole becomes a rigid support for
connecting devices or cradles. The Tele-Pole will connect to any RAM vehicle base with a welded
female Tele-Pole. The double swing arm with rotating plate, allows you to twist and tilt the
viewing angle of your connected electronic device, when mounted on your RAM Vehicle Mount. The
rotating swivel arm gives you even more viewing positions for your mounted electronic device while
holding everything firmly in place. The length of the double swing arm is 12". The 3.625" square
base includes a 75mm X 75mm VESA hole pattern with 1.5" rubber ball positioned 0.88" from the center
of one edge.

HARDWARE INCLUDED
Assembly Hardware

HOLE PATTERN
See Drawing

PLATE SIZE
VESA Plate: 3.625" x 3.625"

BALL/SOCKET SIZE
C Size (1.5")

MATERIALS
Powder coated steel
Marine-grade aluminum

PACKAGING TYPE
Box

WEIGHT
5.59 lbs.
