RAM-VP-SW2-8-2461_RAM 8" Upper Pole with Single Swing A

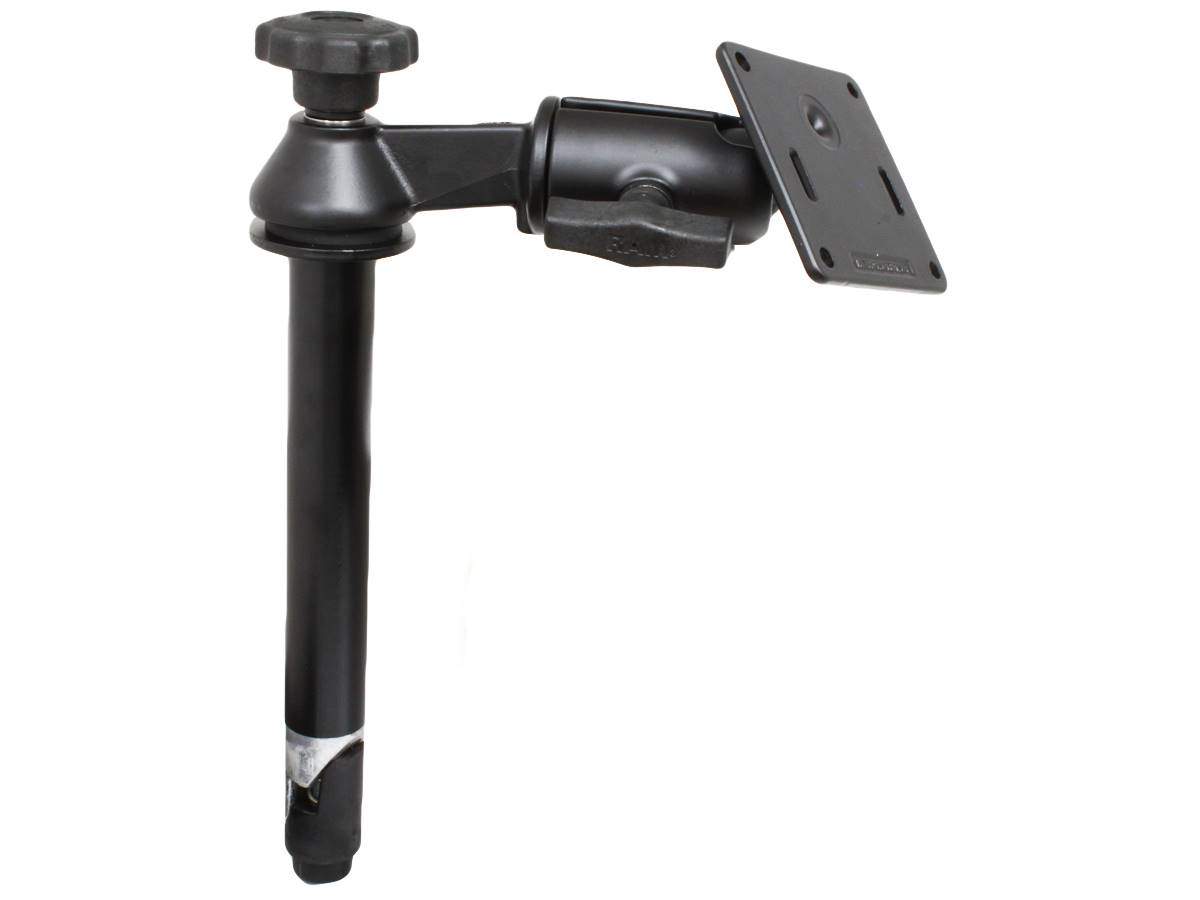

The RAM-VP-SW2-8-2461 consists of a 8" upper male Tele-Pole, single swing arm and 3.625" square
base that contains the VESA hole pattern. The Tele-Pole can be easily adjusted by turning the knob
at the top of the post. Once the knob has been tightened, the Tele-Pole becomes a rigid support for
connecting devices or cradles. The Tele-Pole will connect to any RAM vehicle base with a welded
female Tele-Pole. The length of the double swing arm is 6". The 3.625" square base includes a 75mm
X 75mm VESA hole pattern with 1.5" rubber ball positioned 0.88" from the center of one edge.

HARDWARE INCLUDED
Assembly Hardware

HOLE PATTERN
See Drawing

BALL/SOCKET SIZE
C Size (1.5")

MATERIALS
Powder coated steel
Marine-grade aluminum

PACKAGING TYPE
Box

WEIGHT
6.5 lbs.
