RAM-VP-SW2-89-240 RAM Tele-Pole with 8" & 9" Poles, Sin

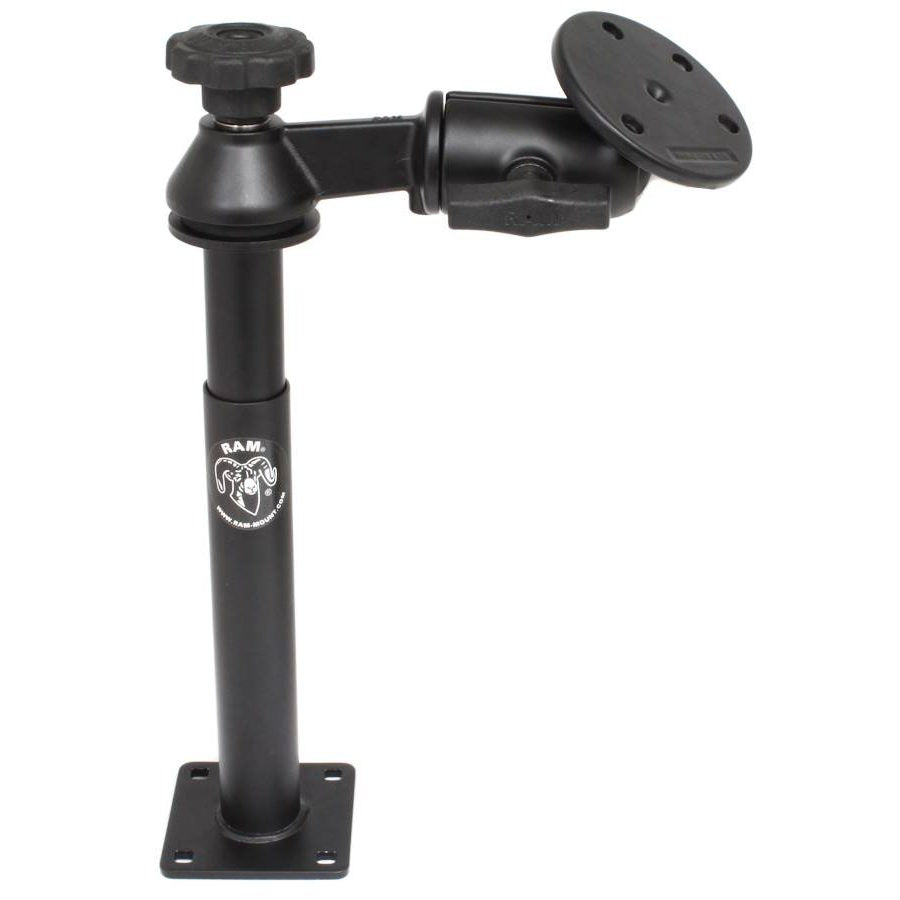

The RAM-VP-SW2-89-240 consists of a 9" lower female Tele-Pole, 8" upper male Tele-Pole, single
swing arm and 3.68" round base. The lower female Tele-Pole will attach to all RAM vehicles bases
that do not contain a welded female Tele-Pole. The height of the Tele-Poles, combinded, can easily
be adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-
Pole becomes a rigid support for connecting devices or cradles. The length of the double swing arm
is 6". The 3.68" round base contains pre-drilled holes that connects to RAM Tough-Dock Powered
Docking Stations.

HARDWARE INCLUDED
Assembly Hardware
(4) 5/16"-18 x 1" Carriage Bolts
(4) 5/16"-18 Hex Nuts
(4) 5/16" Flat Washers
(4) 5/16" Split Lock Washers
(4) Rubber Caps

PRODUCT DIMENSIONS
Minimum Height: 16.3"
Maximum Height: 21.3"

HOLE PATTERN
Tele-Pole: 2.625" x 2.625"
Round Plate: See Drawing

BALL/SOCKET SIZE
C Size (1.5")

MATERIALS
Powder coated steel
Marine-grade aluminum

PACKAGING TYPE
Box

WEIGHT
6.5 lbs.
