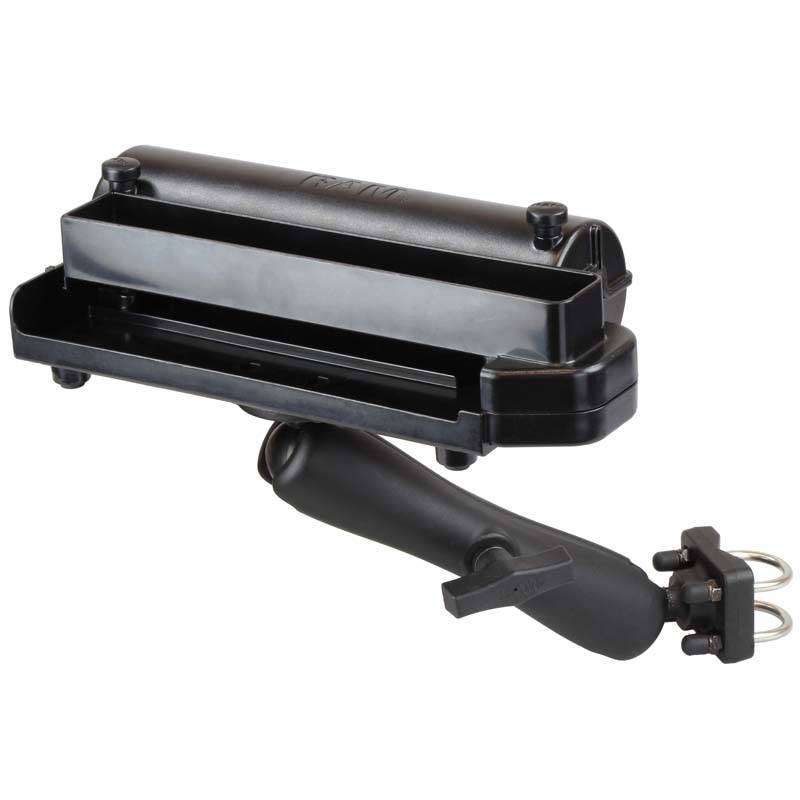

RAM-VPR-101-D-235U_RAM U-Bolt Mount for Brother PocketJ

The RAM-VPR-101-D-253U is designed to hold Brother PocketJet 6 and 7 Series portable printers. A
custom fit enclosure, the cradle is form fitting with no sharp edges and adds little to the overall
size of the printer. Key features are full view of LED's, sight hole to check paper level, and a
caddy to store pens, cell phone, paper clips, glasses and other useful items. This is a complete kit
and includes C size 1.5" ball U-Bolt base, long arm and base to mount printer cradle. U-Bolt
Dimensions: 1.25" to 1.5" in diameter

HARDWARE INCLUDED
Assembly Hardware
(2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps

CLAMP RANGE
1.25" - 1.5" diameter

SOCKET-TO-SOCKET LENGTH
8"

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag
