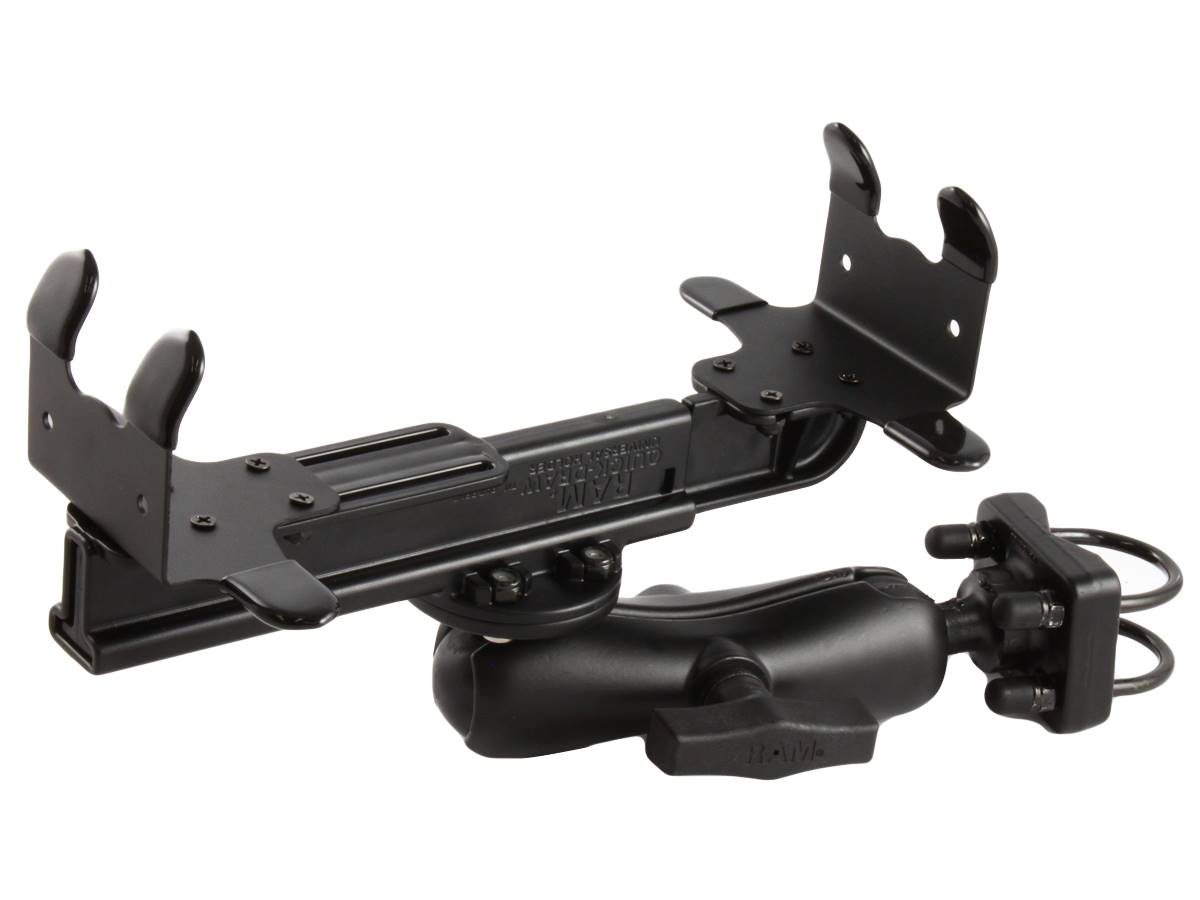

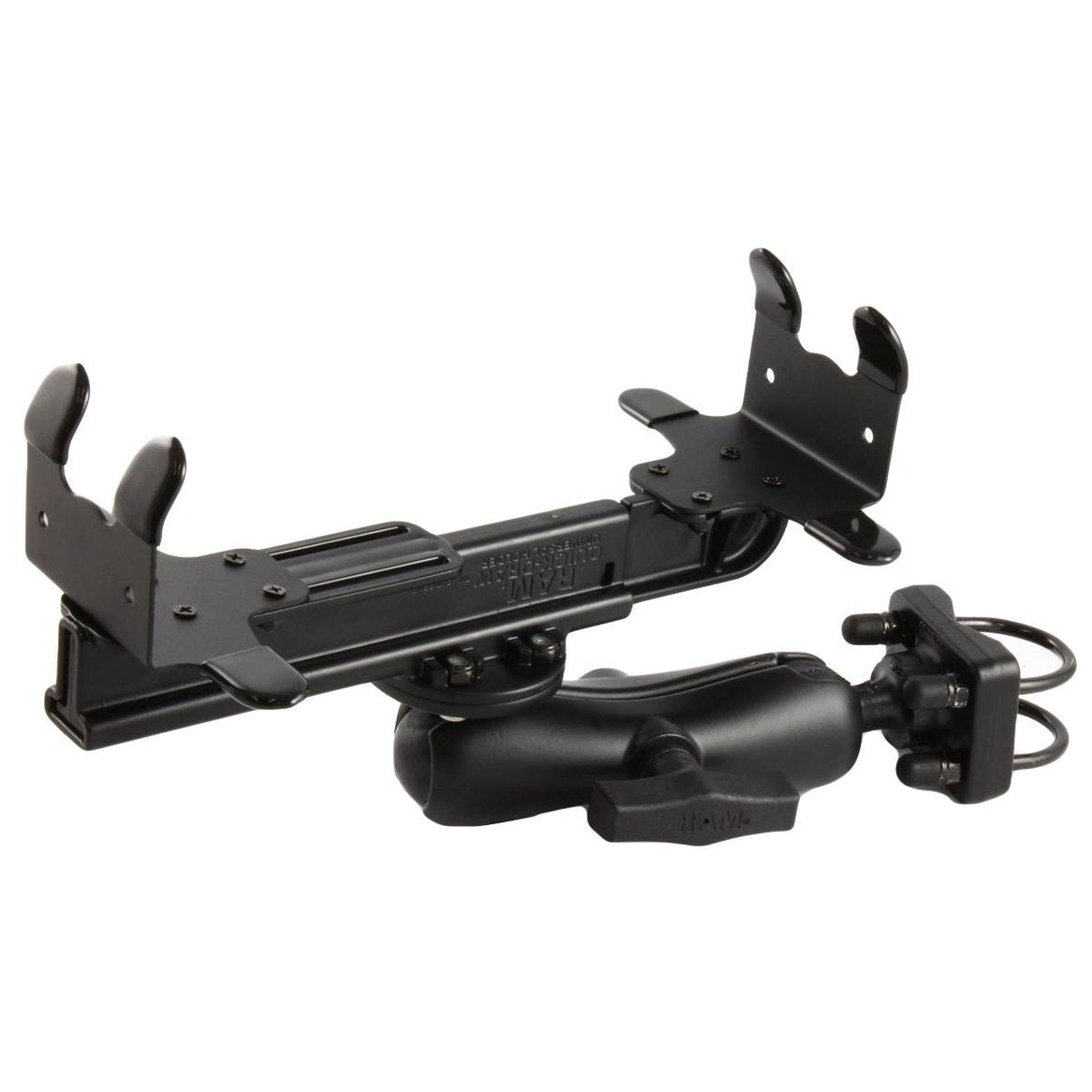

RAM-VPR-102-1_RAM Quick-Draw Holder with Double U-Bolt

The RAM-VPR-102-1 is designed to hold Canon BJC-85 portable printers. The cradle uses a unique
patent pending spring loaded mechanism that holds strong, yet provides easy removal for printer
storage. At each end of the spring loaded cradle are small side clamp plates that are designed to
fit cleanly around either edge of the printer. Included is a standard length arm and round pipe
base, which will connect to any RAM Tele-Pole and other poles with a diameter from 1.25" to 1.5".

HARDWARE INCLUDED
Assembly Hardware
(2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps

HOLDER DIMENSIONS
Max Height: 1.75"
Width Range: 8" - 14.5"

CLAMP RANGE
1.25" - 1.5" diameter

SOCKET-TO-SOCKET LENGTH
4.66"

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Powder coated steel
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
1.78 lbs.
