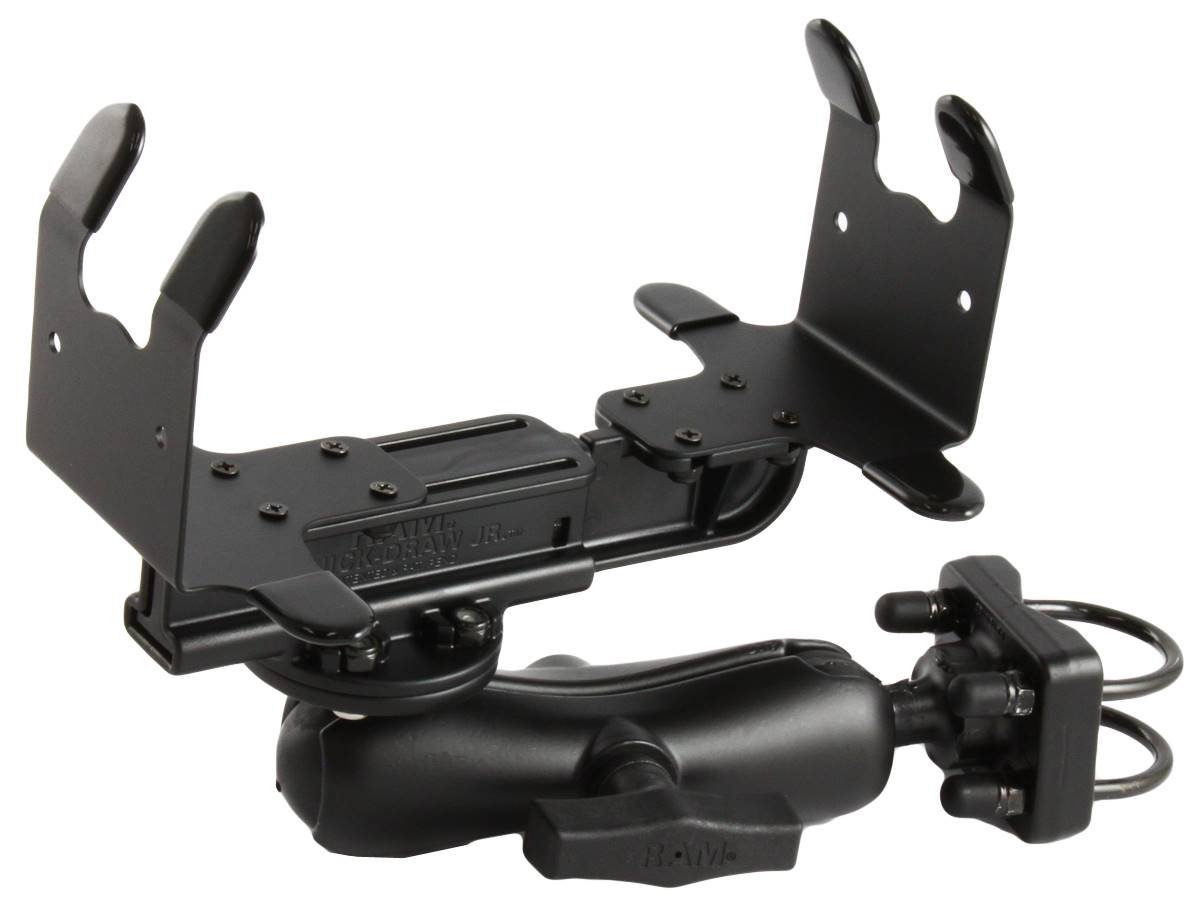

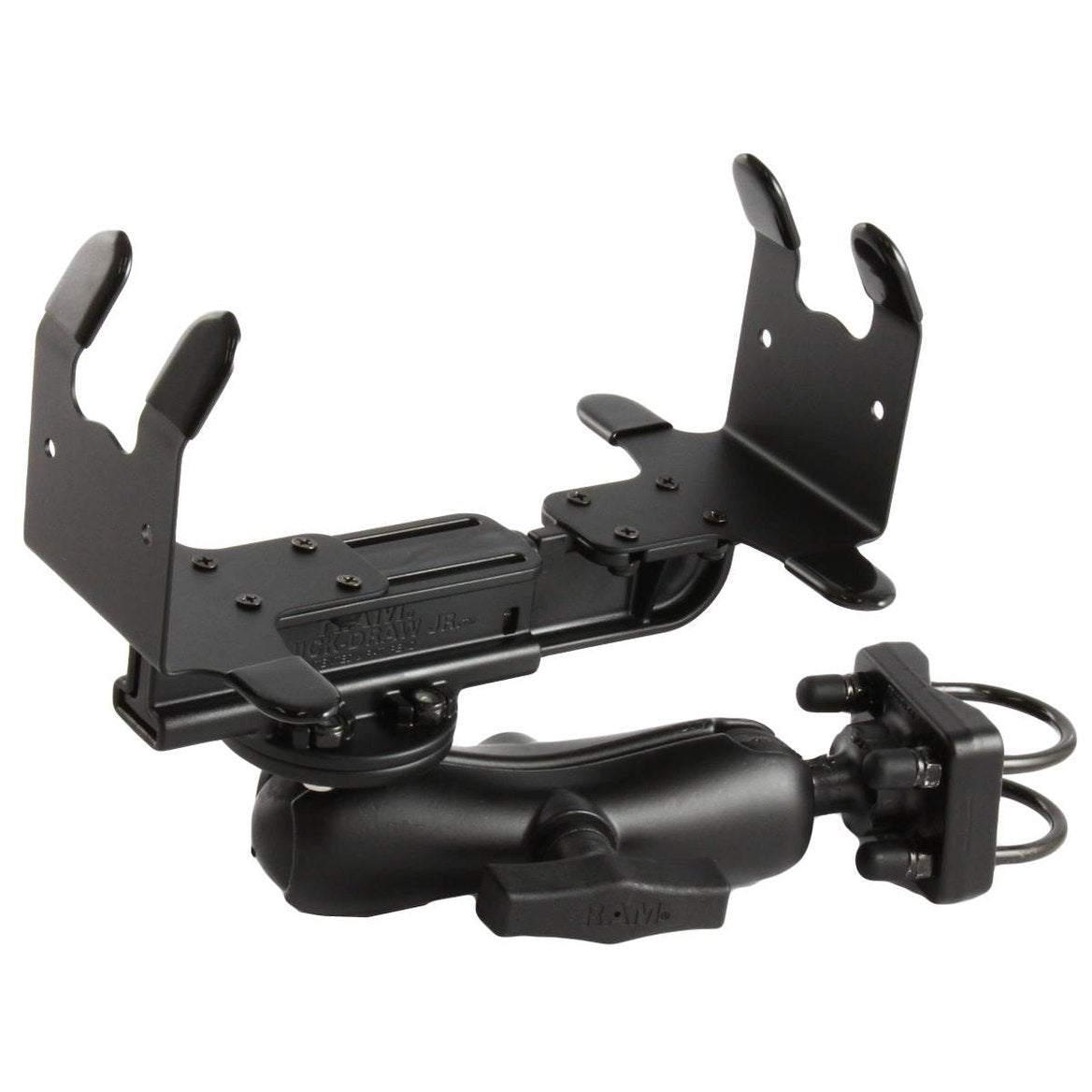

RAM-VPR-105-1_RAM Quick-Draw Jr. with Double U-Bolt Bas

The RAM-VPR-105-1 consists of a double-u-bolt base, double socket arm and RAM Quick Draw Jr.
printer holder. The RAM Quick Draw Jr. holder uses a unique patent pending spring loaded mechanism
that holds strong, yet provides easy removal for printer storage. At each end of the cradles are
side clamping plates that are designed to fit cleanly around the edges of a printer.

HARDWARE INCLUDED
Assembly Hardware
(2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps

HOLDER DIMENSIONS
Max Height: 2.5"
Width Range: 6.625" - 10.5"

CLAMP RANGE
1.25" - 1.5" diameter

SOCKET-TO-SOCKET LENGTH
4.66"

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Powder coated steel
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
2.44 lbs.
