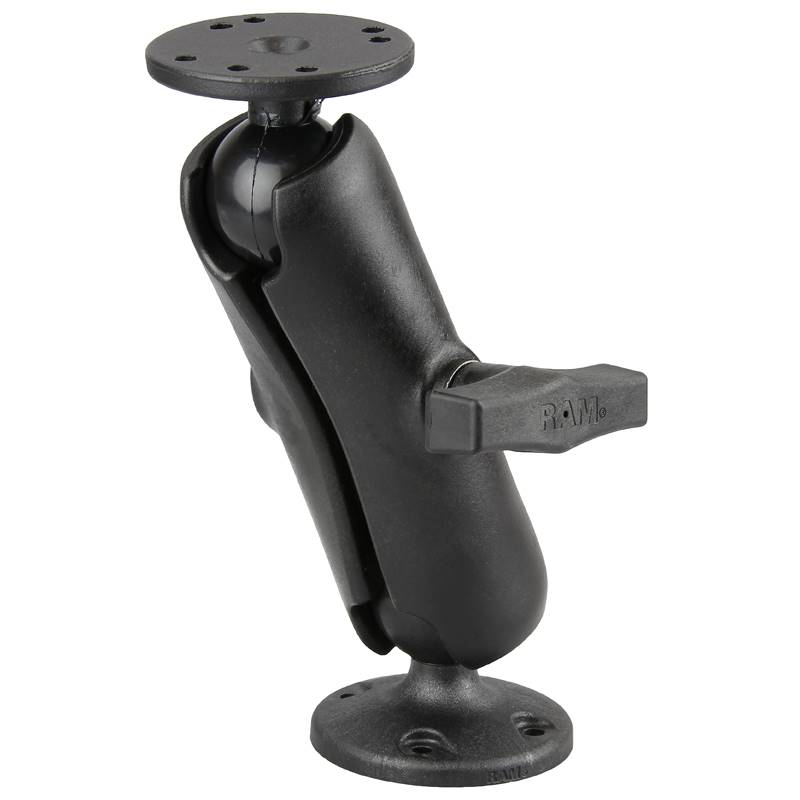

RAM Composite Double Ball Mount for Garmin

The RAP-101U-G4 consists of a 2.5" diameter round base with the universal AMPS hole pattern, double
socket arm and round adapter base that attaches directly to the back of the Garmin echo. Designed
into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at
both socket ends of the arm; this with RAM's rubber ball and socket technology allows for almost
infinite adjustment and perfect viewing angles. Included is hardware that is used to attach the
Garmin echo to the RAM Mount.

HARDWARE INCLUDED
(3) #8-32 x 5/8" Machine Screws
(3) #8-32 Nylock Nuts

SOCKET-TO-SOCKET LENGTH
4.66"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

PLATE SIZE
2.5" Diameter

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.85 lbs.
