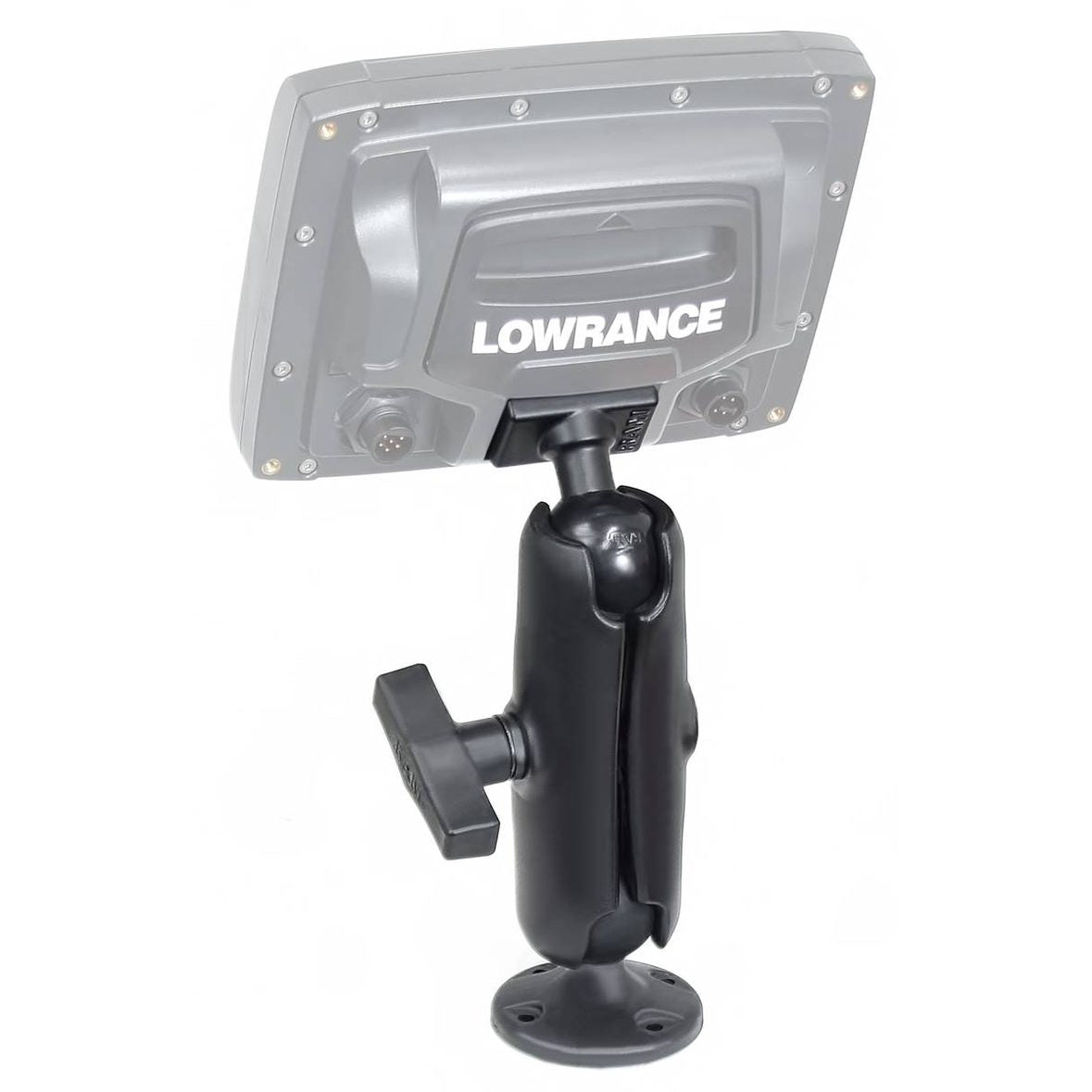

RAM Composite Double Ball Mount for Lowra

The RAP-101U-LO11 consists of a 2.5" diameter round base that contains the universal AMPS hole
pattern double socket arm and adapter base that inserts directly to the back of Lowrance Elite-5,
Mark-5 and Hook 5 Fishfinders. The adapter serves as a quick release mechanism, allowing you to
remove or transfer your Fishfinder in seconds. Designed into the mount is a 1.5" diameter patented
rubber ball and socket system with adjustment points at both socket ends of the arm; this with RAM's
rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
Overall Height: 7.35"

PRODUCT DIMENSIONS
Overall Height: 7.35"

SOCKET-TO-SOCKET LENGTH
4.66"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

PLATE SIZE
2.5" Diameter

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.85 lbs.
