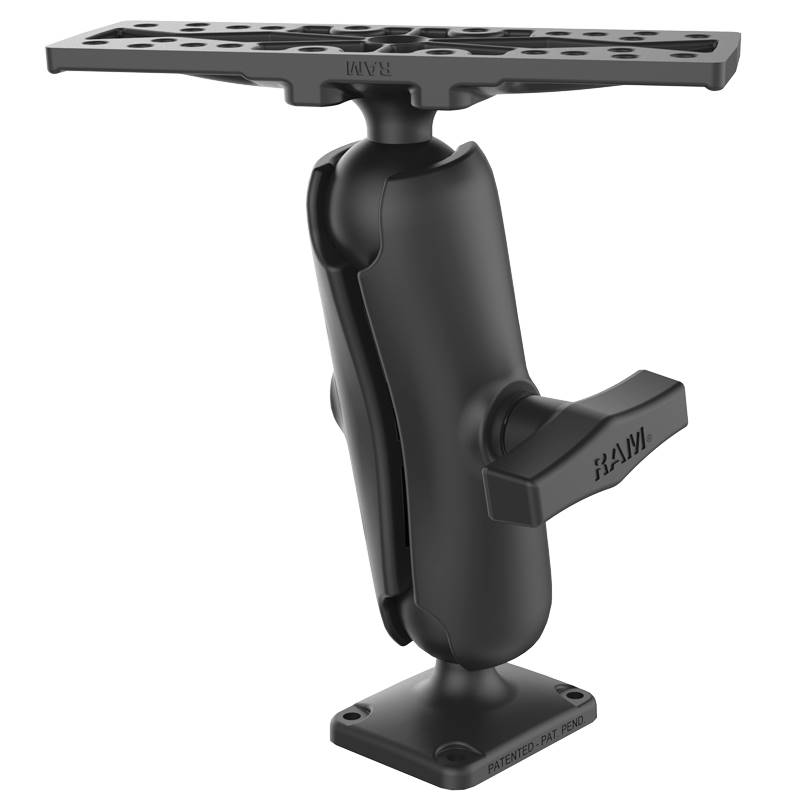

RAP-111U RAM Universal Composite Marine Electronic Moun

The RAP-111U consists of a 2" x 1.7" 2" x 1.7" square base that contains the universal AMPs hole
pattern, STANDARD LENGTH double socket arm and 6.25" x 2" rectangle base. The rectangle base
contains different combinations of pre-drilled holes which will match up to many electronic devices
and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

SOCKET-TO-SOCKET LENGTH
4.66"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
See Drawing

PLATE SIZE
Top Plate: 6.25" x 2"
Bottom Plate: 2" x 2.25"

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

ADDITIONAL INFORMATION
The included plate is a universal mounting bracket with a selection of mounting hole locations. In
certain applications additional holes may need to be drilled for proper fit with your electronic
device.

WEIGHT
0.95 lbs.
