RAM Composite Double Ball Mount for Hum

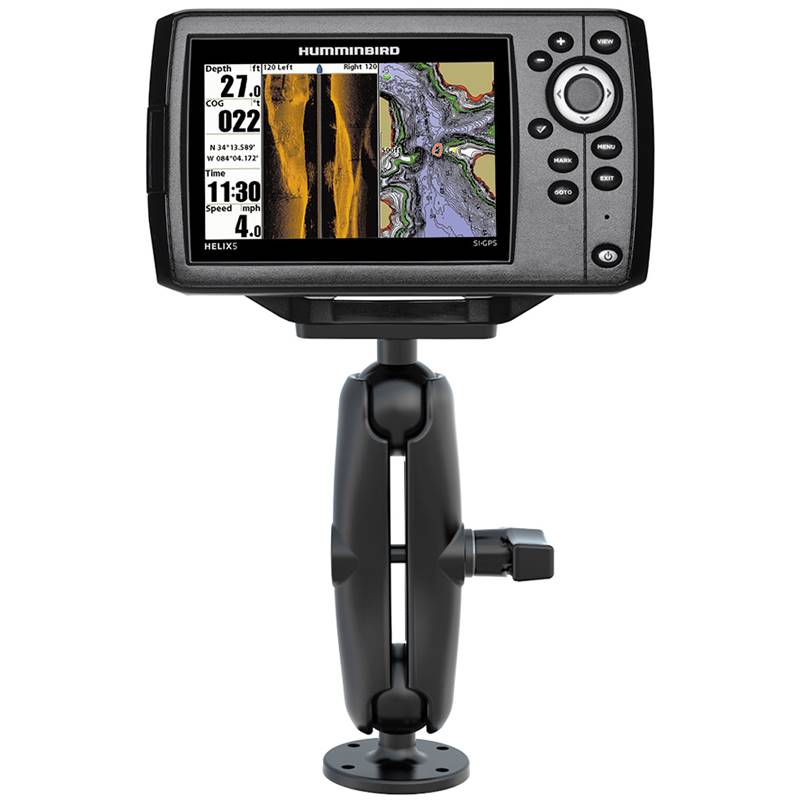

The RAP-202-153-202 consists of a round 2.5" diameter round base (Universal AMPs Hole Pattern),
double socket arm and 1.5" x 3" rectangular base. The rectangular base contains four holes with a
center to center pattern of 1" x 2.5". For most applications, mount will support up to ten pounds.
The round base and double socket arm are made of a corrosion resistant high-strength composite
material. Compatible Devices: Humminbird Helix 5

PRODUCT DIMENSIONS
Overall Height: 7.35"

SOCKET-TO-SOCKET LENGTH
4.66"

HOLE PATTERN
Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree 1.812" Diameter
Rectangular Plate: 1" x 2.5"

PLATE SIZE
Top Plate: 1.5" x 3"
Bottom Plate: 2.5" Diameter

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
High strength composite

PACKAGING TYPE
Retail Bag

WEIGHT
1.05 lbs.
