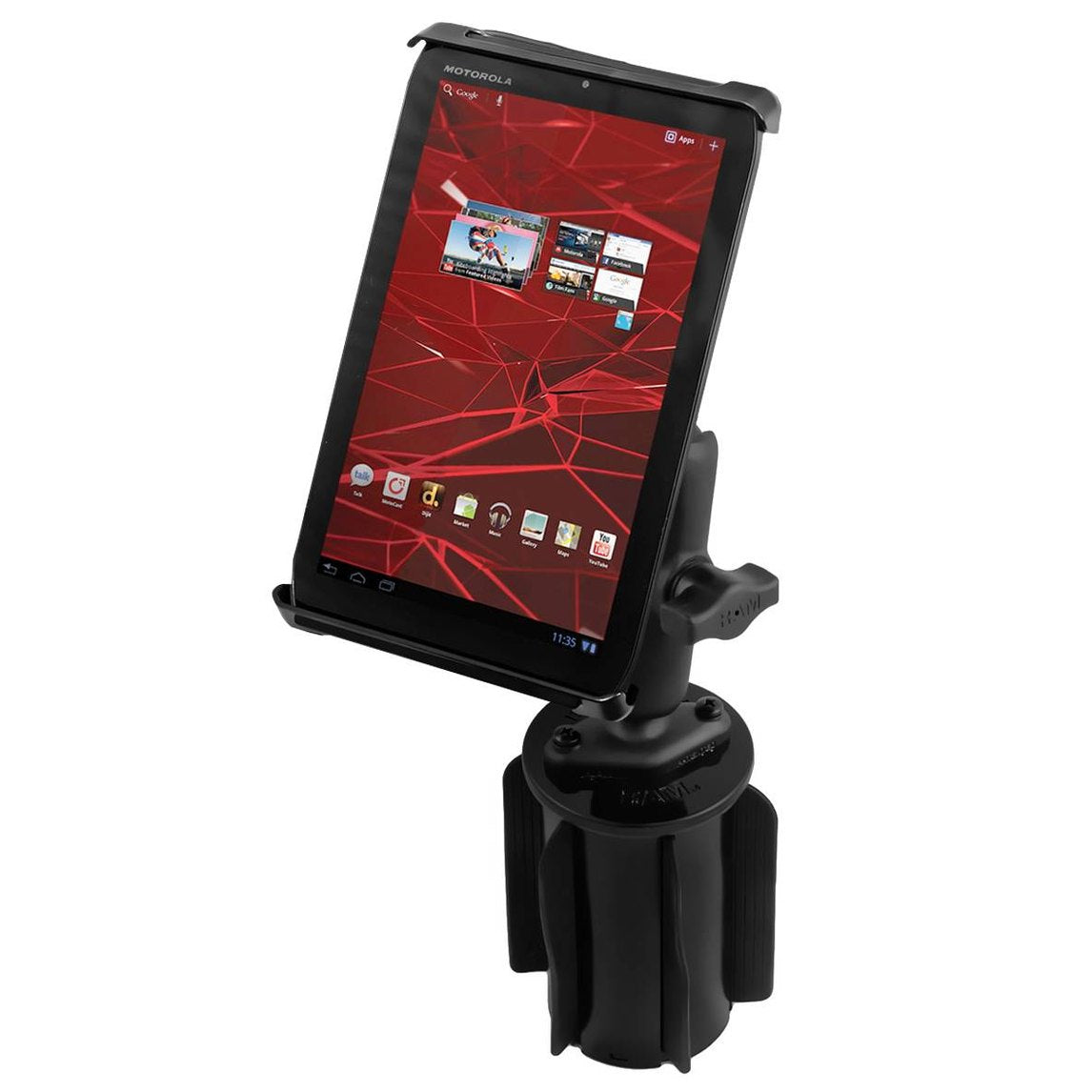

RAM Tab-Tite Small Tablet Holder

The RAP-299-3-B-102-TAB-SM consists of the RAM-A-CAN cup holder base, double socket system, Tab-
Tite cradle and 3 sets of cup ends to accomodate for tablets of various sizes. Included are support
fins that flex, making the cup holder base conform to most vehicle cup holders. The mount is
designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at
both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing
angles. With 3 sets of interchangeable cup ends, ranging from different sizes and features, you can
fit the cradle to your tablet for a near custom fit. This spring loaded design makes it easy to load
and unload your tablet, along with keeping it secure while on the go. Cup ends are designed to
optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other
ports, your tablet can be used just as it was intended. Perfect for stationary or on the go
applications, this new RAM product is just what you need to get the most out of your mobile device.
Compatible with any vehicle cup holder with an inside diameter range of 2.57" to 3.5".

HARDWARE INCLUDED
Assembly Hardware

PRODUCT DIMENSIONS
Overall Height: 10.41"

HOLDER DIMENSIONS
Height Range: 7" - 10"
Width Range: 4" - 5.31"
Depth Range: .44" - 1.06"

WEDGE DIMENSIONS
Fits cup holders between 2.57" - 3.5" inside diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
High strength composite

PACKAGING TYPE
Retail Bag

WEIGHT
2.51 lbs.
