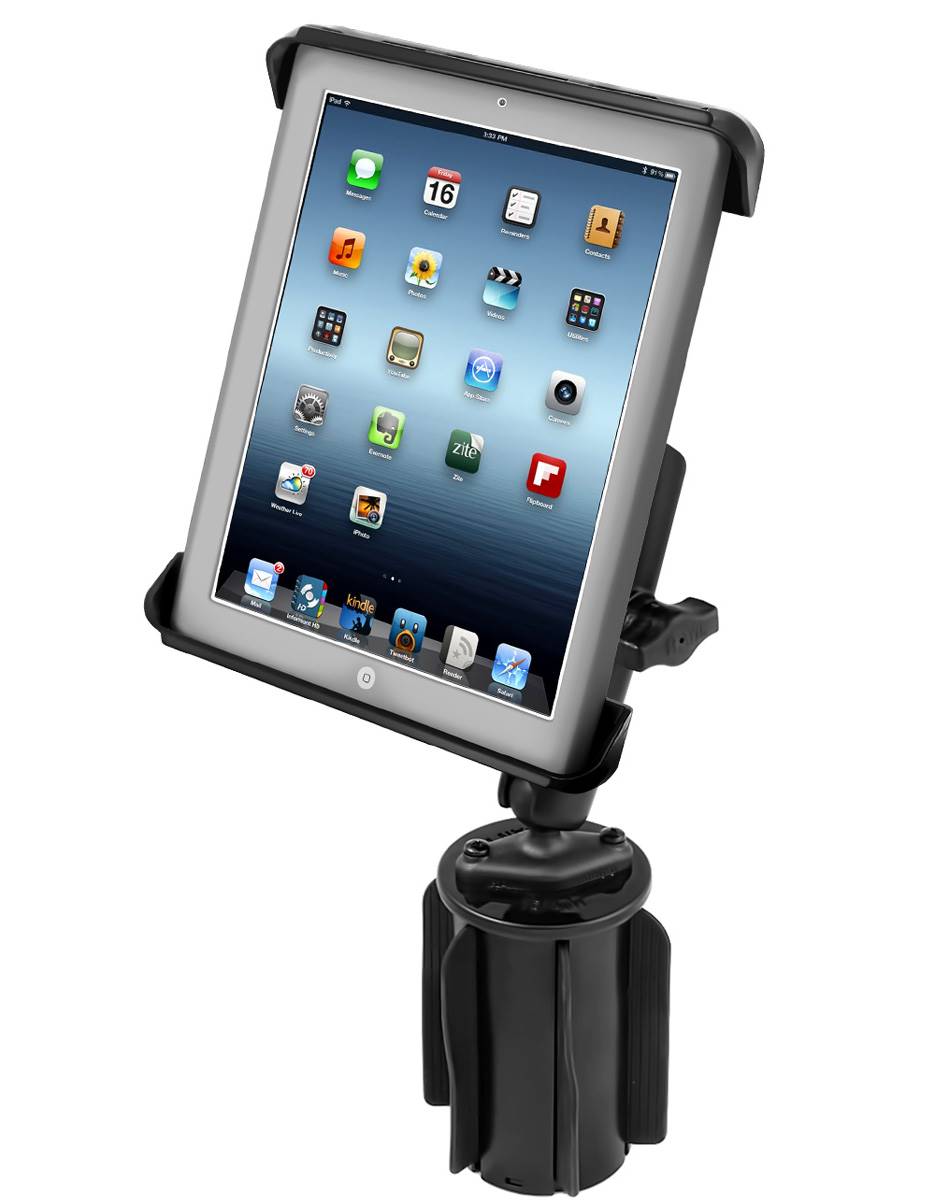

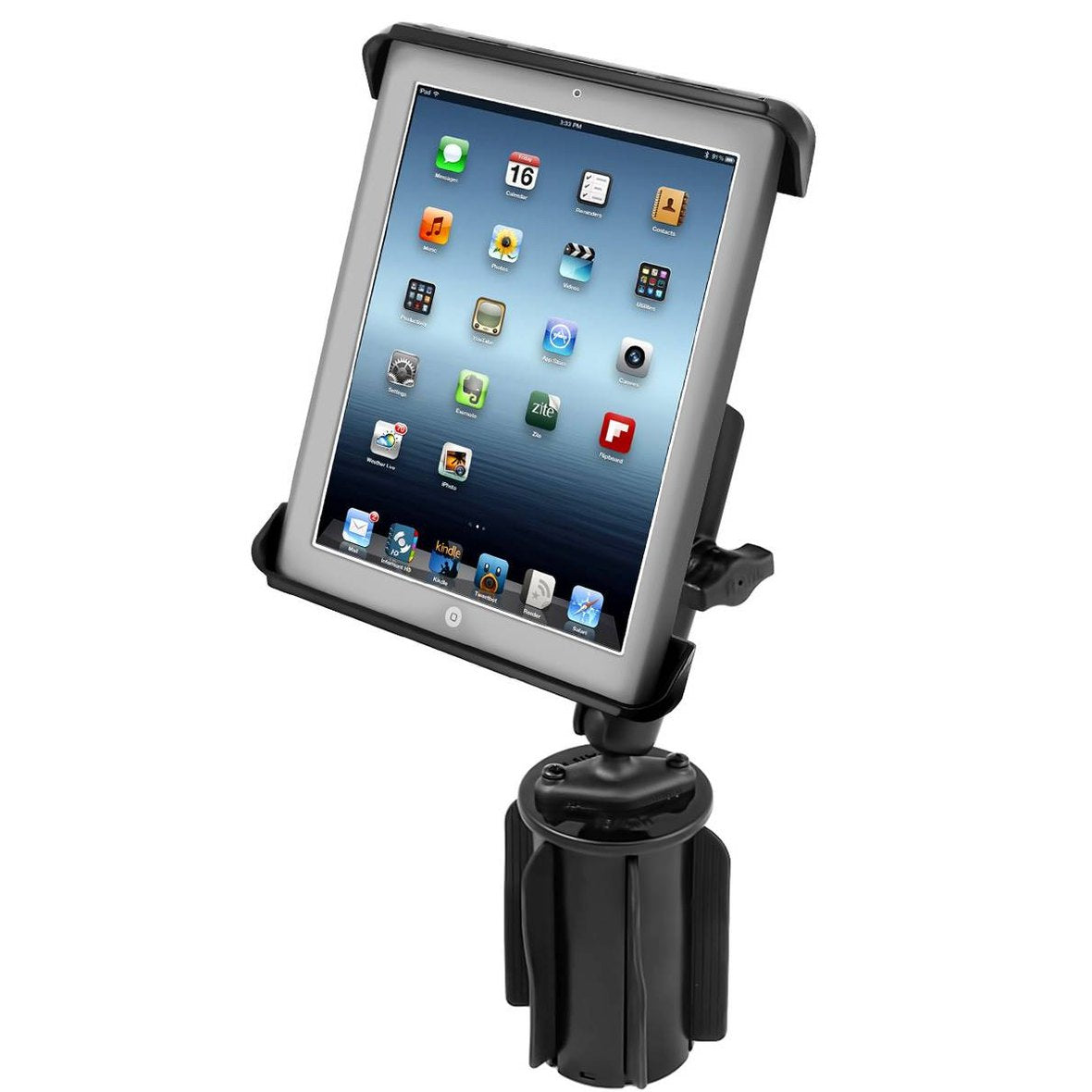

RAP-299-3-C-TAB3U_RAM Tab-Tite Holder with RAM-A-CAN II

The RAP-299-3-C-TAB3U consists of the RAM-A-CAN II cup holder base, LONG double socket arm, round
base adapter and Tab-Tite universal clamping cradle. The cup holder mount includes a 6" flex
mounting feature. A durable composite shell construction and soft fins that can be trimmed to fit
makes the cup holder mount one of the most portable and versatile “Go Anywhere” products offered.
The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has
adjustment points at both ends of the double socket arm; this allowing for almost infinite
adjustment and perfect viewing angles. The spring loaded Tab-Tite cradle makes it easy to load and
unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are
designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power,
and other ports, your tablet can be used just as it was intended. The included backplate is
interchangeable with various size support cups, making it compatible with numerous tablet models.
New detachable support cups are the only components needed for purchase, attach to the backplate for
support of your new tablet. Compatible with any vehicle cup holder with an inside diameter range of
2.57" to 3.5". Cradle Dimensions: Height: 8.5" to 11.125" Width: 6.38" to 7.75" Depth: 0.13" to
0.56"

HARDWARE INCLUDED
Assembly Hardware

PRODUCT DIMENSIONS
Overall Height: 12.93"

HOLDER DIMENSIONS
Height Range: 8.5" - 11.125"
Width Range: 6.38" - 7.75"
Depth Range: .13" - .56"

WEDGE DIMENSIONS
Fits cup holders between 2.57" - 3.5" inside diameter

SOCKET-TO-SOCKET LENGTH
5.31"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
2.35 lbs.
