RAM X-Grip Large Phone Mount with RAM-A

OVERVIEW
Optional Tether Included

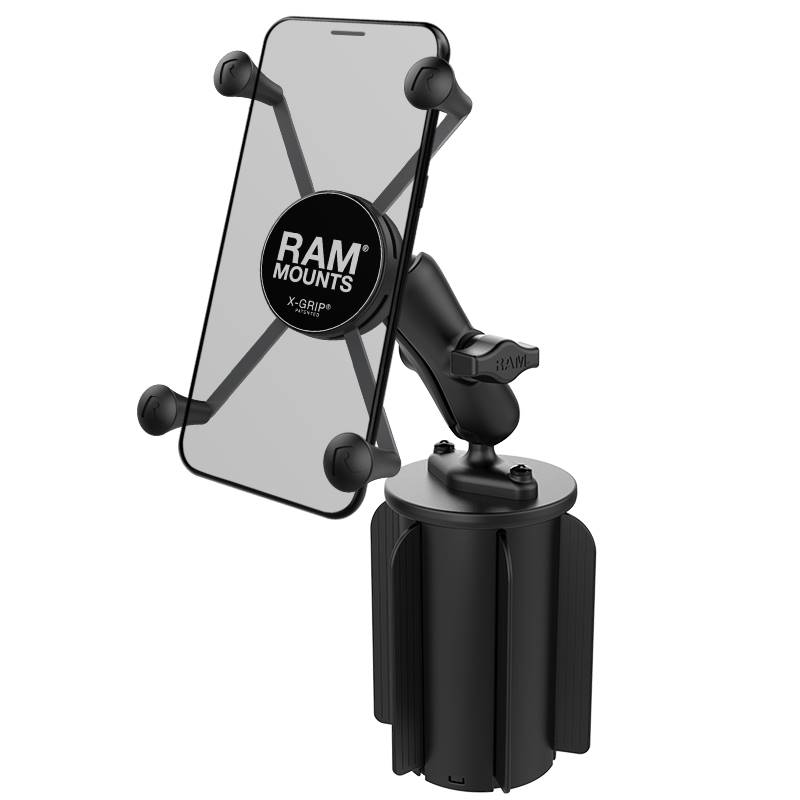

The RAP-299-3-UN10U consists of the RAM-A-CAN

cup holder base, double socket system and universal spring loaded X-Grip

cradle for large phones and phablets. Included are support fins that flex, making the cup holder base conform to most vehicle cup holders. The mount is designed with a RAM B size 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip

cradle expands and contracts, allowing for a perfect custom fit of your phone or phablet.

The X-Grip

includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Compatible with any vehicle cup holder with an inside diameter range of 2.57" to 3.5".




Cradle Dimensions

Minimum Width = 1.75" (Minimum Height = 5.5")
Maximum Width = 4.5" (Minimum Height = 3.25")
Depth = 0.875"

HARDWARE INCLUDED
Assembly Hardware
(1) Optional Tether
(1) Glue Tube for Rubber Caps

PRODUCT DIMENSIONS
Overall Height: 10.8"

HOLDER DIMENSIONS
Width Range: 1.75" - 4.5"
Depth Range: .875" max

WEDGE DIMENSIONS
Fits cup holders between 2.57" - 3.5" inside diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
High strength composite
Stainless steel

PACKAGING TYPE
Poly Bag

WEIGHT
1.65 lbs.
