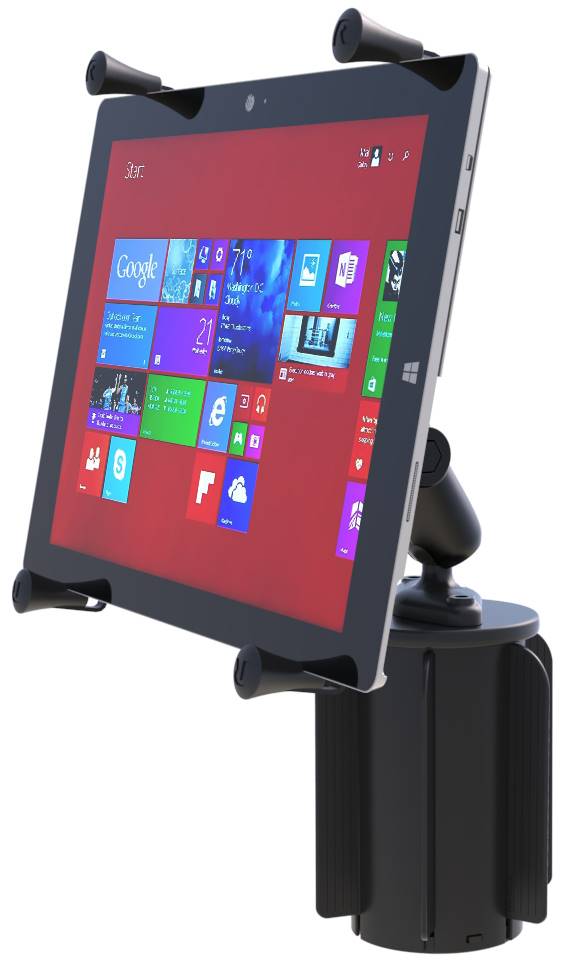

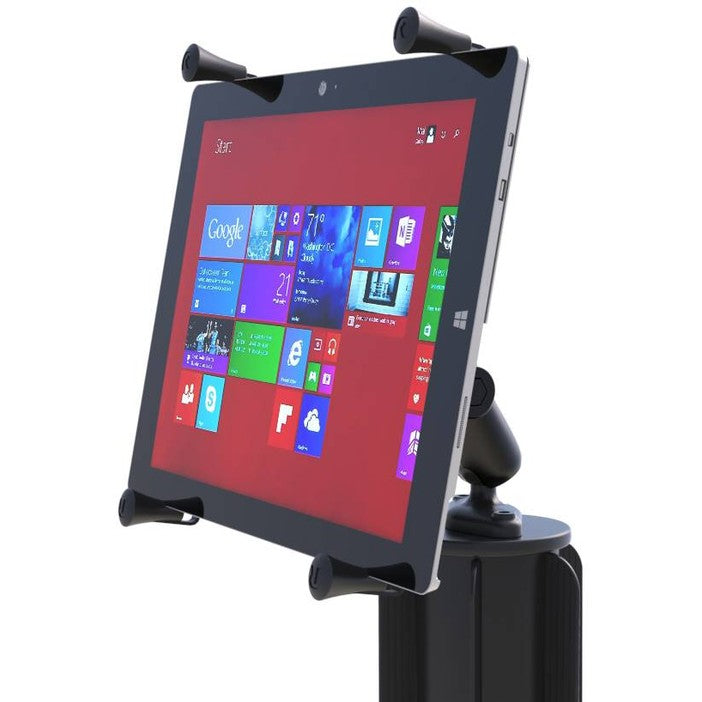

RAP-299-3-UN11U_RAM X-Grip with RAM-A-CAN II Cup Holder

The RAP-299-3-UN11U consists of the RAM-A-CAN cup holder base, double socket arm and universal
X-Grip cradle. Included are support fins that flex and can be trimmed, making the cup holder base
conform to most vehicle cup holders. The mount is designed with a RAM 1" diameter patented rubber
ball and socket system that has adjustment points at both ends of the double socket arm, allowing
for almost infinite adjustment and perfect viewing angles. The X-Grip cradle is compatible with
handheld devices that will fit the dimensions listed below. It is important to verify the dimensions
of your handheld device with a case/sleeve/skin when determining the overall size. Compatible with
any vehicle cup holder with an inside diameter range of 2.57" to 3.5".

HARDWARE INCLUDED
Assembly Hardware

PRODUCT DIMENSIONS
Overall Height: 11"

HOLDER DIMENSIONS
Max Height: 10.25" (using optional supports)
Width Range: 7.25" - 8.75"
Max Depth: .875"

WEDGE DIMENSIONS
Fits cup holders between 2.57" - 3.5" inside diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Includes RAM-A-CAN II universal cup holder base, medium length B size RAM double socket arm, and
RAM X-Grip tablet holder

Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet;
fits most 12" tablets

Made of powder-coated, marine-grade aluminum and high-strength composite for durability and
reliability in the most demanding environments

Backed by a lifetime warranty


WEIGHT
3.0 lbs.
