RAP-299-3-UN7BU_RAM X-Grip Phone Mount with RAM-A-CAN I

OVERVIEW
Optional Tether Included

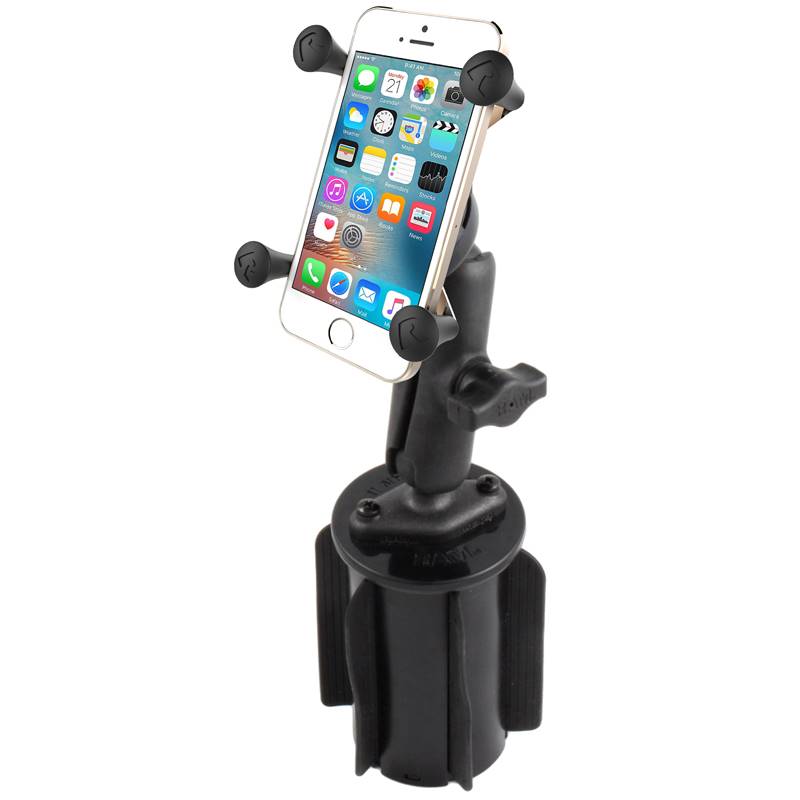

The RAP-299-3-UN7BU consists of the RAM-A-CAN

cup holder base, double socket arm and universal X-Grip

cradle. The cup holder base includes a 6" flex mounting feature. A durable composite shell construction and soft fins that can be trimmed to fit makes the cup holder mount one of the most portable and versatile “Go Anywhere” products offered. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included X-Grip

cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip

cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip

is the cell phone cradle evolved.

The X-Grip

includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Compatible with any vehicle cup holder with an inside diameter range of 2.57" to 3.5".




Cradle Dimensions

Minimum Width = 1.875" (Minimum Height = 4.25")
Maximum Width = 3.25" (Minimum Height = 2.25")
Depth = 0.875"

HARDWARE INCLUDED
Assembly Hardware
(1) Optional Tether
(1) Glue Tube for Rubber Caps

PRODUCT DIMENSIONS
Overall Height: 10.8"

HOLDER DIMENSIONS
Width Range: 1.875" - 3.25"
Depth Range: .875" max

WEDGE DIMENSIONS
Fits cup holders between 2.57" - 3.5" inside diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
High strength composite
Stainless steel

PACKAGING TYPE
Poly Bag

ADDITIONAL INFORMATION


WEIGHT
1.65 lbs.
