RAP-401-202U RAM Tough-Claw Large Clamp Double Ball Mou

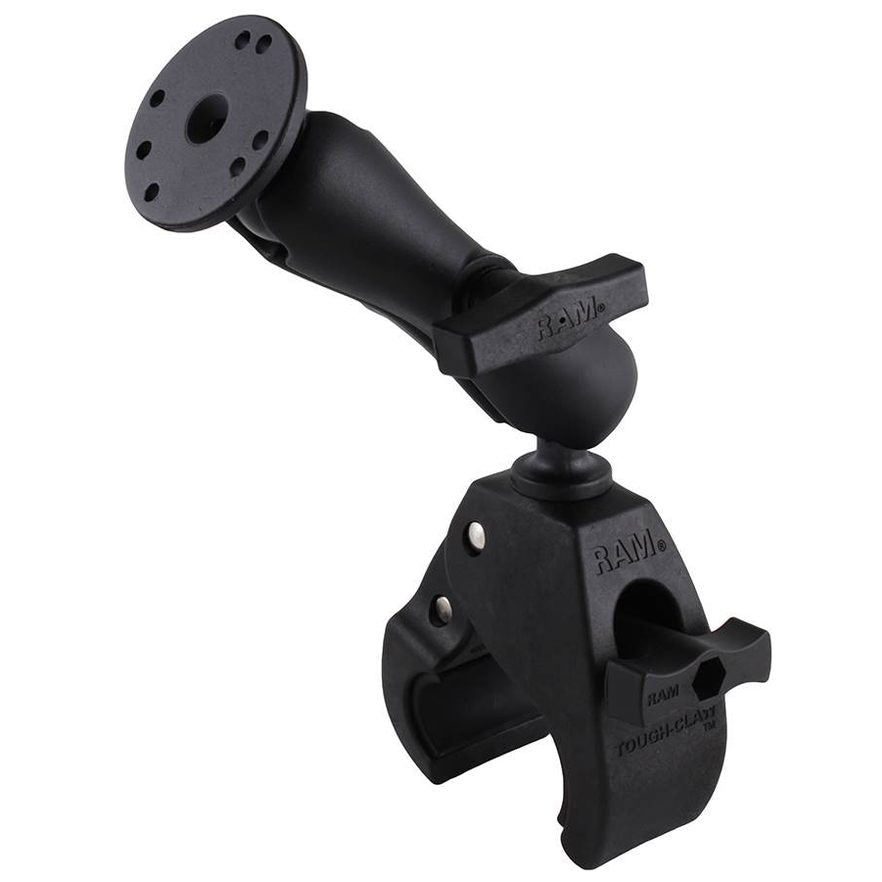

The RAP-401-202U consists of the large Tough-Claw base, double socket arm and round base adapter.
The RAM Tough-Claw is the perfect mounting base for quick and easy tool-less installation and
removal on round, square, odd shaped rails and bars. The Tough-Claw can be clamped on rails from 1"
- 2.25" outer diameter. The round base adapter contains the industry standard universal AMPS hole
pattern, which will connect to a large variety of RAM Mount and third party cradles. The mount is
designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points
at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect
viewing angles. Clamping Range (Rail/Tube Surfaces): 1" to 2.25" Clamping Range (Flat Surfaces): 0"
to 2.2"

PRODUCT DIMENSIONS
Overall Height: 11.5"

CLAMP RANGE
1" - 2.25" diameter
0" - 2.2" flat surfaces

SOCKET-TO-SOCKET LENGTH
4.66"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE
2.5" Diameter

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Includes large version of the RAM Tough-Claw, medium length C size RAM double socket arm, and
2.5" round plate compatible with several RAM device holders and cradles

Large version of the RAM Tough-Claw base is designed to quickly clamp to round, square, and odd-
shaped rails and bars ranging from 1" to 2.25" in outer diameter; rubber pads provide stable
gripping and protection of mounting surface

Made of powder-coated, marine-grade aluminum and high-strength composite for durability and
reliability in the most demanding environments

Backed by a lifetime warranty


WEIGHT
2.0 lbs.
