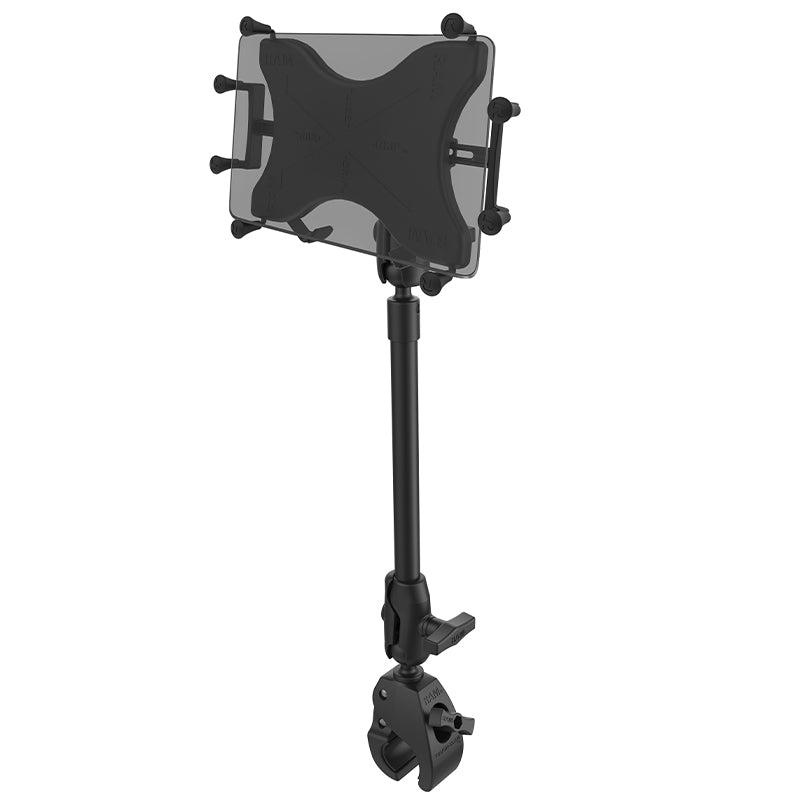

RAP-401-9-BC-UN9U RAM X-Grip with RAM Tough-Claw 9" Pip

This bedside mounting kit for 9�-10� tablets includes the large RAM Tough-Claw clamping base, 9�
extension pole, swiveling double socket arm, and the RAM X-Grip universal tablet holder. The RAM
Tough-Claw attaches with the twist of a knob to bedside rails and bars that range from 1� to 2.25�
in outer diameter. Both a 9� long extension pole and swiveling double socket arm can be easily
adjusted to keep the RAM X-Grip universal tablet holder in an ideal viewing and operating
position. When not in use, the tablet holder and extension pole can simply be rotated away from the
bed.

HARDWARE INCLUDED
Assembly Hardware

PRODUCT DIMENSIONS
Overall Height: 26"

HOLDER DIMENSIONS
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"

CLAMP RANGE
1" - 2.25" diameter
0" - 2.2" flat surfaces

BALL/SOCKET SIZE
Bottom of Arm: C Size (1.5")
Top of Arm: B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet;
fits most 9"-10" tablets and includes optional device safety tether

Large version of the RAM Tough-Claw base is designed to bedside rails and bars ranging from 1" to
2.25" in outer diameter; rubber pads provide stable gripping and protection of mounting surface

Swiveling double socket arm and extension pole allows for ideal tablet placement

Backed by a lifetime warranty
