RAP-403U_RAM Cable Manager with AMPS Hole Pattern for E
RAP-403U_RAM Cable Manager with AMPS Hole Pattern for E
Regular price
$14.99 USD
Regular price
Sale price
$14.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
C Size 1.5"
UPC:
793442944208
Mfg Part #:
RAP-403U
Availability:
In Stock
Part Number:
RAP-403U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

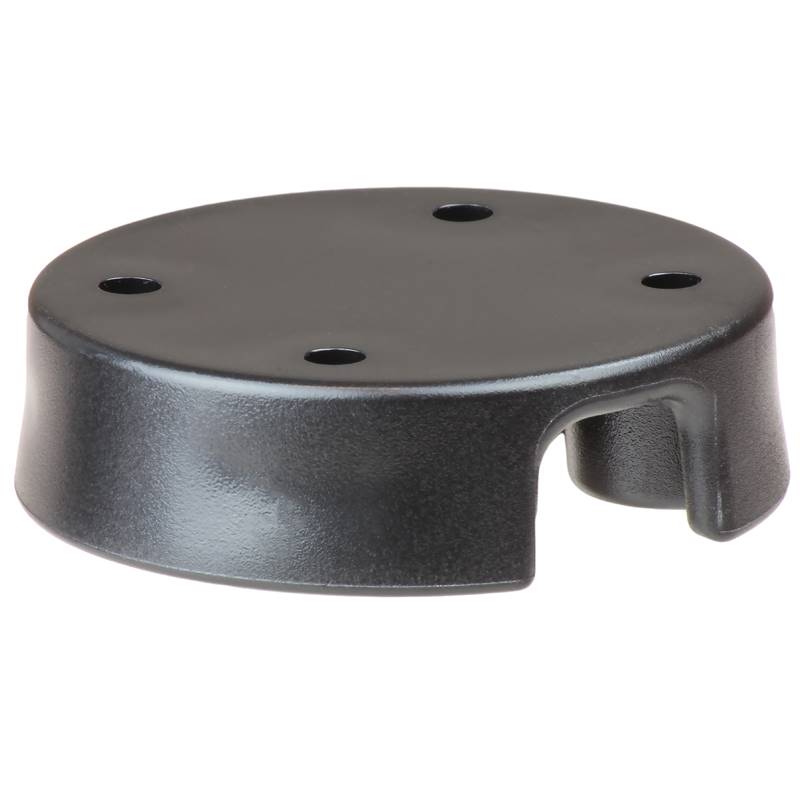

The RAM Cable Manager creates an integrated route for electrical wiring and cleanly covers
installation holes. A great addition to any surface mounting application. The RAM Cable Manager is
made of glass filled nylon which has the benefit of creating a barrier between the RAM Surface Mount
and the attachment area; minimizing vibration while reducing fiberglass and gel-coat damage. This
item will work with any of the 2 5/8" round plates with AMPs hole pattern.
HARDWARE INCLUDED
(4) #10-24 x 2" Machine Screws
(4) #10-24 Nylock Nuts
(4) #10 Fender Washers
PRODUCT DIMENSIONS
Cable Slot Height: .56"
Cable Slot Width: .7"
CLAMP RANGE
Max mounting surface thickness: .68"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
MATERIALS
High strength composite
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
To prevent galling of threads during assembly, it is imperative that all threads are lubricated with
oil prior to assembly.
WEIGHT
0.25 lbs.
installation holes. A great addition to any surface mounting application. The RAM Cable Manager is
made of glass filled nylon which has the benefit of creating a barrier between the RAM Surface Mount
and the attachment area; minimizing vibration while reducing fiberglass and gel-coat damage. This
item will work with any of the 2 5/8" round plates with AMPs hole pattern.
HARDWARE INCLUDED
(4) #10-24 x 2" Machine Screws
(4) #10-24 Nylock Nuts
(4) #10 Fender Washers
PRODUCT DIMENSIONS
Cable Slot Height: .56"
Cable Slot Width: .7"
CLAMP RANGE
Max mounting surface thickness: .68"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
MATERIALS
High strength composite
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
To prevent galling of threads during assembly, it is imperative that all threads are lubricated with
oil prior to assembly.
WEIGHT
0.25 lbs.
Dimensions:
- Cable slot height: 0.56”
- Cable slot width: 0.7”
- Max mounting surface thickness: 0.68”
- Material:High Strength Composite and Glass Filled Nylon
- Compatible RAM® Mounts:Compatible with all 1" and 1.5" diameter ball bases that contain the universal AMPs hole pattern.
- Note:The "U" in the part number reflects product packaged in poly bag. RAM ball base not included with purchase. To prevent galling of threads during assembly, it is imperative that all threads are lubricated with oil prior to assembly.
- Weight:0.25 lbs.
