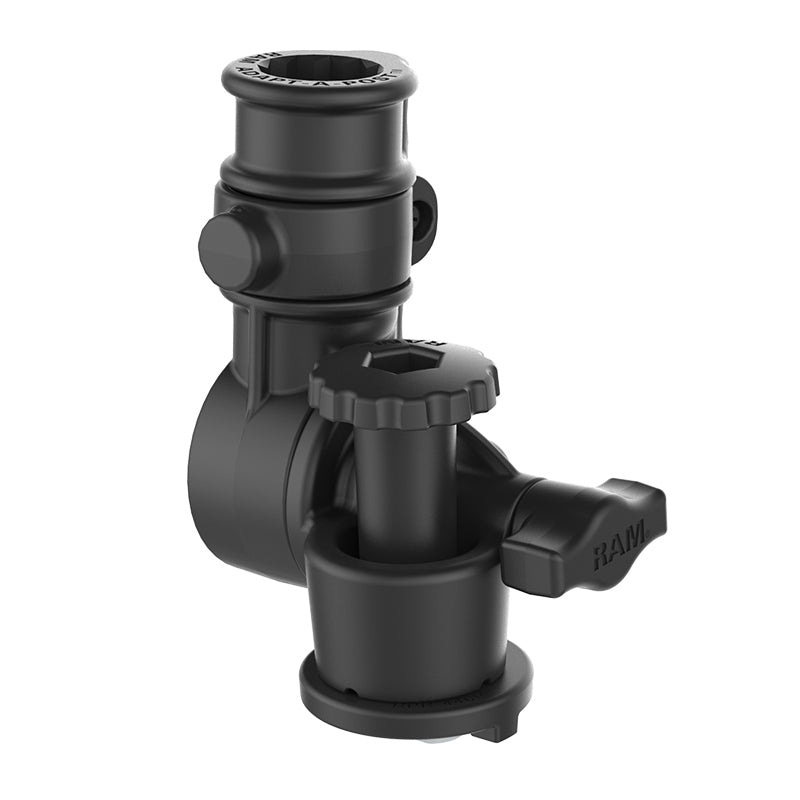

RAP-411-AAPU RAM Track-Node Base with RAM Adapt-A-Post

The RAM Track-Node is a ratcheting, highly adjustable track base designed to accommodate both
fishing rod holders and the RAM Tough-Pole action camera mount. This version includes the RAM
Adapt-A-Post that offers a unique locking mechanism, allowing the user to insert a post from any
direction. Simply drop in your post � no alignment necessary � and you�re ready. To remove, simply
press and hold the side button. With the RAM Track-Node, a quick twist of the knob allows you to
easily swing your rod holder, action camera, or other device in and out of your vessel. To install,
slide the RAM Track-Node base into your track mount system thanks to the connected T-bolt and turn
the circular knob to tighten in place. To achieve 360-degree rotation, just loosen the circular
knob.

HARDWARE INCLUDED
Assembly Hardware
(1) Friction Track Washer
(1) Pin-Lock Track Washer

PRODUCT DIMENSIONS
Overall Width: 3.8"
Overall Height: 4.7"

T-BOLT DIMENSIONS
.48" x .95"

PLATE SIZE
1.85"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
RAM Track-Node base easily installs to most track systems via connected T-bolt; allows for
360-degree rotation

RAM Adapt-A-Post allows posts to be inserted from any direction; can be tilted to achieve ideal
angle

Made of high-strength composites for durability and reliability in the most demanding environments

Backed by a lifetime warranty
