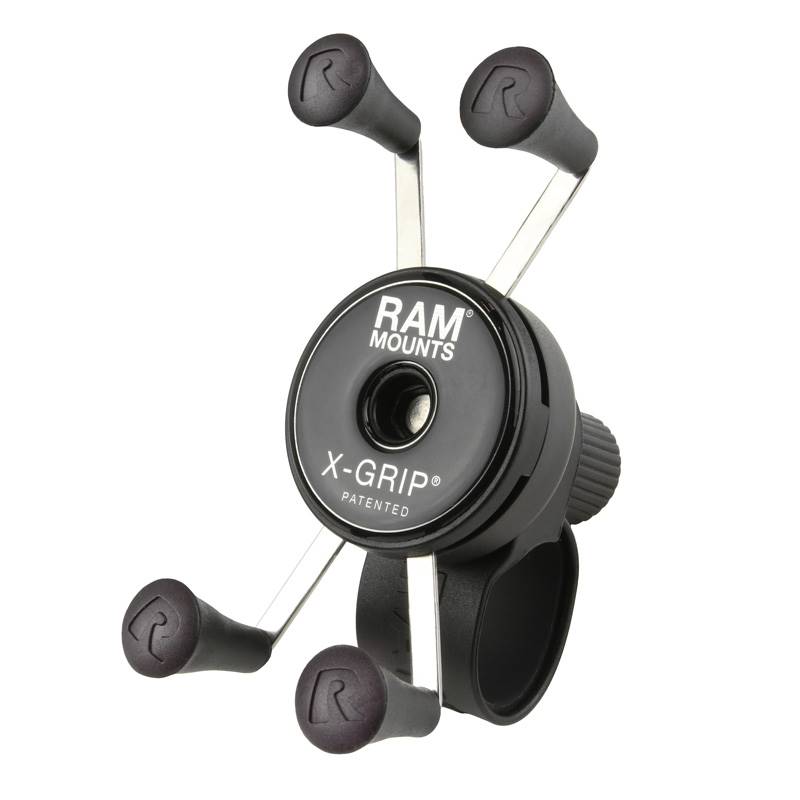

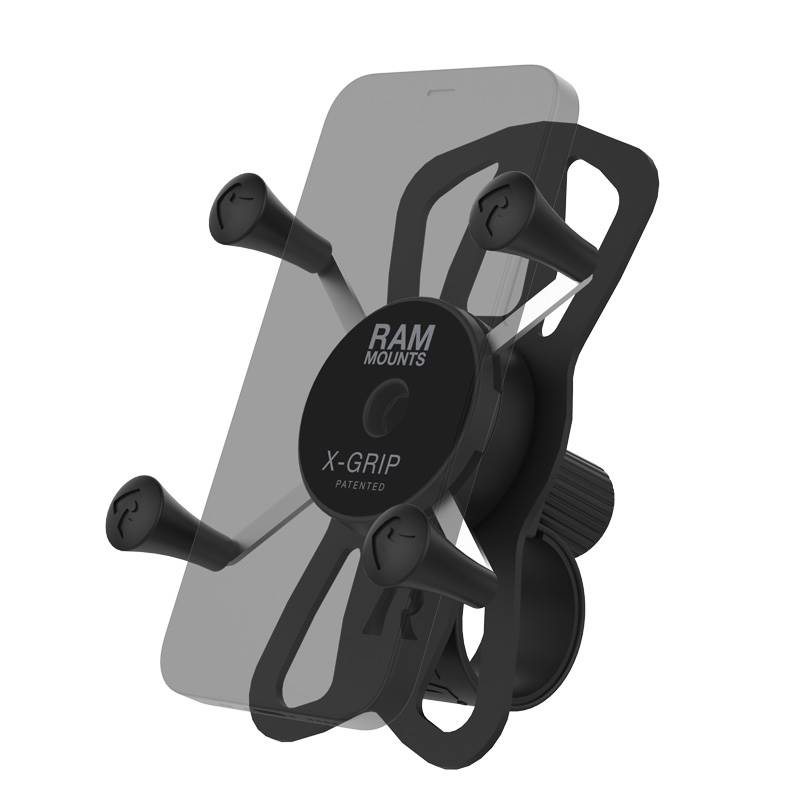

RAP-460-UN7U RAM X-Grip Phone Mount with RAM Tough-Stra

The RAM Universal Wheelchair Base is a feature-rich mounting
platform supporting any phone, tablet or cup holder for any wheelchair armrest or seat track. With the

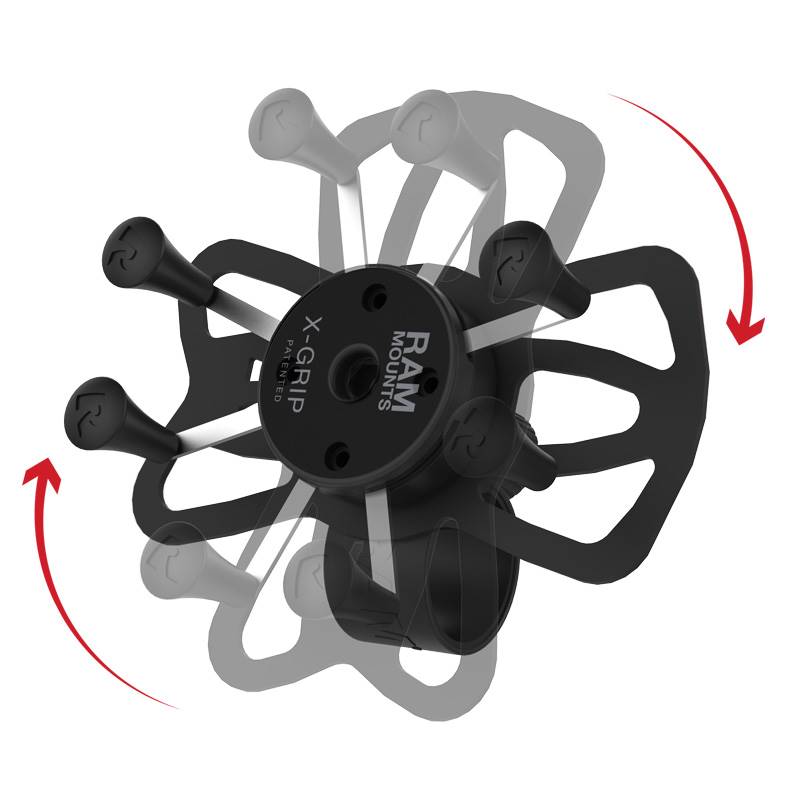

turn of a single knob the user can swivel the entire mounting system in and out of position without
having to adjust any other mounting components. A quick release button is integrated into the base which
allows the user to easily remove or insert the mount from the chair; also a great option for swapping
out one device mount for another. The compact design of the RAM Universal Wheelchair base
keeps the mounting system within the chair's armrest width, offering peace of mind when navigating
through tight spaces and doorways. All RAM mounting compontents are backed by a lifetime
warranty.

FEATURES

Universal fitment for all wheelchairs with tracks on seat and/or armrest, including Invacare Armrests

Easy swivel and quick release capabilities without changing ball and socket positioning

Compact design keeps mount within armrest width

Durable components support any phone or tablet mount with a short or long extension

Backed by a lifetime warranty

Hardware Included
(2) #10-32 T-Nuts (2) #10-32 Flat Weld Nuts (2) #10-32 x 7/16 INCHES Machine Screws
(2) #8-32 x 3/4 INCHES Machine Screws (2) #8-32 Nylock Nuts (2) #8 Washers

T-Bolt Dimensions
Large: .48 INCHES x .95 INCHES Small: .375 INCHES x .593 INCHES

Hole Pattern
2-Hole AMPS: 1.912 INCHES

Materials
High strength composite

Packaging Type
Retail Bag

Weight
0.41 lbs.
