RAP-AAPR-WCT-114P-18-UN9U RAM Tablet Mount for Wheelcha

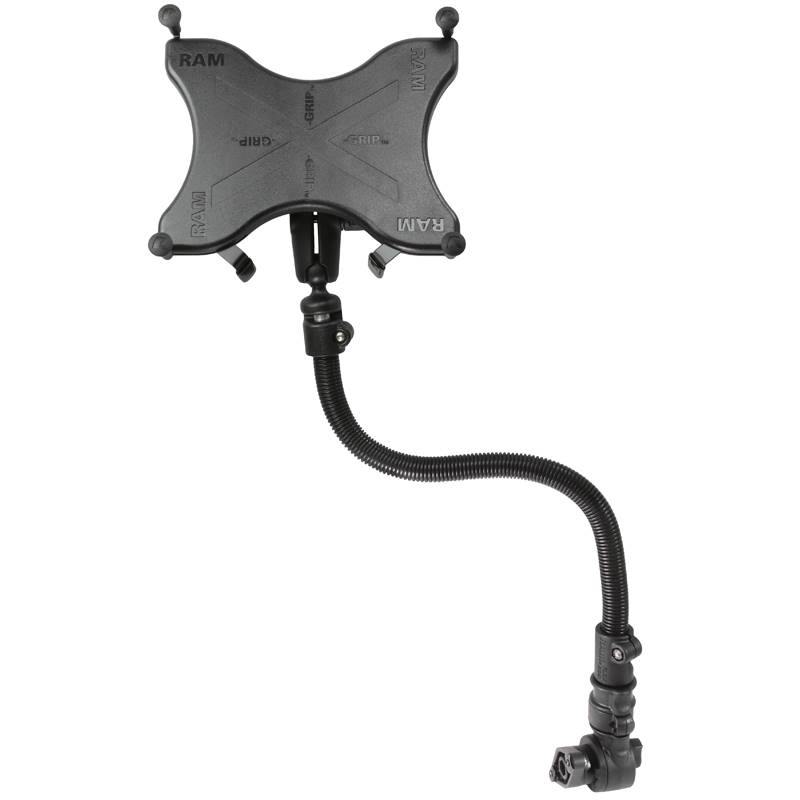

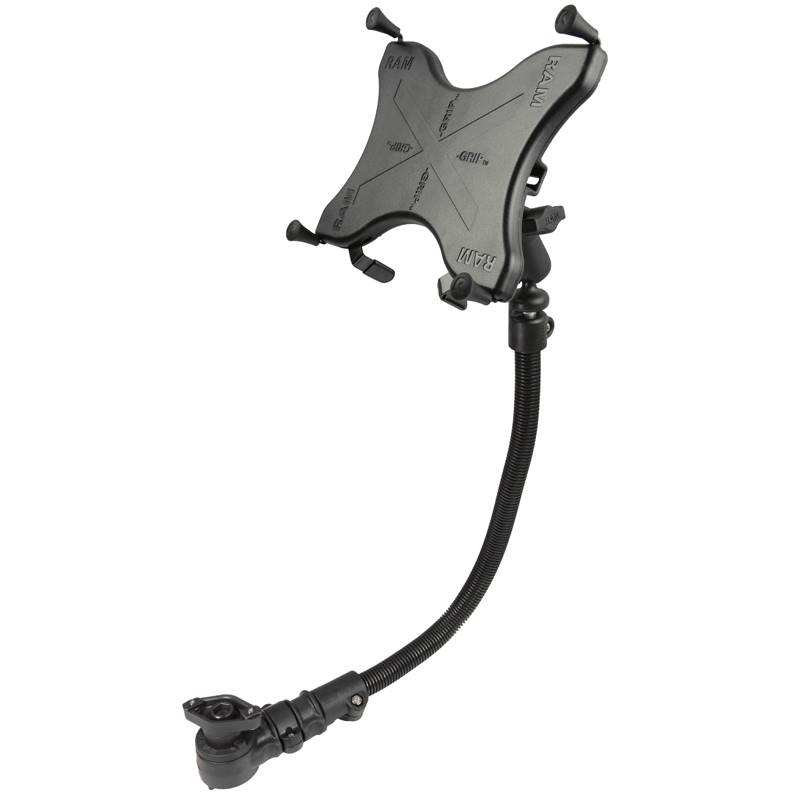

The RAM Phone Mount with Quick Release & Swivel is the
perfect solution for mounting virtually any phone to a wheelchair armrest track or Invacare armrest. The
system consists of the RAM X-Grip phone holder, double ball & socket extension
arms, ball post adapter, and the RAM Universal Wheelchair Base. The universal base offers a
quick disconnect feature of the entire mount without having to adjust any ball and socket components.

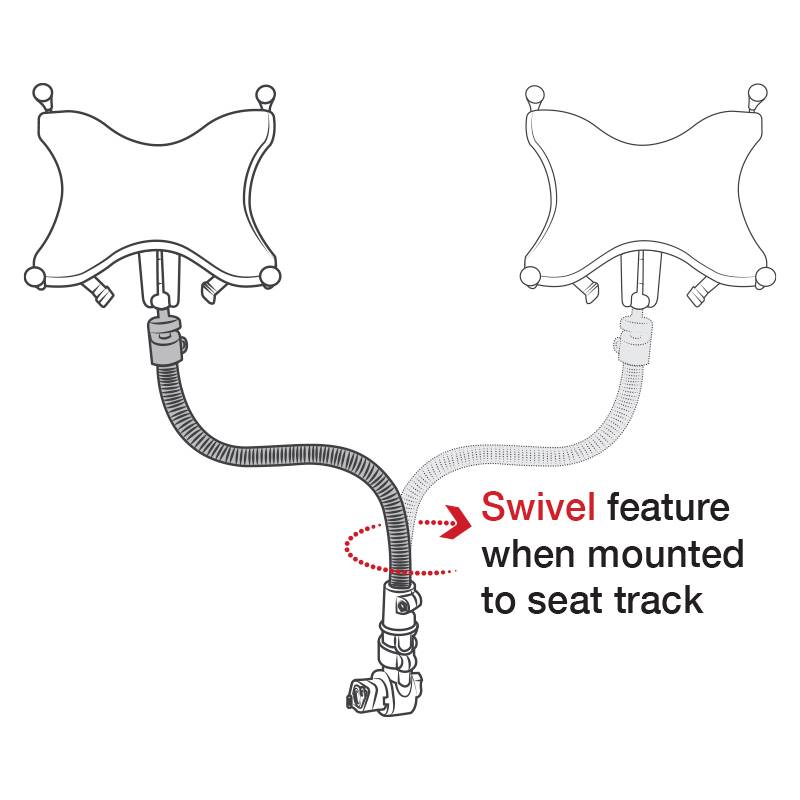

The base also features an adjustable knob that lets you swivel the mount in and out of position with
ease. The compact design of the RAM Universal Wheelchair mounting system stays within the
chair's armrest width, offering peace of mind when navigating through tight spaces and doorways. All RAM
mounting compontents are backed by a lifetime warranty.

FEATURES

Universal fitment for all wheelchairs with tracks on seat and/or armrest, including Invacare Armrests

Easy swivel and quick release capabilities without changing ball and socket positioning

Compact design keeps mount within armrest width

Supports most any phone with or without a case at virtually any angle with optional ball extension

Backed by a lifetime warranty

Hardware Included
Assembly Hardware (2) #10-32 T-Nuts (2) #10-32 Flat Weld Nuts (2) #10-32
x 7/16 INCHES Machine Screws (2) #8-32 x 3/4 INCHES Machine Screws (2) #8-32 Nylock Nuts (2) #8 Washers

Holder Dimensions
Width Range: 1.875 INCHES - 3.25 INCHES Depth Range: .875 INCHES max

T-Bolt Dimensions
Large: .48 INCHES x .95 INCHES Small: .375 INCHES x .593 INCHES

Hole Pattern
2-Hole AMPS: 1.912 INCHES

Ball/Socket Size
B Size (1 INCHES)

Weight Capacity
Standard Use: 2 lbs Heavy-Duty Use: 1 lb

Materials
Marine-grade aluminum High strength composite

Packaging Type
Poly Bag

Weight
1.54 lbs.
