RAP-AAPR-WCT RAM Universal Wheelchair Base with Quick R

The RAM Tablet Mount with Quick Release & Swivel is the
perfect solution for mounting virtually any 9 INCHES-10.5 INCHES tablet to any wheelchair armrest track, Invacare
armrest, or wheelchair seat track. The system consists of the RAM X-Grip tablet
holder, B size double socket arm, an 18 INCHES long rigid aluminum rod with post adapter, and the

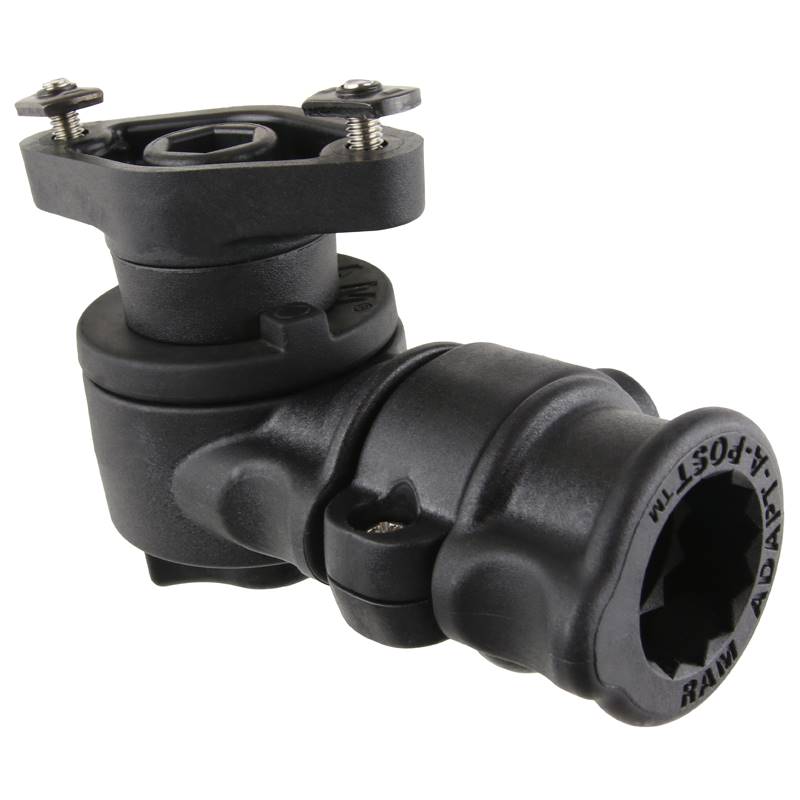

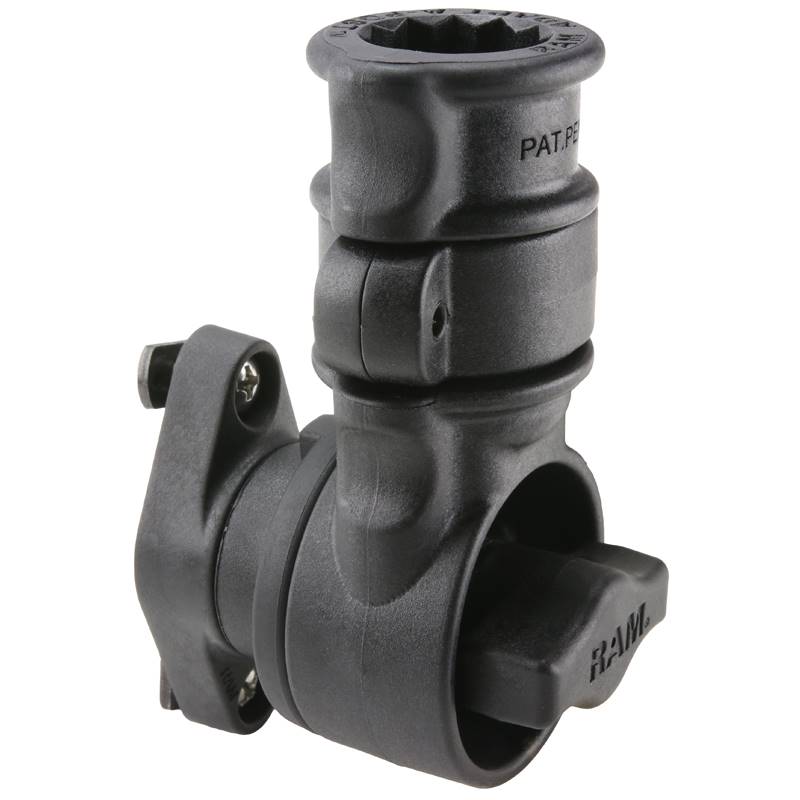

RAM Universal Wheelchair Base. The universal base offers a quick disconnect feature of the
entire mount without having to adjust any ball and socket components. The base also features an
adjustable knob that lets you swivel the mount in and out of position with ease. When mounted to a seat
track, the aluminum rod can be left loose to achieve the same swivel feature. The compact design of the
RAM Universal Wheelchair mounting system stays within the chair's armrest width, offering
peace of mind when navigating through tight spaces and doorways. All RAM mounting compontents
are backed by a lifetime warranty.

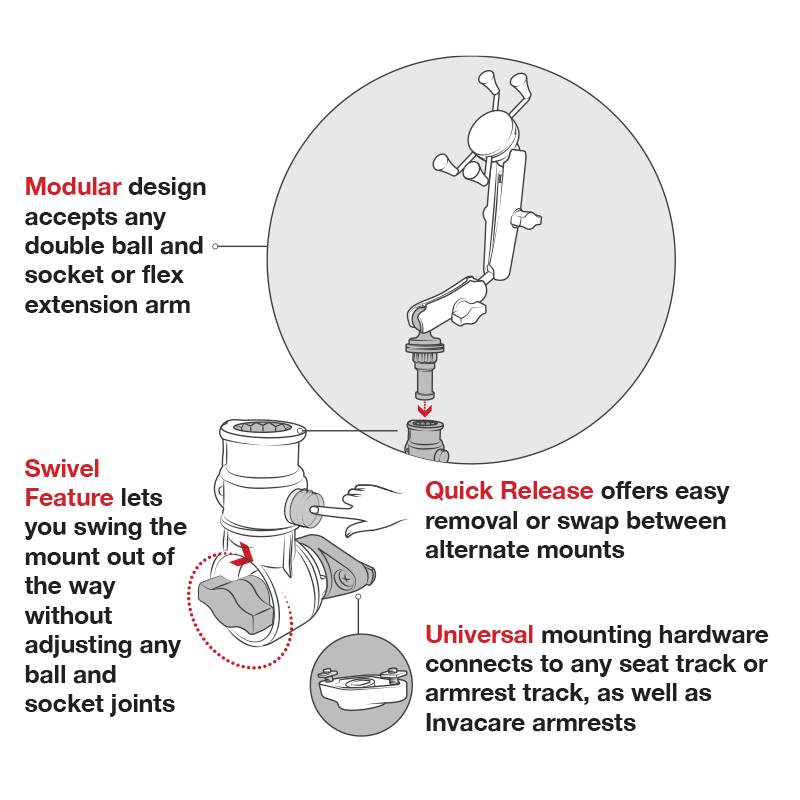

FEATURES

Universal fitment for all wheelchairs with tracks on seat and/or armrest, including Invacare Armrests

Easy swivel and quick release capabilities without changing ball and socket positioning

Compact design keeps mount within armrest width

Supports most any 9 INCHES-10.5 INCHES tablet with or without a case at virtually any angle

Backed by a lifetime warranty

Hardware Included
Assembly Hardware (2) #10-32 T-Nuts (2) #10-32 Flat Weld Nuts (2) #10-32
x 7/16 INCHES Machine Screws (2) #8-32 x 3/4 INCHES Machine Screws (2) #8-32 Nylock Nuts (2) #8 Washers

Holder Dimensions
Max Height: 10.25 INCHES (using optional supports) Width Range: 6.25 INCHES - 8.1 INCHES Max
Depth: .875 INCHES

T-Bolt Dimensions
Large: .48 INCHES x .95 INCHES Small: .375 INCHES x .593 INCHES

Hole Pattern
2-Hole AMPS: 1.912 INCHES

Ball/Socket Size
B Size (1 INCHES)

Weight Capacity
Standard Use: 2 lbs Heavy-Duty Use: 1 lb

Materials
Marine-grade aluminum High strength composite

Packaging Type
Poly Bag

Weight
2.75 lbs.
