RAM Composite Double Ball Mount for Low

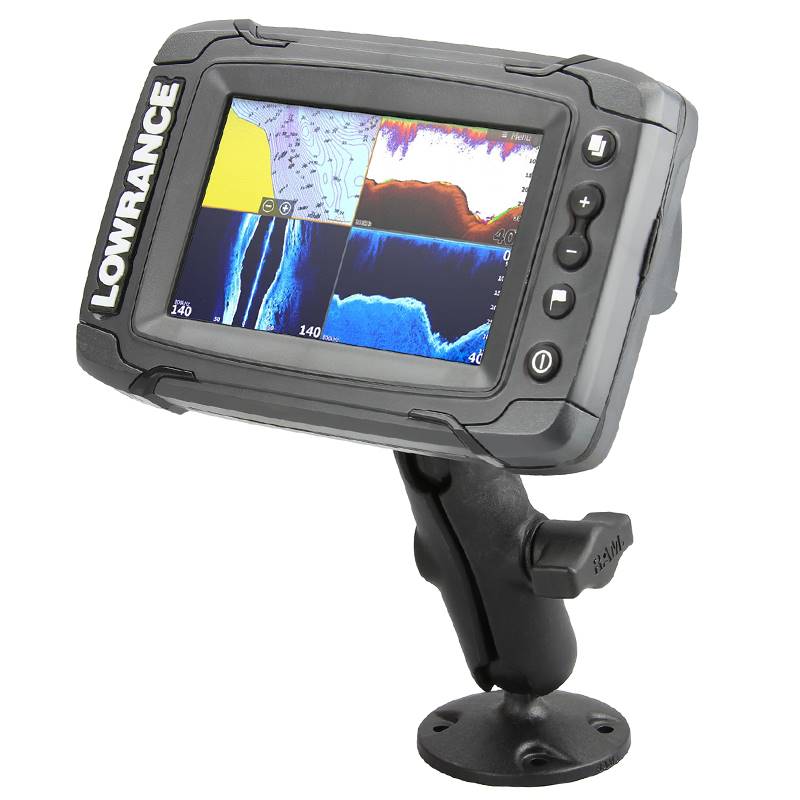

The RAP-B-101U-LO11 consists of a composite 2.5" diameter round base with the universal AMPS hole
pattern, composite B size medium length double socket arm, and adapter base that inserts directly to
the back of Lowrance Elite-4, Mark-4, and Hook 4 fishfinders. The adapter includes a quick release
mechanism, allowing you to remove or transfer your fishfinder in seconds. Each 1" rubber ball
connects to the composite double socket arm, allowing for near-infinite adjustability and the ideal
viewing angle.

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

PLATE SIZE
2.5" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

ADDITIONAL INFORMATION
This product is not compatible with the standard Lowrance Elite-7.

FEATURES:
Complete flat surface, drill-down mounting solution for the Lowrance Elite series with an overall
height of 5"

Includes quick release B size ball adapter for Lowrance marine electronics, medium length B size
double socket arm, and round plate with 1" B size ball; RAM Mounts ball and socket technology
allows for near-infinite adjustability

Made of high-strength composites for durability and reliability in the most demanding environments

Backed by a lifetime warranty


WEIGHT
0.4 lbs.
