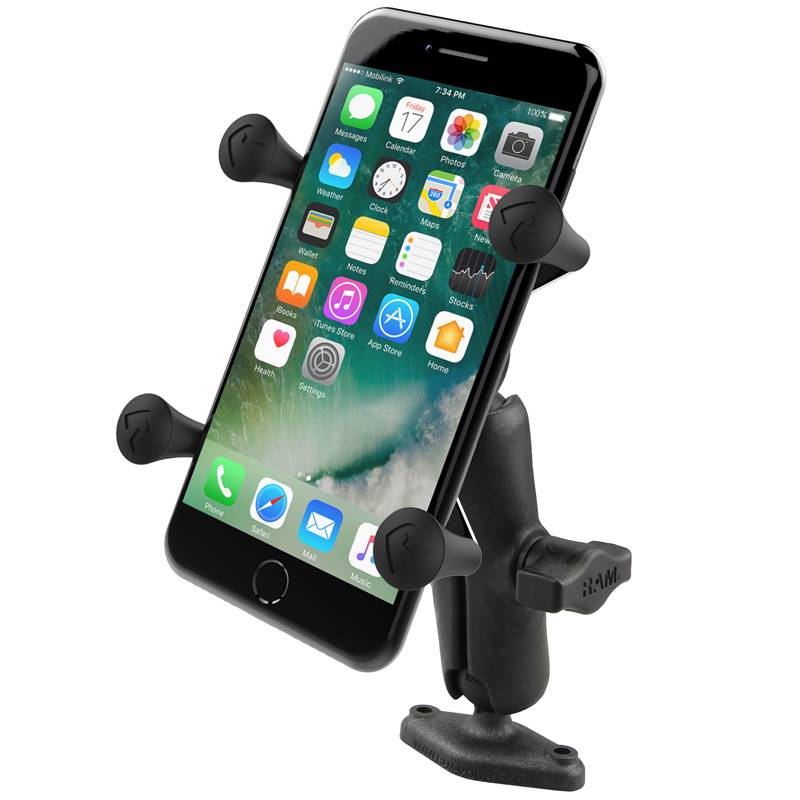

The RAP-B-102-UN7U consists of a composite diamond base, double socket arm and universal spring
loaded X-Grip cradle for cell phones. Designed into the mount is a 1" diameter unique rubber ball
and socket system with adjustment points at the both ends of the socket arm; this with a twist of
the arm knob, allows you to move the X-Grip mount to your optimum viewing position. The 2.43" x
1.31" diamond base has two holes 1.912" from center to center and matches the industry standard AMPS
hole pattern. The included X-Grip cradle has a clean and clever four leg design that sports great
holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip
cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect
complement to the modern sleek interior of today's vehicles, the RAM X-Grip is the cell phone
holder evolved. The X-Grip includes a device tether recommended for outdoor applications. The
cradle is compatible with handheld devices that will fit the dimensions listed below. It is
important to verify the dimensions of your handheld device with a case/sleeve/skin when determining
the overall size.
HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
HOLDER DIMENSIONS
Width Range: 1.875" - 3.25"
Depth Range: .875" max
SOCKET-TO-SOCKET LENGTH
3"
HOLE PATTERN
2-Hole AMPS: 1.912"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
High strength composite
Stainless steel
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
loaded X-Grip cradle for cell phones. Designed into the mount is a 1" diameter unique rubber ball
and socket system with adjustment points at the both ends of the socket arm; this with a twist of
the arm knob, allows you to move the X-Grip mount to your optimum viewing position. The 2.43" x
1.31" diamond base has two holes 1.912" from center to center and matches the industry standard AMPS
hole pattern. The included X-Grip cradle has a clean and clever four leg design that sports great
holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip
cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect
complement to the modern sleek interior of today's vehicles, the RAM X-Grip is the cell phone
holder evolved. The X-Grip includes a device tether recommended for outdoor applications. The
cradle is compatible with handheld devices that will fit the dimensions listed below. It is
important to verify the dimensions of your handheld device with a case/sleeve/skin when determining
the overall size.
HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
HOLDER DIMENSIONS
Width Range: 1.875" - 3.25"
Depth Range: .875" max
SOCKET-TO-SOCKET LENGTH
3"
HOLE PATTERN
2-Hole AMPS: 1.912"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
High strength composite
Stainless steel
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
Purchase Includes:
- (QTY. 1) Optional Tether Included
Cradle Dimensions:
- Minimum Width = 1.875" (Minimum Height = 4.25")
- Maximum Width = 3.25" (Minimum Height = 2.25")
- Depth = 0.875"
- Material:Stainless Steel Components &
High Strength Composite - Ball Size:B Size 1" Rubber Ball
- Rails Dimensions:The zip ties will attach to rails, from a minimum of 0.5" in diameter. Included is a 12 degree tapered shaft for tapered handlebars. Overall length of the each zip tie is 7".
- Note:The "U" in the part number reflects product packaged in poly bag. RAM highly recommends using the provided Tether for all open cockpit applications while using this product.
