RAM Composite Universal Marine Electronic M

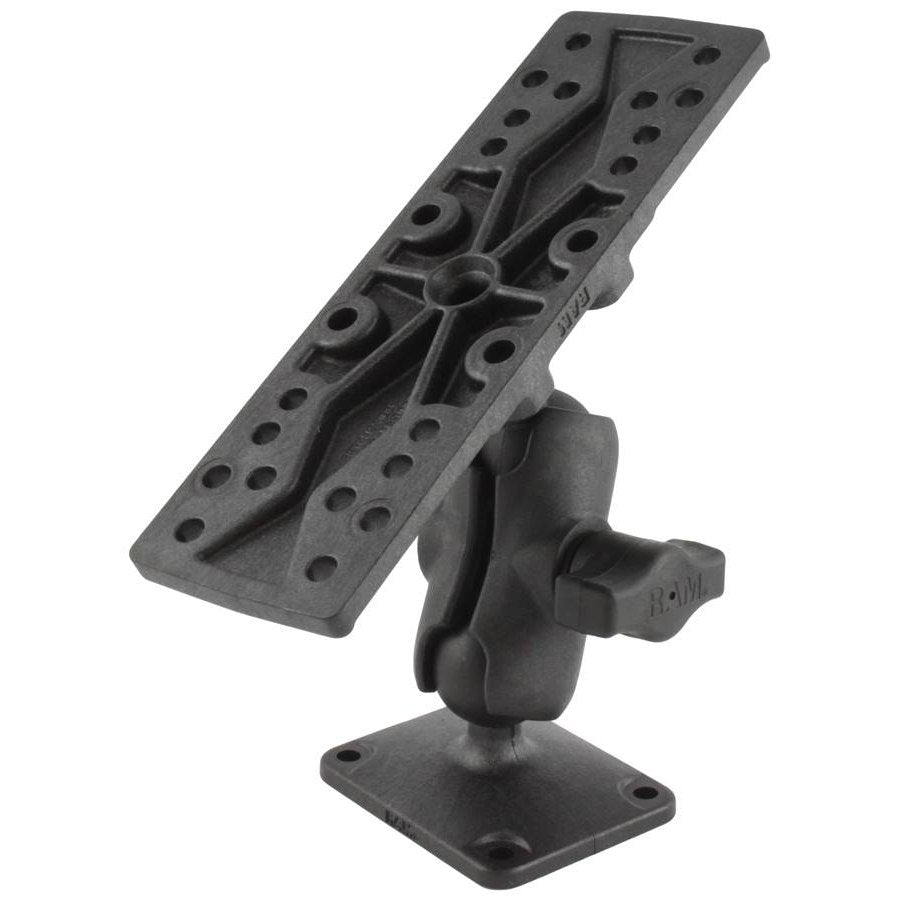

The RAP-B-111-A consists of a 2" x 2.5" rectangle base, SHORT length double socket arm and 6.25" x
2" rectangle plate. The rectangle base contains pre-drilled holes, including the universal AMPS hole
pattern. The 6.25" x 2" rectangle plate contains different combinations of pre-drilled holes which
will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios,
Gimbal Brackets and more. Overall Height: 3.69" Plate Hole Patterns

PRODUCT DIMENSIONS
Overall Height: 3.69"

SOCKET-TO-SOCKET LENGTH
1.75"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
See Drawing

PLATE SIZE
Top Plate: 6.25" x 2"
Bottom Plate: 2" x 2.25"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
High strength composite

PACKAGING TYPE
Retail Bag

WEIGHT
0.84 lbs.
