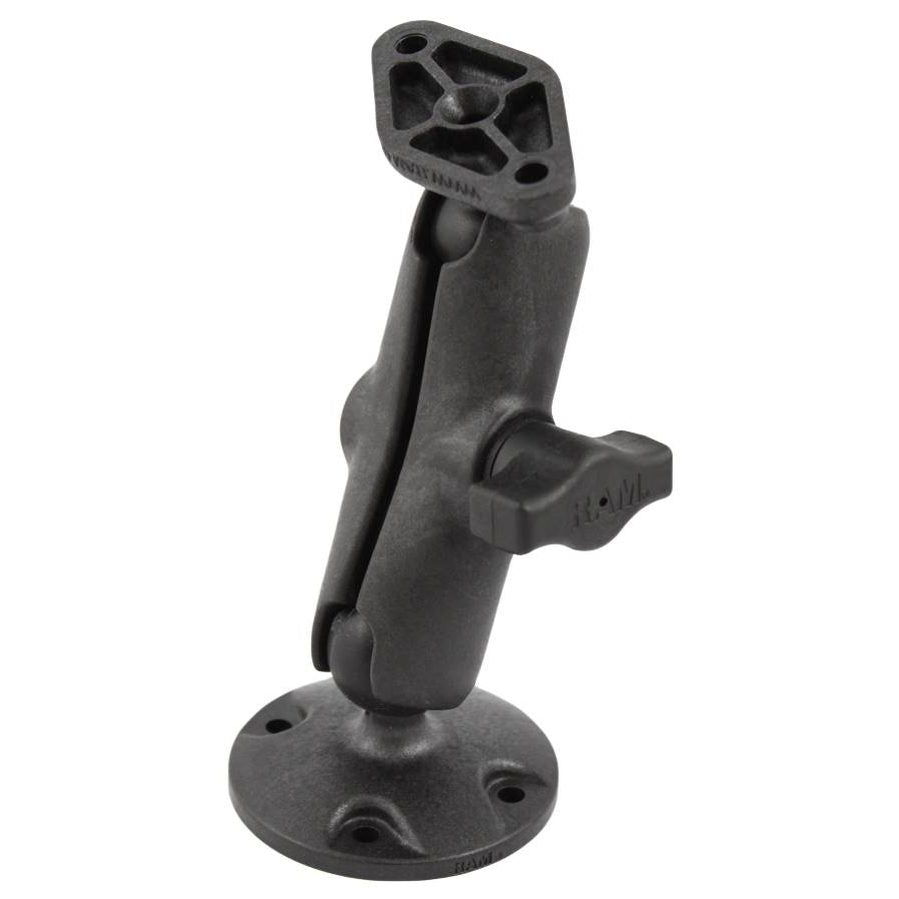

RAM Composite Drill-Down Mount with Diamond

The RAP-B-138U consists of a composite 2.5" diameter round base that contains the universal AMPs
hole pattern, double socket arm and diamond base adapter. The mount is designed with a 1" diameter
patented rubber ball and socket system that has adjustment points at both ends of the double socket
arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found
on the diamond base adapter will connect to most RAM cradles. The included RAM’s patented design
dampens shock and vibration, helping to extend the life of your device.

PRODUCT DIMENSIONS
Overall Height: 5.03"

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
2-Hole AMPS: 1.912"
4-Hole AMPS: 1.181" x 1.496"

PLATE SIZE
Round Plate: 2.5" Diameter
Diamond Plate: 2.43" x 1.31"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.36 lbs.
